FRAME

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_2_211_MAX_650i_LT
Select MODEL:

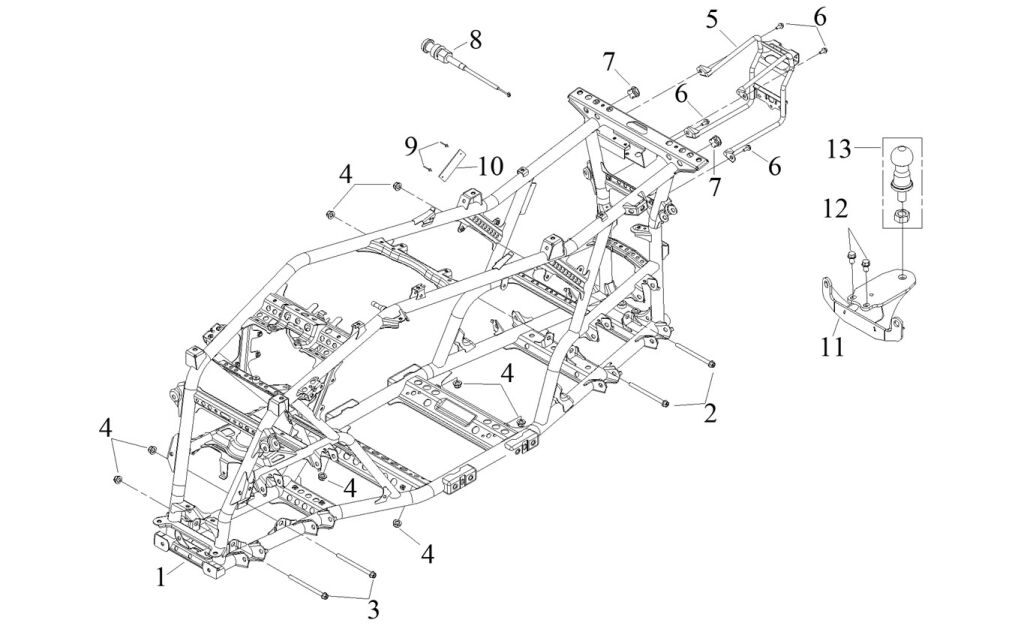

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 71000-A36-030-BK Chassis  1
ON REQUEST
Detail
12 91710-10018-14W Hex. Bolt, Flange  2 € 1,90 € 2
ON REQUEST
11 Trailer Bracket (unavailable) (Item nr. 11) 71403-A13-A11 Trailer Bracket (unavailable)  1 € 133,88 € 162
ON REQUEST
10 71237-A27-000 VIN Plate  1 € 3,80 € 5
ON REQUEST
9 91835-A01-000 Pulling Nail  2 € 2,48 € 3
ON REQUEST
8 Cable, seat (Item nr. 8) 31240-A27-000 Cable, seat  1 € 9,09 € 11
IN STOCK
7 93612-A27-000 Cap, pipe  2 € 1,90 € 2
ON REQUEST
6 Hex Waser Face Bolt (Item nr. 6) 91700-08012-12G Hex Waser Face Bolt  4 € 2,48 € 3
IN STOCK
5 71264-A27-000 Fixing Bracket, rear pumper  1 € 38,02 € 46
ON REQUEST
4 92130-10S-14G-1 Nut, Insert Lock  8
ON REQUEST
Detail
3 91700-10136-14C Hex. Bolt, Flange  2 € 3,55 € 4
IN STOCK
2 Hex. Bolt, Flange (Item nr. 2) 91700-10095-14G Hex. Bolt, Flange  2 € 3,31 € 4
ON REQUEST
13 HITCH BALL ASSY (Item nr. 13) 71402-A01-000 HITCH BALL ASSY  1 € 30,58 € 37
IN STOCK IN 5 days
Product Code ACCESS_2_211_MAX_650i_LT
Select BRAND: ACCESS
PARTS CATEGORY: FRAME PARTS
Select TYPE: ACCESS MAX
Select MODEL: MAX 650 LT EFI
