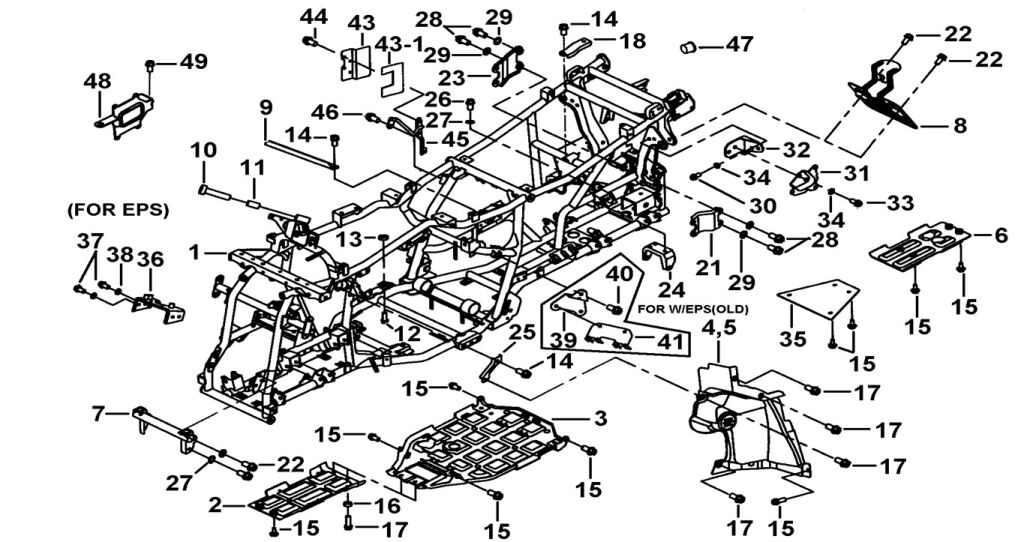

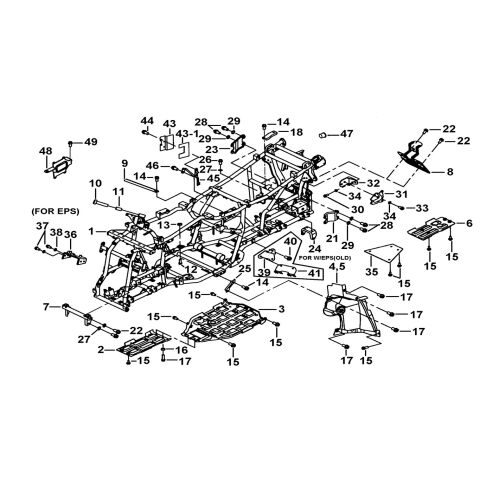

FRAME

TGB
  • Manufacturer  TGB
  • Product Code  TGB_2_204_FBH-HDLE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
48 511379 BRACKET

FOR EPS "B"

1 € 28,51 € 35
ON REQUEST
07 BRACKET (Item nr. 07) 511315 BRACKET  1 € 20,08 € 24
ON REQUEST
49 BOLT (Item nr. 49) S21809 BOLT

FOR EPS "B"

1 € 2,40 € 3
IN STOCK
47 PLUG CAP (Item nr. 47) 512072 PLUG CAP  2 € 2,40 € 3
IN STOCK
46 BOLT, FLANGE M8X16 (Item nr. 46) S20817 BOLT, FLANGE M8X16  1 € 2,40 € 3
IN STOCK
44 BOLT, FLANGE M6X16 (Item nr. 44) GA555SC05 BOLT, FLANGE M6X16  1 € 2,40 € 3
IN STOCK
39 CERTIFIER BRACKET (Item nr. 39) 517950 CERTIFIER BRACKET

←003566

1 € 8,68 € 11
IN STOCK
38 SPRING WASHER (Item nr. 38) GA556WS04 SPRING WASHER

FOR W/EPS

4 € 2,40 € 3
IN STOCK
37 BOLT, FLANGE (Item nr. 37) S20814 BOLT, FLANGE

FOR W/EPS

4 € 2,40 € 3
IN STOCK
18 511318 BRACKET  1 € 3,97 € 5
ON REQUEST
21 REAR DIFFERENTIAL BRACKET, LH. (Item nr. 21) 517948 REAR DIFFERENTIAL BRACKET, LH.

FOR WHEEL BRAKE

1 € 18,93 € 23
IN STOCK
23 REAR DIFFERENTIAL BRACKET, RH. (Item nr. 23) 517953 REAR DIFFERENTIAL BRACKET, RH.

FOR WHEEL BRAKE

1 € 7,69 € 9
IN STOCK
45 511367 BRACKET  1 € 16,45 € 20
ON REQUEST
43.1 511371 HEAT INSULATION  1 € 1,98 € 2
ON REQUEST
41 517998 BRACKET

←003566

1 € 6,36 € 8
ON REQUEST
36 511369 BRACKET, EPS

FOR W/EPS

1 € 34,79 € 42
ON REQUEST
35 511370 PROTECTOR COVER  1 € 25,70 € 31
ON REQUEST
32 517999 BRACKET

FOR WHEEL BRAKE

1 € 9,50 € 11
ON REQUEST
31 517954 MOTOR BRACKET

FOR WHEEL BRAKE

1 € 8,18 € 10
ON REQUEST
25 517969 FRONT INTERNAL FENDER  1 € 5,62 € 7
ON REQUEST
24 REAR DIFFERENTIAL BRACKET(UPPER) (Item nr. 24) 517972 REAR DIFFERENTIAL BRACKET(UPPER)

FOR WHEEL BRAKE

1 € 17,93 € 22
IN STOCK IN 6 days
30 BOLT, SOCKET M8X20L (Item nr. 30) S72805 BOLT, SOCKET M8X20L

FOR WHEEL BRAKE

2 € 2,40 € 3
IN STOCK
10 PIN, STEERING LOCK (Item nr. 10) 511953 PIN, STEERING LOCK  1 € 7,93 € 10
ON REQUEST
09 SEAT STEADY, FRONT (Item nr. 09) 511950 SEAT STEADY, FRONT  1 € 5,95 € 7
IN STOCK
08 BRACKET ASSY., NUMBER-PLATE (Item nr. 08) 511991 BRACKET ASSY., NUMBER-PLATE  1 € 29,01 € 35
IN STOCK
06 511986-M1 PROTECTOR, REAR (PLASTIC)

OPTION

1 € 15,21 € 18
ON REQUEST
05 FRONT INTERNAL FENDER, RH. (Item nr. 05) 511994 FRONT INTERNAL FENDER, RH.  1 € 40,58 € 49
IN STOCK
04 FRONT INTERNAL FENDER, LH (Item nr. 04) 511301 FRONT INTERNAL FENDER, LH  1 € 40,58 € 49
ON REQUEST
02 PROTECTOR, FRONT (Item nr. 02) 511394 PROTECTOR, FRONT

OPTION

1 € 22,15 € 27
IN STOCK
01A 511319 MAIN FRAME

FOR W/O EPS

1 € 1 186,69 € 1 436
ON REQUEST
11 SPRING, STEERING LOCK (Item nr. 11) 511946 SPRING, STEERING LOCK  1 € 2,40 € 3
IN STOCK
12 BOLT, FLANGE (Item nr. 12) S20004 BOLT, FLANGE  1 € 2,40 € 3
IN STOCK
13 NUT (Item nr. 13) GA501NT01 NUT  1 € 2,40 € 3
IN STOCK
29 SPRING WASHER 10X18X2,5 (Item nr. 29) GA556WS06 SPRING WASHER 10X18X2,5

FOR WHEEL BRAKE

4 € 2,40 € 3
IN STOCK
28 BOLT M10X20 (Item nr. 28) S21008 BOLT M10X20

OPTION

4 € 2,40 € 3
IN STOCK
17 BOLT, FLANGE (Item nr. 17) S07601 BOLT, FLANGE  10 € 2,40 € 3
IN STOCK
16 SPACER (Item nr. 16) GA554BS02 SPACER

OPTION

2 € 2,40 € 3
IN STOCK
15 BOLT M6X16L (Item nr. 15) S25602 BOLT M6X16L  16 € 2,40 € 3
IN STOCK
01 511363 MAIN FRAME

FOR W/EPS

1 € 1 213,31 € 1 468
ON REQUEST
Product Code TGB_2_204_FBH-HDLE
PARTS CATEGORY: FRAME PARTS
Select BRAND: TGB
Select TYPE: BLADE 600
Select MODEL: BLADE 600LT E4
