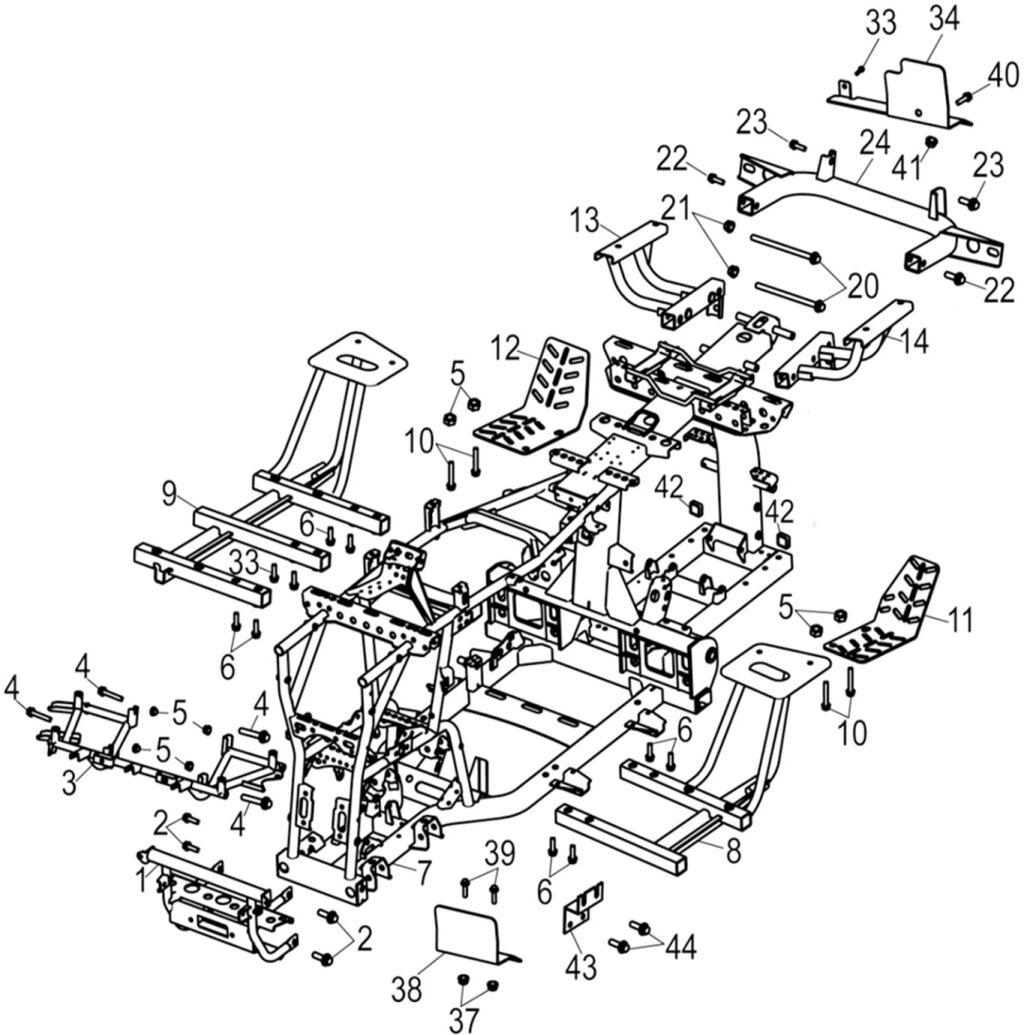

FRAME MOUNTING ASSEMBLY

  • Product Code  LIN_5_V04_Landforce-1000
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
2 Hexagon Flange Bolt M8×1.25×20 (Item nr. 2) 10783 Hexagon Flange Bolt M8×1.25×20  4 € 2,40 € 3
IN STOCK
1 87503 LOWER SUPPORT FRAME OF WATER TANK  1 € 33,47 € 40
ON REQUEST
3 87016 CONNECTING FRAME ON WATER TANK  1 € 22,31 € 27
ON REQUEST
7 87013 FRAME ASSY. (T3 EFI)  1 € 752,73 € 911
ON THE WAY
8 87575 LEFT PEDAL WELDED ASSEMBLY  1 € 55,87 € 68
ON REQUEST
9 87574 RIGHT PEDAL WELDED ASSEMBLY  1 € 55,87 € 68
ON REQUEST
11 87572 REAR LEFT CAGE BAFFLE  1 € 11,16 € 13
ON REQUEST
13 87507 TRESTLE RIGHT  1 € 16,78 € 20
ON REQUEST
14 87506 TRESTLE LEFT  1 € 16,78 € 20
ON REQUEST
20 12214 BOLT M10X1.25×190  2 € 3,39 € 4
ON REQUEST
24 87508 MUFFLER CONNECTION BRACKET  1 € 11,90 € 14
ON REQUEST
34 87502 REAR HEAT INSULATION BAFFLE  1 € 18,60 € 22
ON REQUEST
38 87501 FRONT HEAT INSULATION BAFFLE  1 € 18,60 € 22
ON REQUEST
42 38532 RUBBER COVER 40×40  2 € 0,83 € 1
RE STOCKING
41 Nut M8 (Item nr. 41) 10882 Nut M8  1 € 2,40 € 3
ON THE WAY
4 11101 BOLTM8X45  4 € 2,15 € 3
ON REQUEST
6 10078 BOLT M8X30  8 € 8,02 € 10
ON REQUEST
10 Hexagon Flange Bolt M8×1.25×55 (Item nr. 10) 10780 Hexagon Flange Bolt M8×1.25×55  4 € 9,59 € 12
IN STOCK
12 38720 REAR RIGHT CAGE BAFFLE  1 € 19,17 € 23
ON REQUEST
21 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Item nr. 21) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  2 € 9,59 € 12
IN STOCK
22 BOLT M8X40 (Item nr. 22) 11045 BOLT M8X40  2 € 8,76 € 11
IN STOCK
37 NUTM10X1.25 (Item nr. 37) 11287 NUTM10X1.25  2
IN STOCK
39 BOLT M10X1.5X20 (Item nr. 39) 11020 BOLT M10X1.5X20  2 € 2,40 € 3
IN STOCK
43 87565 ABS CONTROLLERr MOUNTING PLATE  1 € 7,44 € 9
ON REQUEST
Product Code LIN_5_V04_Landforce-1000
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 1000
Select MODEL: Landforce 1000
