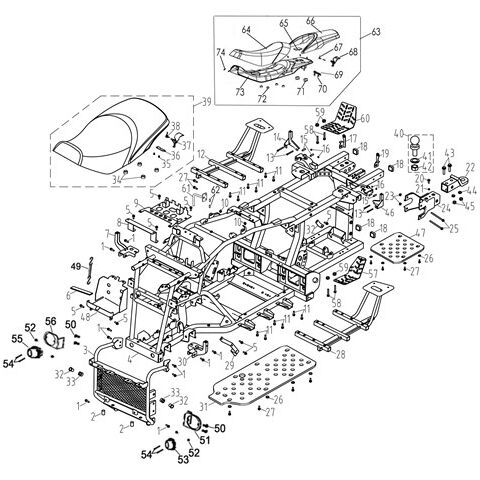

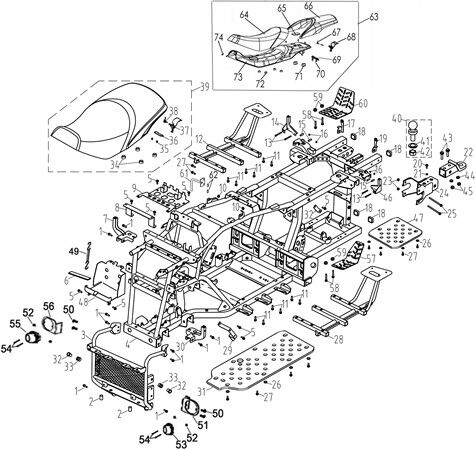

FRAME MOUNTING ASSEMBLY

  • Product Code  LINHAI_2_204_650L_PROMAX
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
74 BOLT M6X12 (Item nr. 74) 10140B BOLT M6X12  8 € 2,40 € 3
IN STOCK
54 10427 Cross Recessed Pan Head Screw M5×35  4 € 8,51 € 10
ON REQUEST
53 TURN INDICATE LIGHT,L,FR (Item nr. 53) 83365 TURN INDICATE LIGHT,L,FR  1 € 41,65 € 50
IN STOCK
52 11877 NUT M5  4
ON REQUEST
51 38543 FRONT INDICATOR LIGHT BRACKET,L（FOR T3）  1 € 13,88 € 17
ON REQUEST
50 11453 Hexagon Flange Bolt M8×30  4 € 2,40 € 3
ON REQUEST
49 TIE，BATTERY（30Ah） (Item nr. 49) 36850 TIE，BATTERY（30Ah）  1 € 3,06 € 4
ON REQUEST
48 38542 BATTERY PACK BOX  1 € 17,19 € 21
ON REQUEST
47 38541 REAR GEAR-BOX UNDERGUARD  1 € 20,58 € 25
ON REQUEST
46 38540 TRESTLE LEFT  1 € 6,69 € 8
ON REQUEST
45 Hex Nut M16 (Item nr. 45) 10874 Hex Nut M16  2 € 2,40 € 3
IN STOCK
44 SPRING 16 (Item nr. 44) 27050 SPRING 16  2 € 2,40 € 3
IN STOCK
43 Hexagon Flange Bolt M16×85 (Item nr. 43) 10865 Hexagon Flange Bolt M16×85  2 € 2,64 € 3
IN STOCK
42 NUT W7/8"-14 (Item nr. 42) 11218 NUT W7/8"-14  1 € 12,81 € 16
IN STOCK
41 10816 Spring Lock Washer 22  1 € 8,43 € 10
ON REQUEST
40 PULL THE BALL (Item nr. 40) 35950 PULL THE BALL  1 € 26,86 € 32
ON THE WAY
39 38539 SEAT（WHOLE）  1 € 107,44 € 130
ON THE WAY
55 TURN INDICATE LIGHT,R,FR (Item nr. 55) 83364 TURN INDICATE LIGHT,R,FR  1 € 41,82 € 51
IN STOCK
56 38544 FRONT INDICATOR LIGHT BRACKET,R（FOR T3）  1 € 13,88 € 17
ON REQUEST
57 38719 REAR LEFT CAGE BAFFLE  1 € 17,27 € 21
ON THE WAY

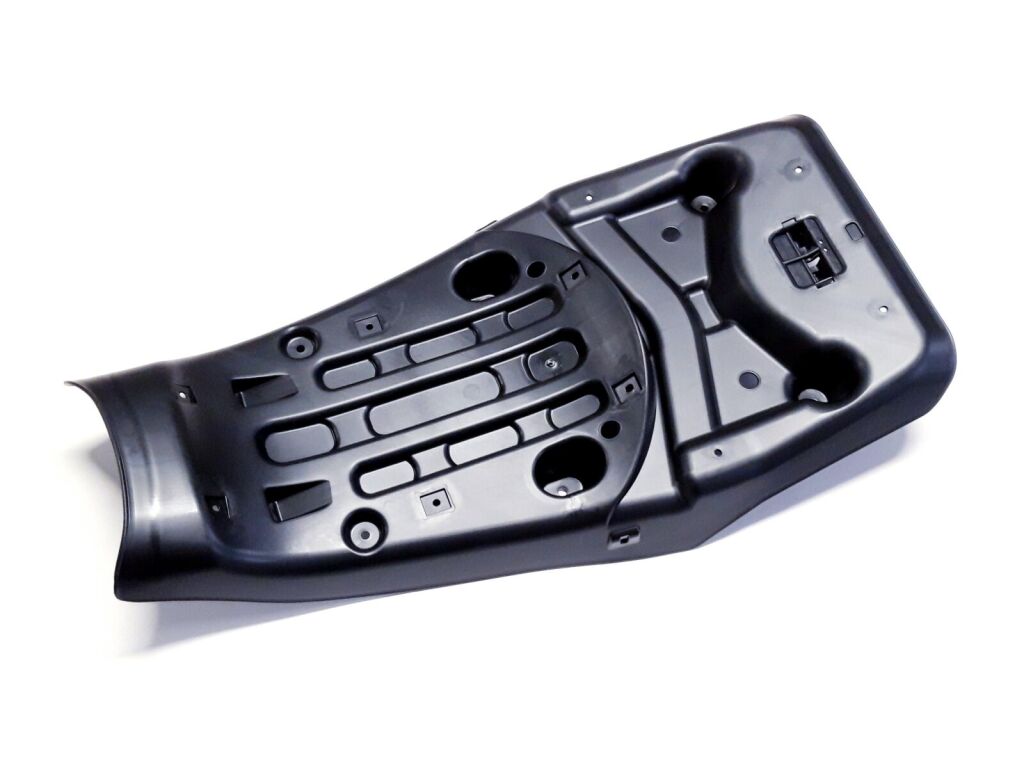

73 SEAT COVER (Item nr. 73) 38740 SEAT COVER  1 € 41,32 € 50
IN STOCK
72 CUSHION (Item nr. 72) 25042 CUSHION  4 € 2,40 € 3
IN STOCK
71 RUBBER，SEAT (Item nr. 71) 70445 RUBBER，SEAT  2 € 9,34 € 11
IN STOCK
70 SCREW ST4.2X13 (Item nr. 70) 11222 SCREW ST4.2X13  2 € 8,02 € 10
ON REQUEST
69 BAFFLE.SEAT (Item nr. 69) 70803 BAFFLE.SEAT  1 € 11,74 € 14
IN STOCK
68 HOOK BRACKET，SEAT LOCK (Item nr. 68) 70788 HOOK BRACKET，SEAT LOCK  1 € 6,69 € 8
ON REQUEST
67 SPRING (Item nr. 67) 70802 SPRING  1 € 2,40 € 3
IN STOCK
66 REAR SEAT (Item nr. 66) 38739 REAR SEAT  1 € 51,40 € 62
IN STOCK

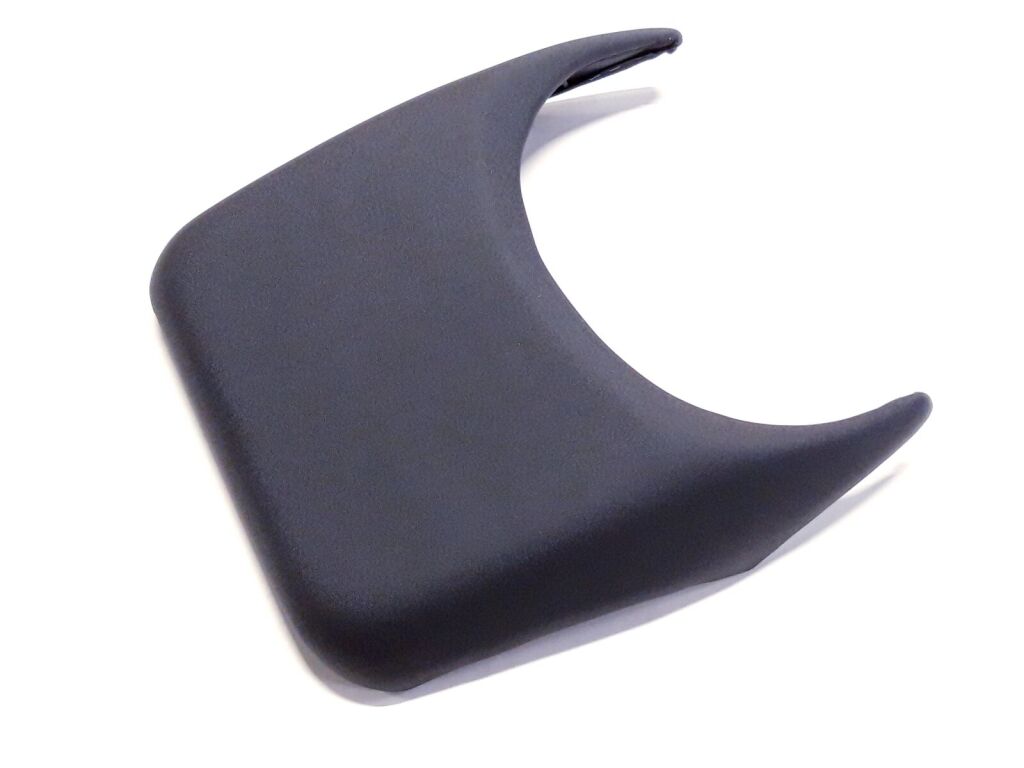

65 36414 LITTLE COVER  1 € 10,25 € 12
ON REQUEST
64 38738 FRONT SEAT  1 € 71,24 € 86
ON REQUEST
63 38737 SEAT(SPLIT)  1 € 110,74 € 134
ON REQUEST
62 24217 right washer  2 € 4,13 € 5
ON REQUEST
61 38721 RIGHT PLATE ANTI-HOT STEEL CIRCLE  1 € 5,54 € 7
ON REQUEST
60 38720 REAR RIGHT CAGE BAFFLE  1 € 19,17 € 23
ON REQUEST
59 Nut M8 (Item nr. 59) 10882 Nut M8  4 € 2,40 € 3
IN STOCK IN 21 days
58 11643 BOLT M8X60  4
ON REQUEST
15 36445 SLEEVE  4 € 18,02 € 22
ON REQUEST
14 38530 TRESTLE RIGHT  1 € 6,69 € 8
ON REQUEST
13 25056 BOLT M8X70  4 € 9,59 € 12
ON REQUEST
12 38529 RIGHT PEDAL WELDED ASSEMBLY  1 € 107,19 € 130
ON REQUEST
11 10078 BOLT M8X30  12 € 8,02 € 10
ON REQUEST
10 Spring Nut ST4.8 (Item nr. 10) 22346 Spring Nut ST4.8  2 € 2,40 € 3
ON THE WAY
9 38528 ELECTRICAL MOUNTING PANEL  1 € 9,17 € 11
ON REQUEST
8 38527 SPEEDOMETER BRACKET FOR UNDER COVER  1 € 7,19 € 9
ON REQUEST
7 38526 TRESTLE R（FOR FLIPPING）  1 € 8,35 € 10
ON REQUEST
6 20319 BATTERY FENDER 160X30X5  3 € 7,19 € 9
ON REQUEST
6 38525 BATTERY BOX BUFFER SPONGE  4
ON REQUEST
5 Hexagon Flange Bolt M6×20 (Item nr. 5) 11459 Hexagon Flange Bolt M6×20  8 € 2,23 € 3
IN STOCK
4 38524 FRAME ASSY.（T3 EFI）  1 € 599,17 € 725
IN STOCK
3 38523 BUMPER BRACKET  1 € 71,07 € 86
ON REQUEST
2 Supporting rubber ring under water tank (Item nr. 2) 36054 Supporting rubber ring under water tank  2 € 9,59 € 12
IN STOCK
17 38531 REAR GUARD COVER RIGHT MOUNTING BRACKET  1 € 3,31 € 4
ON REQUEST
18 38532 RUBBER COVER 40×40  4 € 0,83 € 1
RE STOCKING
19 38533 REAR GUARD COVER LEFT MOUNTING BRACKET  1 € 3,31 € 4
ON REQUEST
35 SCREW ST4.2X13 (Item nr. 35) 10178 SCREW ST4.2X13  2 € 2,40 € 3
IN STOCK
33 Fuel tank buffer sleeve (Item nr. 33) 36064 Fuel tank buffer sleeve  2 € 9,01 € 11
IN STOCK
32 Fuel tank buffer sleeve (Item nr. 32) 36065 Fuel tank buffer sleeve  2 € 4,13 € 5
IN STOCK
31 38538 PLASTIC PLANT  1 € 36,36 € 44
ON REQUEST
30 38537 TRESTLE L（FOR FLIPPING）  1 € 8,35 € 10
ON REQUEST
29 38536 MOUNTING BRACKET FOR COOLING KETTLE  1 € 5,54 € 7
ON REQUEST
28 38535 LEFT PEDAL WELDED ASSEMBLY  1 € 107,19 € 130
ON REQUEST
27 11194 BOLT M6X18  18 € 8,76 € 11
ON REQUEST
26 WASHER 6 (Item nr. 26) 20331 WASHER 6  16 € 2,40 € 3
ON REQUEST
25 11876 BOLT M10X1.25×135  2 € 1,40 € 2
ON REQUEST
24 38534 TOWING HOOK THE BALL AFTER MOUNTING BRACKET  1 € 41,07 € 50
ON REQUEST
23 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Item nr. 23) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  2 € 9,59 € 12
IN STOCK
22 THE TRACTION BALL WELDING COMPONENTS (Item nr. 22) 35951 THE TRACTION BALL WELDING COMPONENTS  1 € 24,88 € 30
IN STOCK
20 Hexagon Flange Bolt M8×1.25×20 (Item nr. 20) 10783 Hexagon Flange Bolt M8×1.25×20  1 € 2,40 € 3
IN STOCK
1 Hexagon Flange Bolt M8X25 (Item nr. 1) 10059 Hexagon Flange Bolt M8X25  10 € 2,40 € 3
IN STOCK
Product Code LINHAI_2_204_650L_PROMAX
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 650
Select MODEL: 650L PROMAX T3b EFI
