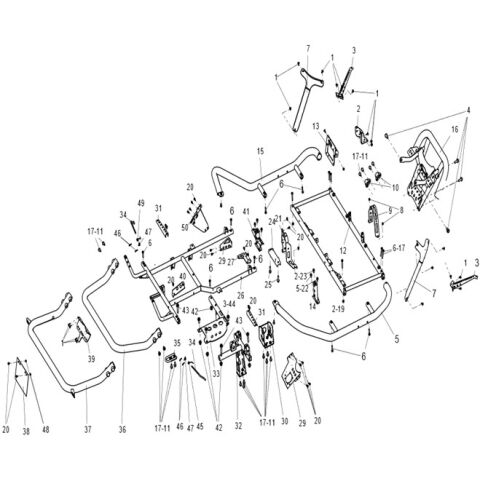

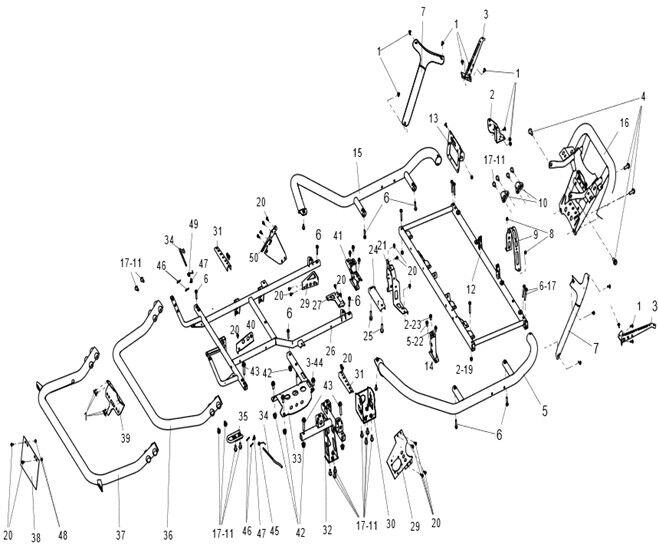

FRAME BODY PARTS.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_237_SX20T
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
50 S11-C038000-DB0-00 Unnamed  1 € 6,84 € 8
ON REQUEST
36 S11-C001600-FB0-00 REAR BUMPER,BLACK  1 € 106,52 € 129
ON REQUEST
35 S11-C003600-DB0-00 REAR TOWING - EPA  1 € 6,18 € 7
ON REQUEST
34 S11-C301000-DB0-00 LOCK ROD  2 € 13,46 € 16
ON REQUEST
33 S11-C002700-DB0-00 REAR ALXE UPPER BRACKET  1 € 37,86 € 46
ON REQUEST
32 S11-C002800-DB0-00 ENGINE REAR BRACKET  1 € 45,07 € 55
ON REQUEST
31 S11-C003200-DB0-00 REAR LAMP BRACKET  2 € 2,27 € 3
ON REQUEST
30 S11-C002600-DB0-00 ENGINE LEFT SUPPORT  1 € 18,17 € 22
ON REQUEST
29 S11-C004200-DB0-00 WATER PUMP BRACKET  1 € 2,95 € 4
ON REQUEST
29 S10-C001700-DB0-00 CHARGING SOCKET BRACKET  1 € 7,71 € 9
ON REQUEST
27 S11-C003300-DB0-00 LEFT KETTLE BRACKET  1 € 2,27 € 3
ON REQUEST
26 S11-C001200-DB0-00 REAR SHELF BRACKET  1 € 112,16 € 136
ON REQUEST
36 S11-C001600-FR0-00 REAR BUMPER,RED  1 € 106,52 € 129
ON REQUEST
37 S11-C003400-FB0-00 REAR BUMPER,BLACK,EU  1 € 109,51 € 133
ON REQUEST
49 U06-C303300-000-00 LOCK ROD LEFT SPRING  1 € 2,18 € 3
ON REQUEST
48 NUT M6 (Item nr. 48) GBT061771002 NUT M6  2 € 2,18 € 3
IN STOCK
47 S11-C303000-000-00 HANDLE TORSION SPRING  2 € 2,18 € 3
ON REQUEST
46 U06-C303900-000-00 R PIN  4 € 2,18 € 3
ON REQUEST
45 U06-C303400-000-00 LOCK ROD RIGHT SPRING  1 € 2,18 € 3
ON REQUEST
44 GBT005789045 HEXAGON FLANGE BOLT M12×1.25×25  3 € 2,18 € 3
ON REQUEST
43 BG057890-12055-ZA1 HEXAGON FLANGE BOLT M12×1.25×55  3 € 2,18 € 3
ON REQUEST
42 NUT M12×1.25 (Item nr. 42) GBT061832010 NUT M12×1.25  5 € 2,18 € 3
IN STOCK
41 S11-C002900-DB0-00 SEAT LEFT SUPPORT  1 € 8,36 € 10
ON REQUEST
40 S11-C003100-DB0-00 AIR FILTER BRACKET  1 € 2,42 € 3
ON REQUEST
37 S11-C003400-FR0-00 REAR BUMPER,RED,EU  1 € 109,51 € 133
ON THE WAY
25 BOLT M10×1.25×35 (Item nr. 25) GBT005789028 BOLT M10×1.25×35  2 € 2,18 € 3
IN STOCK
24 S11-C002500-DB0-00 LOWER CONNECTION SEAT  1 € 29,52 € 36
ON REQUEST
23 HEXAGON FLANGE BOLT M10×1.25×16 (Item nr. 23) GBT005789024 HEXAGON FLANGE BOLT M10×1.25×16  2 € 2,18 € 3
IN STOCK
10 S11-C002200-DB0-00 FRONT AXLE RIGHT SEAT  2 € 13,68 € 17
ON REQUEST
9 S11-C005000-DB0-00 WATER PIPE TRANSFER BRACKET  1 € 8,17 € 10
ON REQUEST
8 NUT M6 (Item nr. 8) GBT061831002 NUT M6  2 € 2,18 € 3
IN STOCK
7 S11-C001900-FR0-00 FRONT TRIDENT BRACKET, RED  2 € 19,63 € 24
ON REQUEST
7 S11-C001900-FB0-00 FRONT TRIDENT BRACKET, BLACK  2 € 10,91 € 13
ON REQUEST
6 HEXAGON FLANGE BOLT M8×40 (Item nr. 6) GBT005789019 HEXAGON FLANGE BOLT M8×40  8 € 2,18 € 3
IN STOCK
5 S11-C001500-FR0-00 RIGHT GUARD BAR, RED  1 € 115,49 € 140
ON THE WAY
5 S11-C001500-FB0-00 RIGHT GUARD BAR, BLACK  1 € 115,49 € 140
ON REQUEST
4 BOLT M12×1.25×30 (Item nr. 4) GBT005789054 BOLT M12×1.25×30  4 € 2,18 € 3
ON REQUEST
3 S11-C001700-DB0-00 HEADLIGHT BRACKET  2 € 5,97 € 7
ON THE WAY
2 S11-C039000-DB0-00 WINCH RELAY BRACKET  1 € 3,64 € 4
ON REQUEST
11 GBT005789113 Hexagonal flange bolt M10 × 1.25 × 20  19 € 2,18 € 3
ON REQUEST
12 S11-C001100-DB0-00 SEAT BRACKET  1 € 102,44 € 124
ON REQUEST
22 Bolt M8×16 (Item nr. 22) GBT005789014 Bolt M8×16  6 € 2,18 € 3
IN STOCK
21 S11-C005100-DB0-00 WATER PIPE BRACKET,REAR  1 € 8,95 € 11
ON REQUEST
20 Bolt M6×12 (Item nr. 20) GBT005789006 Bolt M6×12  21 € 2,18 € 3
IN STOCK
19 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 19) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  2 € 2,18 € 3
IN STOCK
17 GBT005789061 BOLT M8×55  6 € 2,18 € 3
ON REQUEST
16 S11-C001300-FR0-00 FRONT BUMPER,RED  1 € 119,31 € 144
ON THE WAY
16 S11-C001300-FB0-00 FRONT BUMPER, BLACK  1 € 119,31 € 144
ON THE WAY
15 S11-C001400-FR0-00 LEFT GUARD BAR, RED  1 € 115,49 € 140
ON THE WAY
15 S11-C001400-FB0-00 LEFT GUARD BAR, BLACK  1 € 115,49 € 140
ON REQUEST
14 S11-C003000-DB0-00 SEAT RIGHT SUPPORT  1 € 6,28 € 8
ON REQUEST
13 S11-C002400-DB0-00 DISPLAY BRACKET  1 € 8,95 € 11
ON REQUEST
1 Inner hexagon screws M6×1.6 (Item nr. 1) T03000007002 Inner hexagon screws M6×1.6  21 € 2,18 € 3
IN STOCK
Product Code SEGWAY_2_237_SX20T
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX20T
