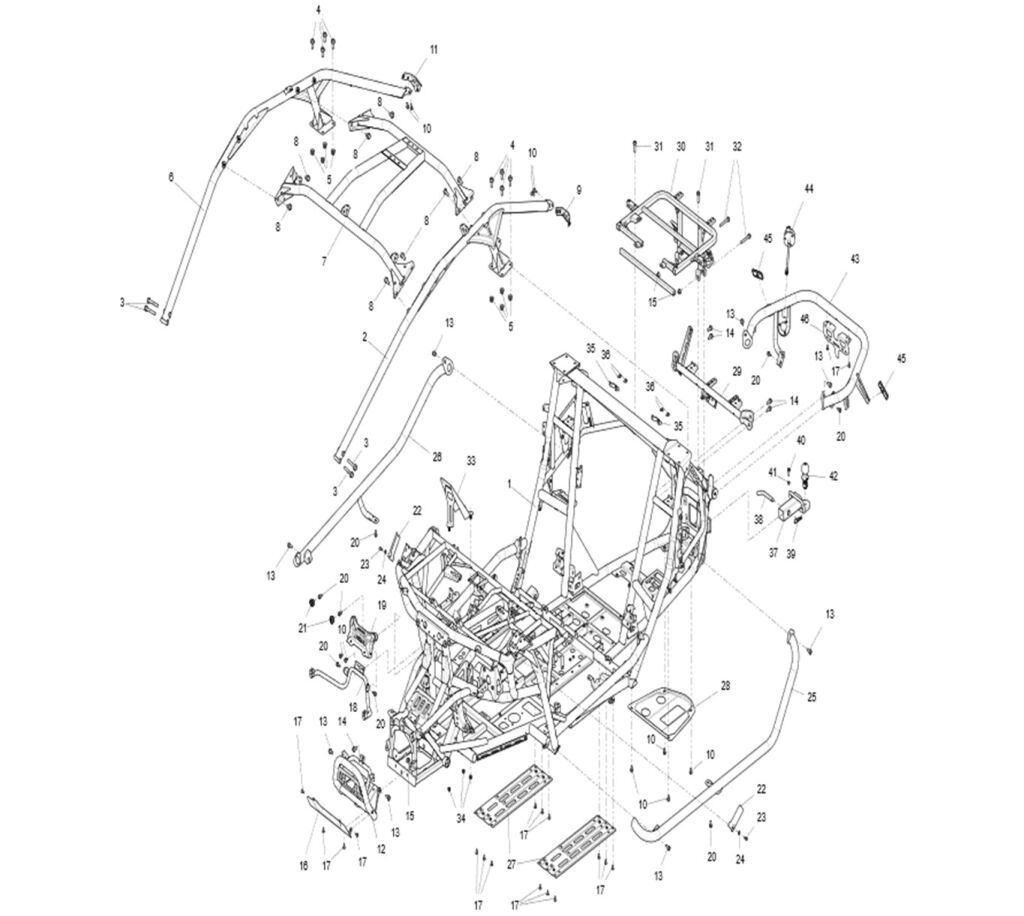

FRAME ASSEMBLY (EU NARROW VEHICLE VERSION)

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_229_UTV1000F-S3
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

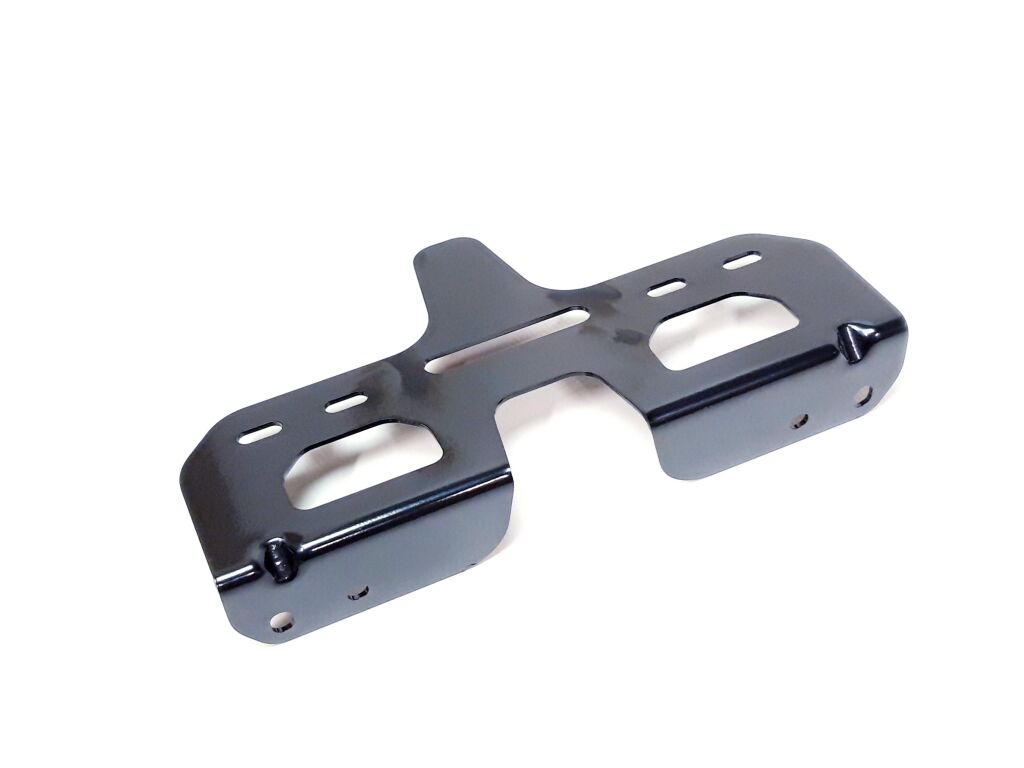

46 REAR LICENSE PLATE LIGHT BRACKET (Item nr. 46) S01C02505002 REAR LICENSE PLATE LIGHT BRACKET  1 € 14,13 € 17
IN STOCK
35 S05C02812002 REAR CARGO BOX UPPER BRACKET  2 € 11,57 € 14
ON REQUEST
34 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Item nr. 34) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  3 € 2,18 € 3
IN STOCK
33 S01C05400002 FRONT PASSENGER SEAT PEDAL ASSEMBLY  1 € 16,86 € 20
ON REQUEST
32 HEXAGON FLANGE BOLT M10×1.25×75 (Item nr. 32) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  2 € 2,48 € 3
IN STOCK IN 21 days
31 HEXAGON FLANGE BOLT M10×1.25×40 (Item nr. 31) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  2 € 2,48 € 3
IN STOCK
30 S05C02800002 ENGINE UPPER BRACKET ASSEMBLY  1 € 56,86 € 69
ON REQUEST
29 S05B00300002 SAFETY BELT FIXING BRACKET COMBINATION  1 € 54,88 € 66
ON REQUEST

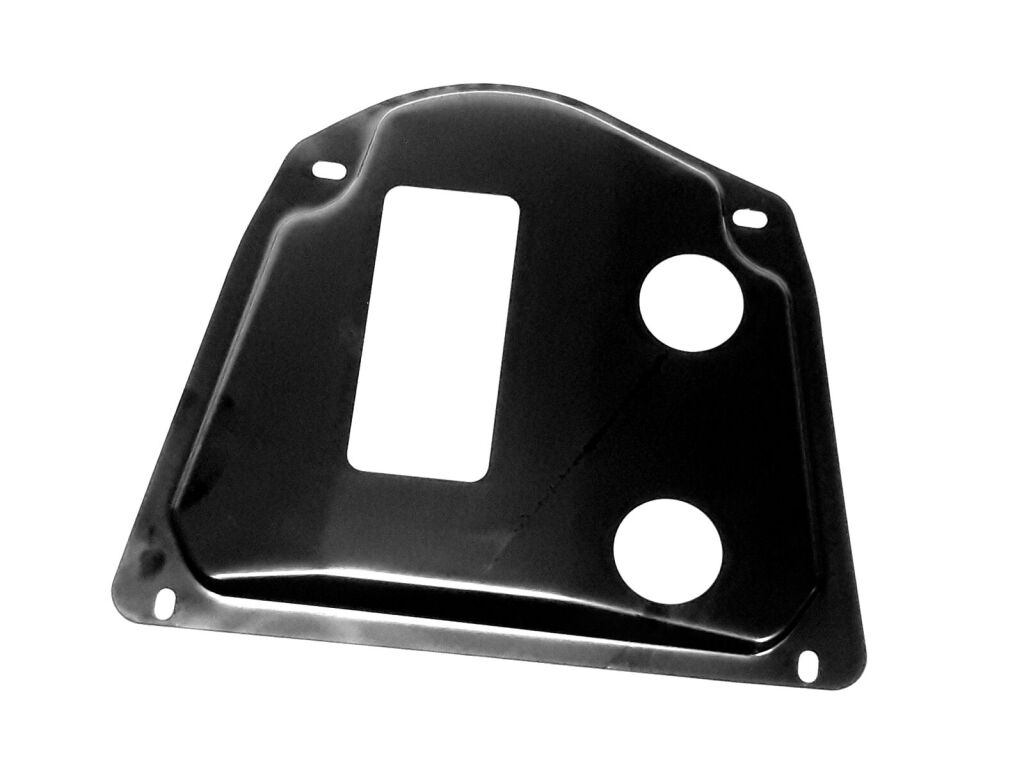

28 ENGINE LOWER GUARD (Item nr. 28) S05C05101002 ENGINE LOWER GUARD  1 € 20,66 € 25
IN STOCK
27 S01B37200002 MIDDLE BOTTOM GUARD COMBINATION(BLACK)  2 € 30,91 € 37
ON REQUEST
26 S01C02400003 RIGHT GUARD BAR (GREEN)  1 € 147,69 € 179
IN STOCK
26 S01C02400002 RIGHT GUARD BAR (RED)  1 € 111,40 € 135
IN STOCK
25 S01C02300003 LEFT GUARD BAR(GREEN)  1 € 111,40 € 135
IN STOCK
25 S01C02300002 LEFT GUARD BAR(RED)  1 € 111,40 € 135
ON REQUEST
36 Bolt M6×16 (Item nr. 36) GBT005789007 Bolt M6×16  4 € 2,18 € 3
IN STOCK

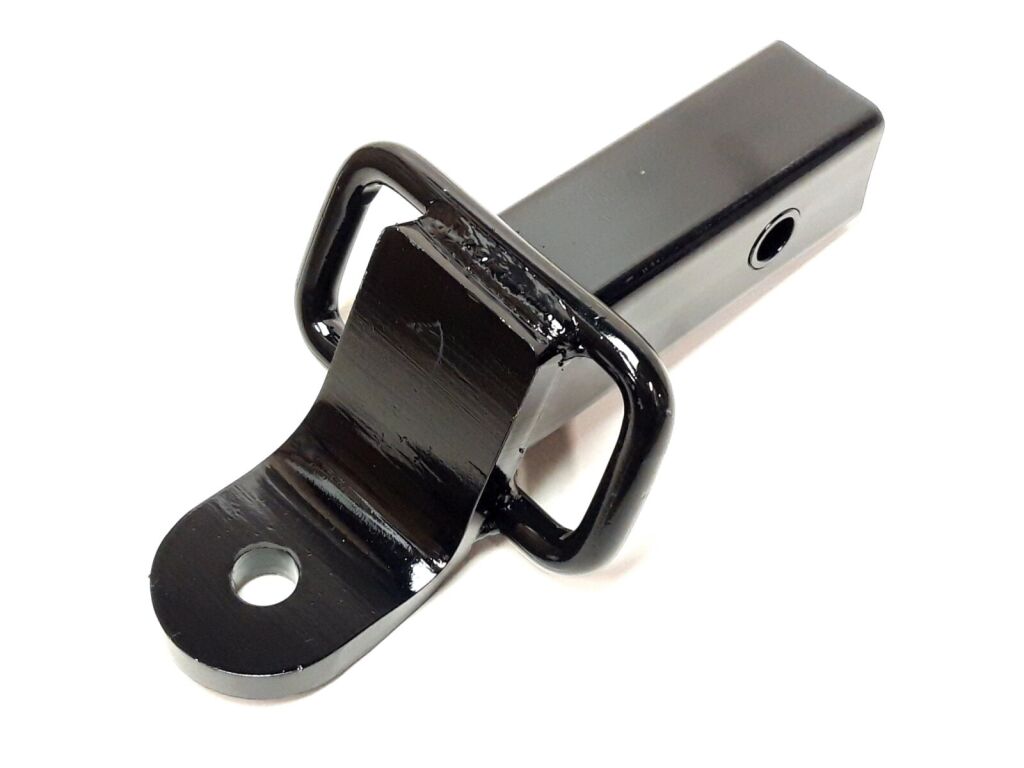

37 TRAILER WELDING COMBINATION GENERAL TYPE) (Item nr. 37) S01C20300002 TRAILER WELDING COMBINATION GENERAL TYPE)  1 € 45,79 € 55
IN STOCK
45 SQUARE REFLECTOR (Item nr. 45) T10000001003 SQUARE REFLECTOR  2 € 2,18 € 3
IN STOCK
44 U01M04500003 LOF TRAILER POWER SOCKET  1 € 38,51 € 47
ON REQUEST
44 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE) (Item nr. 44) U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 € 23,11 € 28
IN STOCK
43 S01C07400003 REAR BUMPER（GREEN，NARROW VEHICLE，LOF） (unavailable)  1
ON REQUEST
Detail
43 S01C07400002 REAR BUMPER（RED，NARROW VEHICLE，LOF）  1 € 136,69 € 165
ON REQUEST
43 S01C06600003 R/B S05-C025500-FG0-01 REAR BUMPER（GREEN，NARROW VEHICLE）  1 € 138,18 € 167
ON REQUEST
43 S01C06600002 R/B S05-C025500-FR0-01 REAR BUMPER（RED，NARROW VEHICLE）  1 € 138,18 € 167
IN STOCK

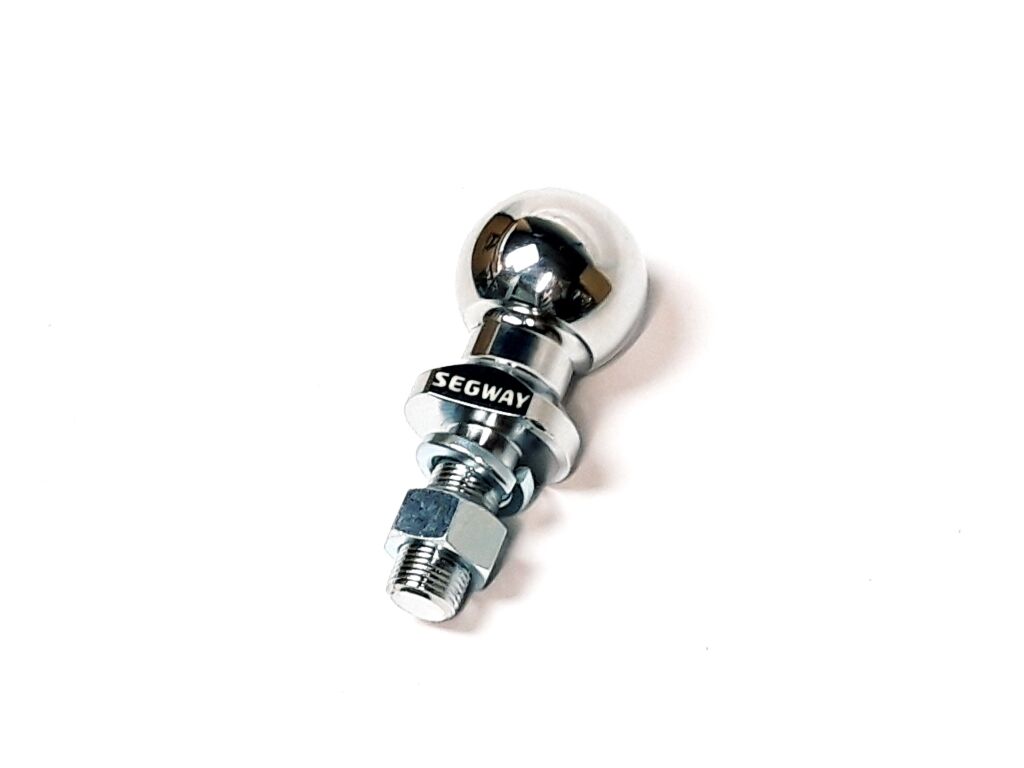

42 TRAILER BALL（EU） (Item nr. 42) U01R21100001 TRAILER BALL（EU）  1 € 47,19 € 57
IN STOCK
41 GBT006170004 TYPE 1 HEXAGON NUT M8  1 € 2,48 € 3
ON REQUEST
40 Hexagon flange bolt M8×25 (Item nr. 40) GBT005789016 Hexagon flange bolt M8×25  1 € 2,18 € 3
IN STOCK
39 LOCKING PIN 12 (Item nr. 39) QCT000623002 LOCKING PIN 12  1 € 2,48 € 3
IN STOCK
38 U01 TOWING HOOK BOLT 16 (Item nr. 38) U01R21300002 U01 TOWING HOOK BOLT 16  1 € 15,12 € 18
IN STOCK
37 U01R21200004 TRAILER WELDING COMBINATION FOR LOF  1 € 44,46 € 54
ON REQUEST
24 GBT000971001 GASKET 8  2 € 2,18 € 3
ON REQUEST
23 GBT000701013 HEXAGON SOCKET HEAD CAP SCREW M8×12  2 € 2,48 € 3
ON REQUEST
22 S05B30050003 A-PILLAR DECORATION（GREEN）  2 € 41,90 € 51
ON REQUEST
10 Bolt M8×16 (Item nr. 10) GBT005789014 Bolt M8×16  4 € 2,18 € 3
IN STOCK

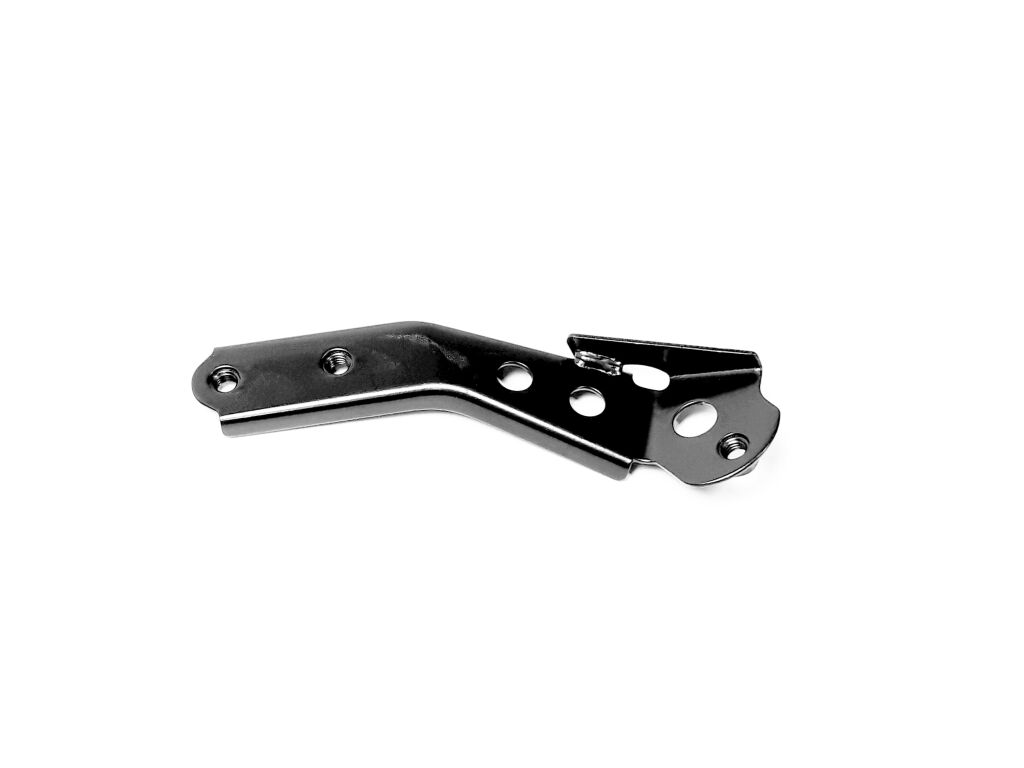

9 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX (Item nr. 9) S01C03700002 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX  1 € 12,40 € 15
IN STOCK
8 GBT005789045 HEXAGON FLANGE BOLT M12×1.25×25  8 € 2,18 € 3
ON REQUEST
7 S01C10500003 TOP BEAM UPPER (GREEN)  1 € 257,69 € 312
ON REQUEST

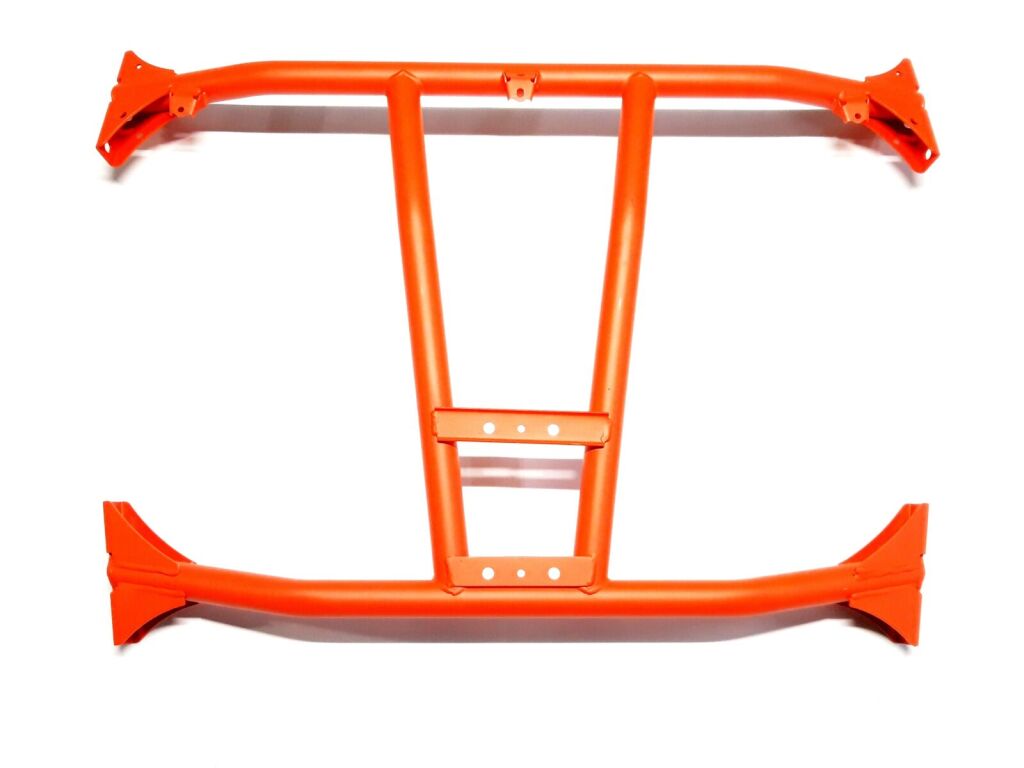

7 TOP BEAM UPPER（RED） (Item nr. 7) S01C10500002 TOP BEAM UPPER（RED）  1 € 257,69 € 312
IN STOCK
6 S01C10300003 TOP BEAM RIGHT(GREEN)  1 € 287,27 € 348
IN STOCK
6 S01C10300002 R/B S03-C113000-FR0-01 TOP BEAM RIGHT(RED)  1 € 216,78 € 262
IN STOCK
5 NUT M12×1.25 (Item nr. 5) GBT061832002 NUT M12×1.25  8 € 2,18 € 3
IN STOCK
4 BOLT M12×1.25×30 (Item nr. 4) GBT005789054 BOLT M12×1.25×30  8 € 2,18 € 3
ON REQUEST
3 HEX FLANGE BOLT M12×1.25×75 (Item nr. 3) GBT005789102 HEX FLANGE BOLT M12×1.25×75  4 € 2,48 € 3
IN STOCK
2 S01C10100003 TOP BEAM LEFT(GREEN)  1 € 216,86 € 262
IN STOCK
2 S01C10100002 TOP BEAM LEFT(RED)  1 € 216,86 € 262
IN STOCK
1 S05B01000003 FRAME (GREEN)  1 € 3 867,36 € 4 679
ON REQUEST
11 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX (Item nr. 11) S01C03800002 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX  1 € 12,40 € 15
IN STOCK

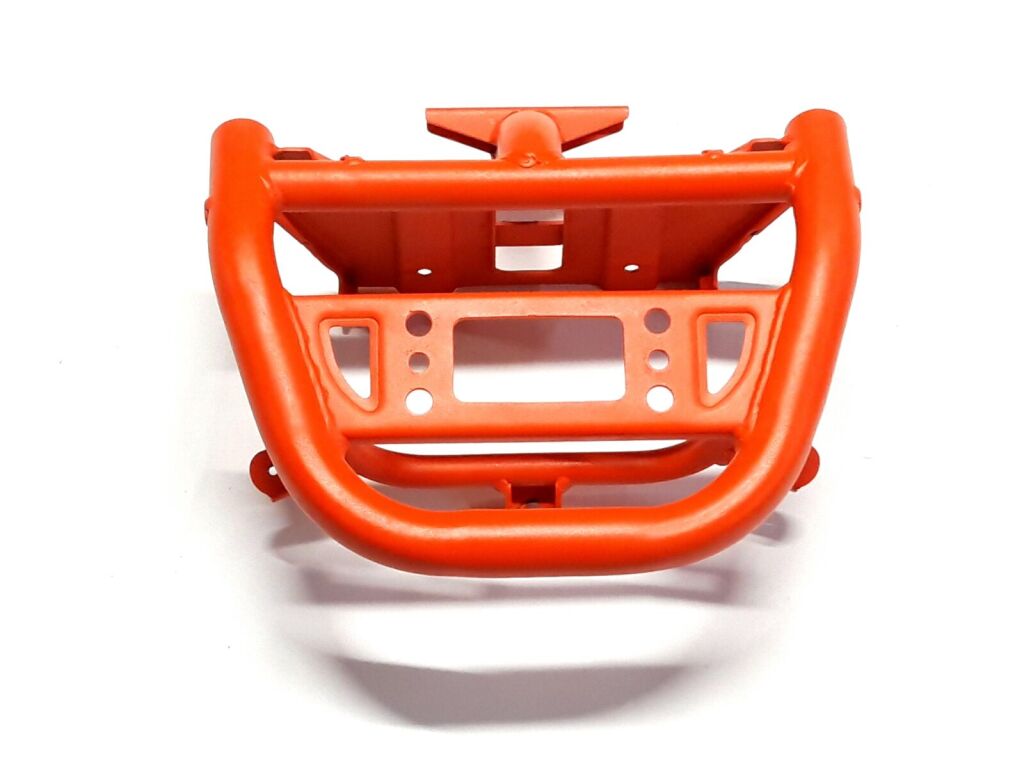

12 FRONT BUMPER (RED) (Item nr. 12) S01C00600002 FRONT BUMPER (RED)  1 € 120 € 145
IN STOCK
22 S05B30050002 A-PILLAR DECORATION（RED）  2 € 6,20 € 8
ON REQUEST
21 S01H21000001 DECORATIVE PLUG  2 € 2,48 € 3
ON REQUEST
20 BOLT M8×20 (Item nr. 20) GBT005789015 BOLT M8×20  8 € 2,18 € 3
IN STOCK
19 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN） (Item nr. 19) S01C005A1003 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）  1 € 22,81 € 28
ON REQUEST
19 S01C005A1002 FRONT SUPPORT UPPER CONNECTING PLATE（RED）  1 € 22,81 € 28
ON REQUEST
18 S01C00500002 R/B S05-C021000-DB0-00 FRAME FRONT SUPPORT ASSEMBLY (BLACK)  1 € 26,86 € 32
ON REQUEST
17 Inner hexagon screws M6×1.6 (Item nr. 17) T03000007002 Inner hexagon screws M6×1.6  18 € 2,18 € 3
IN STOCK
16 S01C00700003 R/B S05-C030000-PH1-00 BUMPER TRIM PANEL（SILVER GRAY）  1 € 46,20 € 56
ON REQUEST
16 S01C00700002 BUMPER TRIM PANEL（FROSTED SILVER）  1 € 46,20 € 56
ON REQUEST
15 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 15) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  3 € 2,18 € 3
IN STOCK
14 Hexagon flange bolt M10×1.25×25 (Item nr. 14) GBT005789026 Hexagon flange bolt M10×1.25×25  5 € 2,48 € 3
IN STOCK
13 HEXAGON FLANGE BOLT M10×1.25×20 (Item nr. 13) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  8 € 2,18 € 3
IN STOCK
12 S01C00600003 FRONT BUMPER (GREEN)  1 € 120 € 145
ON REQUEST
1_ S05B01000002 FRAME（RED)  1 € 3 867,36 € 4 679
IN STOCK
Product Code SEGWAY_2_229_UTV1000F-S3
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 (xxxx-2022)
