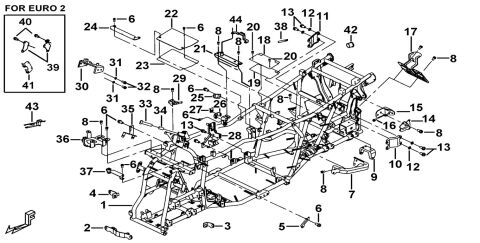

FRAME(1)

TGB
  • Manufacturer  TGB
  • Product Code  TGB_2_204_EST
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
44 CUSHIONS FIXED PLATE(FRONT) (Item nr. 44) 512360 CUSHIONS FIXED PLATE(FRONT)  1 € 9,01 € 11
IN STOCK
22 517955 HEAT ISULATION  1 € 13,64 € 16
ON REQUEST
21 REAR BRACKET,AIR CLEANER (Item nr. 21) 517977 REAR BRACKET,AIR CLEANER  1 € 17,19 € 21
IN STOCK
19 511331 HEAT ISULATION  1 € 11,82 € 14
ON REQUEST
15 517999 BRACKET  1 € 9,50 € 11
ON REQUEST
14 517954 MOTOR BRACKET  1 € 8,18 € 10
ON REQUEST
11 REAR DIFFERENTIAL BRACKET, RH. (Item nr. 11) 517953 REAR DIFFERENTIAL BRACKET, RH.  1 € 7,69 € 9
IN STOCK
10 REAR DIFFERENTIAL BRACKET, LH. (Item nr. 10) 517948 REAR DIFFERENTIAL BRACKET, LH.  1 € 18,93 € 23
IN STOCK
09 REAR DIFFERENTIAL BRACKET(UPPER) (Item nr. 09) 517972 REAR DIFFERENTIAL BRACKET(UPPER)  1 € 17,93 € 22
IN STOCK IN 6 days
07 517947 TANK BRACKET  1 € 20,41 € 25
ON REQUEST
23 511330 FLOOR CUSHIONS INSULATION STICKER  1 € 12,98 € 16
ON REQUEST
24 517958 CUSHIONS FIXED PLATE(FRONT)  1 € 18,35 € 22
ON REQUEST
25 511343 BRACKET, COOLING FAN

003161→

1 € 4,55 € 5
ON REQUEST
43 511389 BRACKET

FOR EPS(BRUSH MOTOR)

1 € 17,77 € 22
ON REQUEST
41 517998 BRACKET

←003160

1 € 6,36 € 8
ON REQUEST
37 517956 CVT BRACKET  1 € 6,69 € 8
ON REQUEST
36 ECU BRACKET (Item nr. 36) 517951 ECU BRACKET  1 € 21,32 € 26
ON REQUEST
35 511344 BRACKET, FUSE WIRING HARNESS

003161→

1 € 9,01 € 11
ON REQUEST
30 511369 BRACKET, EPS

FOR EPS

1 € 34,79 € 42
ON REQUEST
29 517959 HIGH VOLTAGE COIL BRACKET  1 € 10,66 € 13
ON REQUEST
28 517979 BRACKET,PEDAL BRAKE LEVER  1 € 41,07 € 50
ON REQUEST
26 517978 BRACKET,SIDE COVER  2 € 3,55 € 4
ON REQUEST
05 517969 FRONT INTERNAL FENDER  1 € 5,62 € 7
ON REQUEST
04 BRACKET (R.R.) (Item nr. 04) 511311 BRACKET (R.R.)  1 € 3,97 € 5
IN STOCK
03 BRACKET (L.R.) (Item nr. 03) 511310 BRACKET (L.R.)  1 € 4,71 € 6
IN STOCK
17 BRACKET ASSY., NUMBER-PLATE (Item nr. 17) 511991 BRACKET ASSY., NUMBER-PLATE  1 € 29,01 € 35
IN STOCK
16 BOLT, SOCKET M8X20L (Item nr. 16) S72805 BOLT, SOCKET M8X20L  2 € 2,40 € 3
IN STOCK
13 BOLT M10X20 (Item nr. 13) S21008 BOLT M10X20  7 € 2,40 € 3
IN STOCK
12 SPRING WASHER 10X18X2,5 (Item nr. 12) GA556WS06 SPRING WASHER 10X18X2,5  4 € 2,40 € 3
IN STOCK
08 BOLT (Item nr. 08) S21809 BOLT  15 € 2,40 € 3
IN STOCK
06 BOLT, FLANGE M6X16 (Item nr. 06) GA555SC05 BOLT, FLANGE M6X16  11 € 2,40 € 3
IN STOCK
02 BRACKET (Item nr. 02) 511308 BRACKET  1 € 18,02 € 22
IN STOCK
01B 517976 MAIN FRAME

←003160

1 € 1 597,11 € 1 933
ON REQUEST
01A 511339 MAIN FRAME

003161→

1 € 1 204,05 € 1 457
IN STOCK
18 514931 SEAT STEADY  1 € 24,79 € 30
ON REQUEST
20 BOLT, FLANGE (Item nr. 20) S20617 BOLT, FLANGE  2 € 2,15 € 3
IN STOCK
27 NUT, SPRING M6X1.0 (Item nr. 27) N32601 NUT, SPRING M6X1.0  2 € 2,40 € 3
IN STOCK
01C 511340 MAIN FRAME

003161→

1 € 962,23 € 1 164
ON REQUEST
42 PLUG CAP (Item nr. 42) 512072 PLUG CAP  2 € 2,40 € 3
IN STOCK
40 BOLT, FLANGE M8X16 (Item nr. 40) S20817 BOLT, FLANGE M8X16

←003160

2 € 2,40 € 3
IN STOCK
39 CERTIFIER BRACKET (Item nr. 39) 517950 CERTIFIER BRACKET

←003160

2 € 8,68 € 11
IN STOCK
38 CLAMP (Item nr. 38) 514410 CLAMP  1 € 2,40 € 3
IN STOCK
34 SPRING, STEERING LOCK (Item nr. 34) 511946 SPRING, STEERING LOCK  1 € 2,40 € 3
IN STOCK
33 PIN, STEERING LOCK (Item nr. 33) 511953 PIN, STEERING LOCK  1 € 7,93 € 10
ON REQUEST
32 BOLT, FLANGE (Item nr. 32) S20814 BOLT, FLANGE

FOR EPS

4 € 2,40 € 3
IN STOCK
31 SPRING WASHER (Item nr. 31) GA556WS04 SPRING WASHER

FOR EPS

4 € 2,40 € 3
IN STOCK
01 517946 MAIN FRAME

←003160

1 € 1 061,16 € 1 284
ON REQUEST
Product Code TGB_2_204_EST
PARTS CATEGORY: FRAME PARTS
Select MODEL: BLADE 1000LT E4
Select BRAND: TGB
Select TYPE: BLADE 1000
