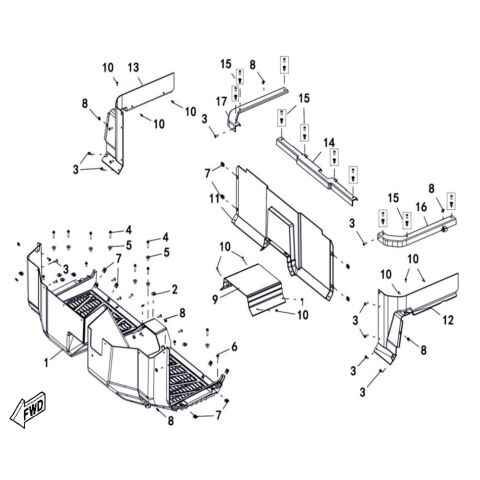

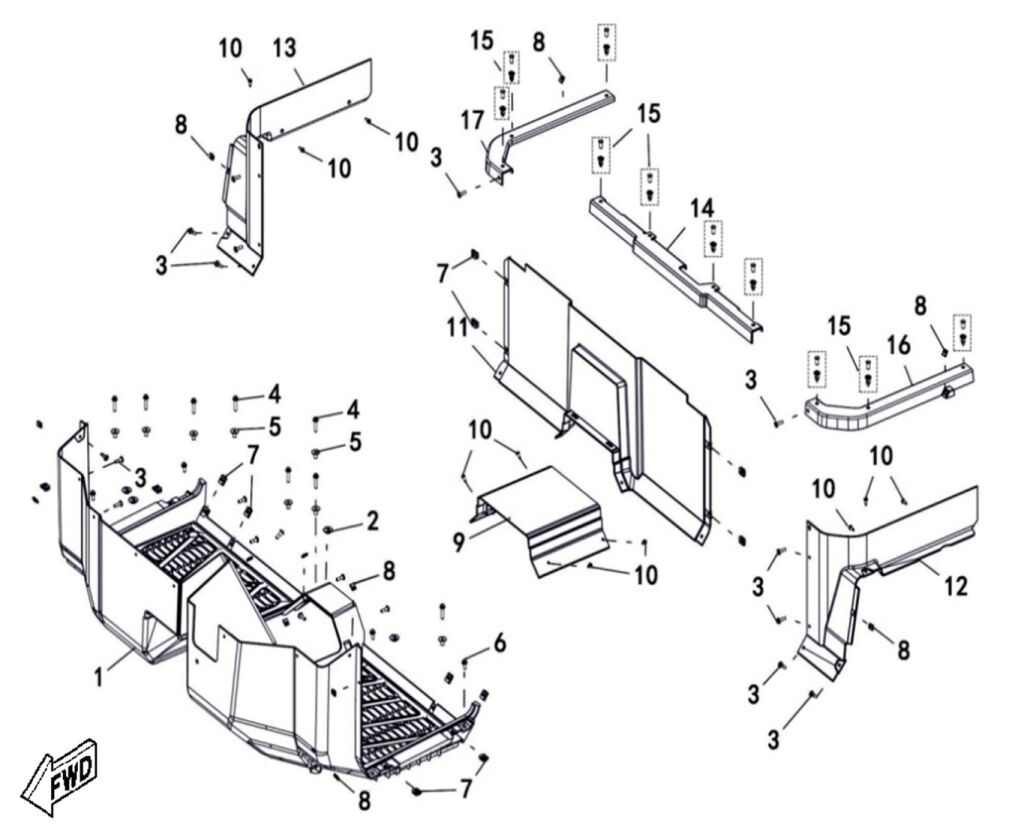

FENDER (FOR LH100DU)

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_4_423_LH100DU
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 55466 FOOT PLATE  1 € 121,16 € 147
ON REQUEST
16 47634 SEAT, COVER PLATE, L  1 € 4,38 € 5
ON REQUEST
15 EXPANSION SCREW (ONLY USED FOR LOF MODEL) (Item nr. 15) 47627 EXPANSION SCREW (ONLY USED FOR LOF MODEL)  10 € 2,15 € 3
ON THE WAY
14 55521 SEAT, FRONT COVER PLATE, THE BAFFLE  1 € 4,88 € 6
ON REQUEST
13 47632 SEAT, COVER PLATE, R  1 € 12,15 € 15
ON REQUEST
12 47631 SEAT, COVER PLATE, L  1 € 12,15 € 15
ON REQUEST
11 47630 SEAT, FRONT COVER PLATE (FOR LH100DU)  1 € 30,58 € 37
ON REQUEST
10 SCREW M5×16 (Item nr. 10) 47789 SCREW M5×16  10 € 2,15 € 3
IN STOCK
9 48226 Lower Floor Cover,Footrest  1 € 26,03 € 32
ON THE WAY
8 Spring Nut M5 (Item nr. 8) 48314 Spring Nut M5  12 € 9,01 € 11
IN STOCK
7 Spring Nut M6 (Item nr. 7) 70960 Spring Nut M6  12 € 2,40 € 3
IN STOCK
6 Bolt M6X16 (Item nr. 6) 11495 Bolt M6X16  4 € 2,40 € 3
ON REQUEST
5 48256 T - Shaped Liner Bushing  8 € 6,45 € 8
ON REQUEST
4 11241 Hexagon Flange Bolt M6×30  8 € 12,81 € 16
ON REQUEST
3 BOLT M6X20 (Item nr. 3) 46193 BOLT M6X20  19 € 1,98 € 2
IN STOCK
2 22349 Rubber  4 € 13,64 € 16
ON REQUEST
17 47635 SEAT, COVER PLATE, R  1 € 4,38 € 5
ON REQUEST
Product Code LINHAI_4_423_LH100DU
Select BRAND: LINHAI
PARTS CATEGORY: BODY PARTS
Select TYPE: LINHAI Electric UTV
Select MODEL: LH100DU
