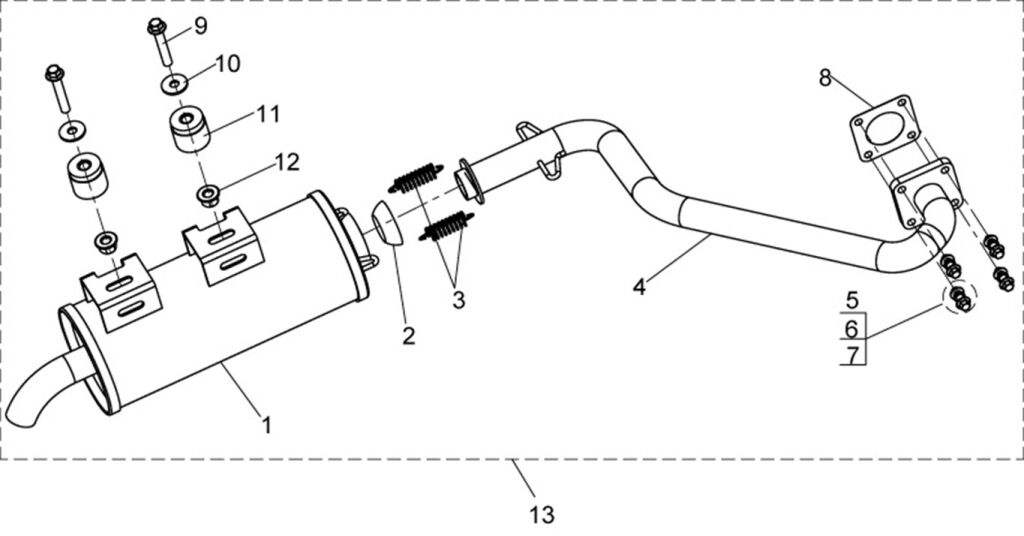

Exhaust Assembly Exploded View

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_136_LH800U-2D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 84141 Muffler  1 € 219,67 € 266
ON REQUEST
12 10823 Nut M10X1.25  2 € 10,91 € 13
ON REQUEST
11 Silence Bumper Components (Item nr. 11) 23415 Silence Bumper Components  2 € 3,06 € 4
IN STOCK
10 Washer 10 (11×30×2.5) (Item nr. 10) 10117 Washer 10 (11×30×2.5)  2 € 2,15 € 3
IN STOCK
9 Bolt M10X1.25X62 (Item nr. 9) 10120 Bolt M10X1.25X62  2 € 2,40 € 3
IN STOCK
8 84140 Gasket,Muffler  1 € 2,64 € 3
ON REQUEST
7 WASHER 8 (Item nr. 7) 10068 WASHER 8  4 € 7,19 € 9
IN STOCK
6 Spring Washer 8 (Item nr. 6) 10106 Spring Washer 8  4 € 2,40 € 3
IN STOCK
5 10425 Bolt M8X22  4 € 8,02 € 10
ON REQUEST
4 84139 Exhaust Pipe  1 € 60,17 € 73
ON REQUEST
3 SPRING (Item nr. 3) 23408 SPRING  2 € 2,40 € 3
IN STOCK
2 Spherical Washer (Item nr. 2) 84066 Spherical Washer  1 € 3,39 € 4
IN STOCK
13 84138 Exhaust Assy  1 € 347,02 € 420
ON REQUEST
Product Code LINHAI_1_136_LH800U-2D
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI UTV 800
Select MODEL: LH800U 2D
