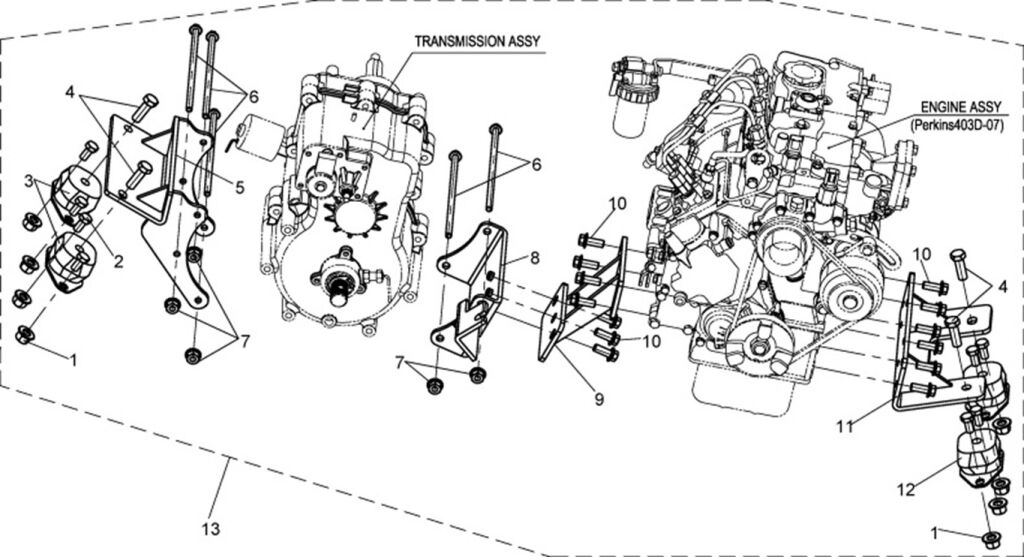

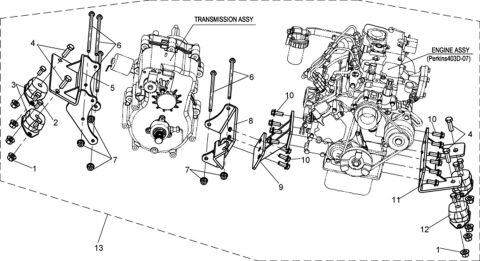

Engine&Transmission Mounting Parts Exploded View

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_132_LH800U-2D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 10883 Nut M10X1.5  8 € 11,74 € 14
ON REQUEST
12 84084 Damper,Engine Assy  2 € 6,69 € 8
ON REQUEST
11 84155 Engine Mounting Bracket  1 € 76,12 € 92
ON REQUEST
10 10873 Bolt M10X1.5X20  15 € 10,17 € 12
ON REQUEST
9 84156 Fitting Board Comp.1  1 € 77,93 € 94
ON REQUEST
8 84157 Fitting Board Comp.2  1 € 77,93 € 94
ON REQUEST
7 Nut M8 (Item nr. 7) 10882 Nut M8  5 € 2,40 € 3
IN STOCK
6 84082 Axle,Transmission Mounting Bracket  5 € 7,44 € 9
ON REQUEST
5 84154 Transmission Mounting Bracket  1 € 87,60 € 106
ON REQUEST
4 10870 Bolt M12X1.75X35  4 € 10 € 12
ON REQUEST
3 84083 Damper,Transmission Assy  2 € 79,83 € 97
ON REQUEST
2 10869 Bolt M10X1.5X20  8 € 9,34 € 11
ON REQUEST
Product Code LINHAI_1_132_LH800U-2D
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI UTV 800
Select MODEL: LH800U 2D
