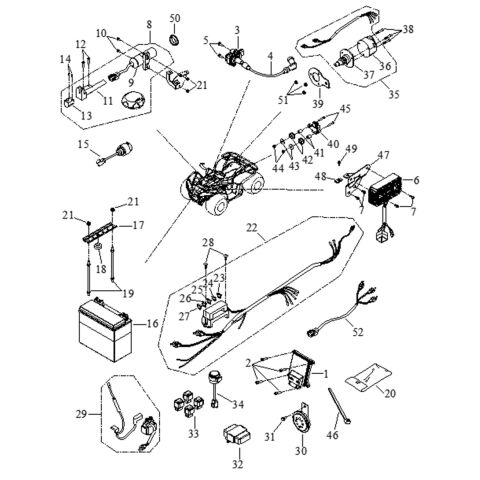

ELETRONICS

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_5_331_MAX_750i_Forest
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
51 92130-05S-08W Nut, Insert Lock  3 € 1,90 € 2
ON REQUEST
35 Connect Wire (Item nr. 35) 63114-A20-001 Connect Wire  1 € 68,60 € 83
IN STOCK
34 Sound Blinker Indicator (Item nr. 34) 61152-A20-000 Sound Blinker Indicator  1 € 12,40 € 15
ON REQUEST
33 Relay (Item nr. 33) 61155-A06-000 Relay  4 € 10,74 € 13
IN STOCK
32 R/B 61150-A27-100 Blinker Relay (Item nr. 32) 61150-A27-000 R/B 61150-A27-100 Blinker Relay  1 € 99,17 € 120
ON REQUEST
31 Hex Waser Face Bolt (Item nr. 31) 91700-06012-10G Hex Waser Face Bolt  1 € 2,48 € 3
ON THE WAY
30 Horn (Item nr. 30) 61145-A03-100 Horn  1 € 16,53 € 20
IN STOCK
29 61130-A03-010 Starter Relay (Item nr. 29) 61130-A03-001 61130-A03-010 Starter Relay  1 € 26,45 € 32
IN STOCK
28 Philips Screw, Round head, Tap (Item nr. 28) 91825-05016 Philips Screw, Round head, Tap  2 € 2,48 € 3
ON THE WAY
27 63120-A27-000 Fuse  1 € 1,90 € 2
ON REQUEST
26 63120-A03-030 Fuse, 30A  1 € 1,90 € 2
ON REQUEST
38 91760-05035-04W Bolt, Hexagon, Socker  3 € 1,90 € 2
ON REQUEST
40 Sensor, Tipping Angle Detect (Item nr. 40) 61134-A26-000 Sensor, Tipping Angle Detect  1 € 34,71 € 42
IN STOCK
50 Rubber (Item nr. 50) 93517-A27-000 Rubber  1 € 2,48 € 3
IN STOCK
49 Bolt, Hex, Socker, Ladder (Item nr. 49) 91900-090025-12-1 Bolt, Hex, Socker, Ladder  1 € 2,48 € 3
IN STOCK
48 Nut, U shape(Andoised) (Item nr. 48) 92210-A01-100 Nut, U shape(Andoised)  1 € 2,48 € 3
IN STOCK
47 83147-A27-001 Holder, Regulator  1 € 8,51 € 10
ON REQUEST
46 93705-TSL48200YB Strap  95 € 1,90 € 2
ON REQUEST
45 91700-05024-08C-1 Bolt, Hex.Washer Face  2 € 1,90 € 2
ON REQUEST
44 92131-05N-08G-2 Nut, Insert Lock  2 € 1,90 € 2
ON REQUEST
43 93100-06519-12W-2 Waser, Plate  2 € 1,90 € 2
ON REQUEST
42 Cushion Rubber, Oil Tank (Item nr. 42) 93509-A12-010 Cushion Rubber, Oil Tank  2 € 2,48 € 3
IN STOCK
41 Spacer (Item nr. 41) 93300-0610-10 Spacer  2 € 2,48 € 3
IN STOCK
25 63120-A03-020 Fuse, 15A  4 € 2,48 € 3
ON REQUEST
24 63120-A03-010 Fuse, 10A  1 € 1,90 € 2
ON REQUEST
11 61104-A27-000 Lock, Seat  0 € 29,75 € 36
ON REQUEST
10 Hex Washer Face Bolt (unavailable) (Item nr. 10) 91700-06016-10G Hex Washer Face Bolt (unavailable)  2 € 2,48 € 3
IN STOCK
9 Lock, Main Switch (Item nr. 9) 61105-A27-000 Lock, Main Switch  1 € 42,98 € 52
IN STOCK
8 61106-A27-000 Main Switch Ass'y  1
ON REQUEST
7 91700-06014-10G Hex. Bolt, Flange  4 € 1,90 € 2
ON REQUEST
6 R/B 61120-A27-010 Rectifier & Regulator (Item nr. 6) 61120-A27-000 R/B 61120-A27-010 Rectifier & Regulator  1 € 107,44 € 130
ON REQUEST
5 Hex Washer Face Bolt (Item nr. 5) 91700-06025-10G Hex Washer Face Bolt  4 € 2,48 € 3
IN STOCK
4 PLUG CAP & CABLE ASSY (Item nr. 4) 61111-A27-000 PLUG CAP & CABLE ASSY  1 € 22,31 € 27
IN STOCK
3 Ignition Coil (Item nr. 3) 61110-A27-000 Ignition Coil  1 € 57,85 € 70
IN STOCK
2 91760-05020-04B Bolt, Hexagon, Socker  4 € 1,90 € 2
ON REQUEST
12 Hex. Bolt, Flange (Item nr. 12) 91700-06038-10G Hex. Bolt, Flange  2 € 2,48 € 3
IN STOCK
13 61108-A27-000 Lock, Handle Bar  1 € 12,40 € 15
ON REQUEST
23 63120-A26-000 Fuse  1 € 1,90 € 2
ON REQUEST
22 63100-A27-001 Main Wire Ass'y  1
ON REQUEST
21 Nut, Insert Lock (Item nr. 21) 92130-06S-10G Nut, Insert Lock  4 € 2,48 € 3
IN STOCK
20 72105-A12-001 Tool Box  1 € 33,97 € 41
ON REQUEST
19 91843-A27-000 Bolt, fixed  2 € 6,36 € 8
ON REQUEST
18 Shock pad (Item nr. 18) 93515-A27-000 Shock pad  1 € 2,48 € 3
IN STOCK
17 83146-A27-000 Holder, Battery  1 € 21,49 € 26
ON REQUEST
16 63205-A27-000 Battery (unavailable)  1
ON REQUEST
15 Power Supplier-12V (Item nr. 15) 61230-A03-000 Power Supplier-12V  1 € 17,36 € 21
IN STOCK
14 91732-06012G Screw,Cross (unavailable)  2
ON REQUEST
1 R/B 61115-A36-000 Engine Control Unit (ECU 3.0)) (Item nr. 1) 61115-A27-000 R/B 61115-A36-000 Engine Control Unit (ECU 3.0))  1 € 463,64 € 561
IN STOCK
Product Code ACCESS_5_331_MAX_750i_Forest
Select BRAND: ACCESS
PARTS CATEGORY: ELECTRICAL PARTS
Select TYPE: ACCESS MAX
Select MODEL: MAX 750 EFI FOREST
