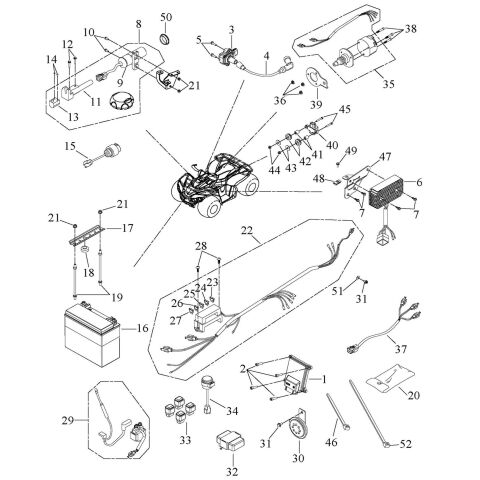

ELETRONICS

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  Access_F-20_MAX-750i-LT
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

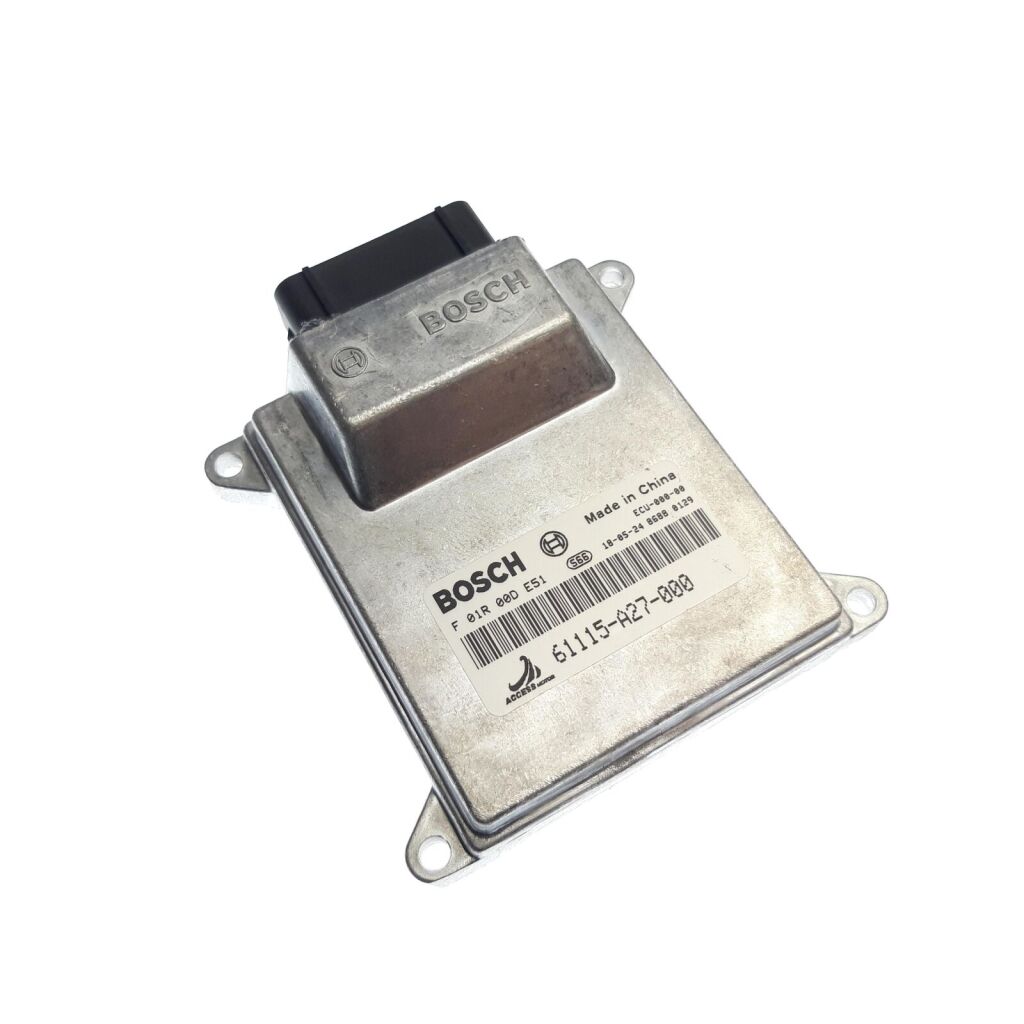

01 R/B 61115-A36-000 Engine Control Unit (ECU 3.0)) (Item nr. 01) 61115-A27-000 R/B 61115-A36-000 Engine Control Unit (ECU 3.0))  1 € 463,64 € 561
IN STOCK
25 63120-A03-020 Fuse, 15A  4 € 2,48 € 3
ON REQUEST
29 61130-A03-010 Starter Relay (Item nr. 29) 61130-A03-001 61130-A03-010 Starter Relay  1 € 26,45 € 32
IN STOCK
30 Horn (Item nr. 30) 61145-A03-100 Horn  1 € 16,53 € 20
IN STOCK
31 Hex Waser Face Bolt (Item nr. 31) 91700-06012-10G Hex Waser Face Bolt  2 € 2,48 € 3
IN STOCK
32 R/B 61150-A27-100 Blinker Relay (Item nr. 32) 61150-A27-000 R/B 61150-A27-100 Blinker Relay  1 € 99,17 € 120
ON REQUEST
33 Relay (Item nr. 33) 61155-A06-000 Relay  4 € 10,74 € 13
IN STOCK IN 5 days

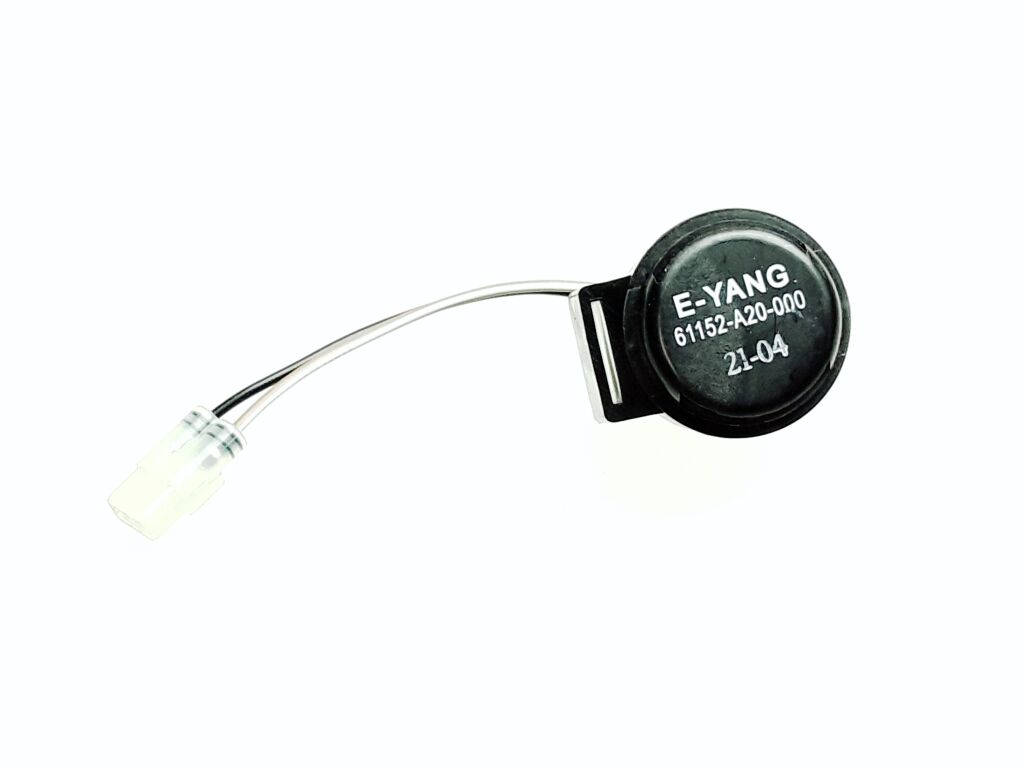

34 Sound Blinker Indicator (Item nr. 34) 61152-A20-000 Sound Blinker Indicator  1 € 12,40 € 15
ON REQUEST

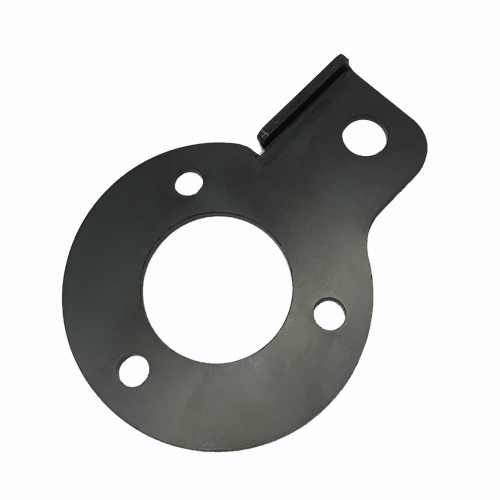

39 R/B V110-010DR Bracket, Power Connecter (Item nr. 39) 71271-A24-001 R/B V110-010DR Bracket, Power Connecter  1 € 6,99 € 8
IN STOCK
More variants

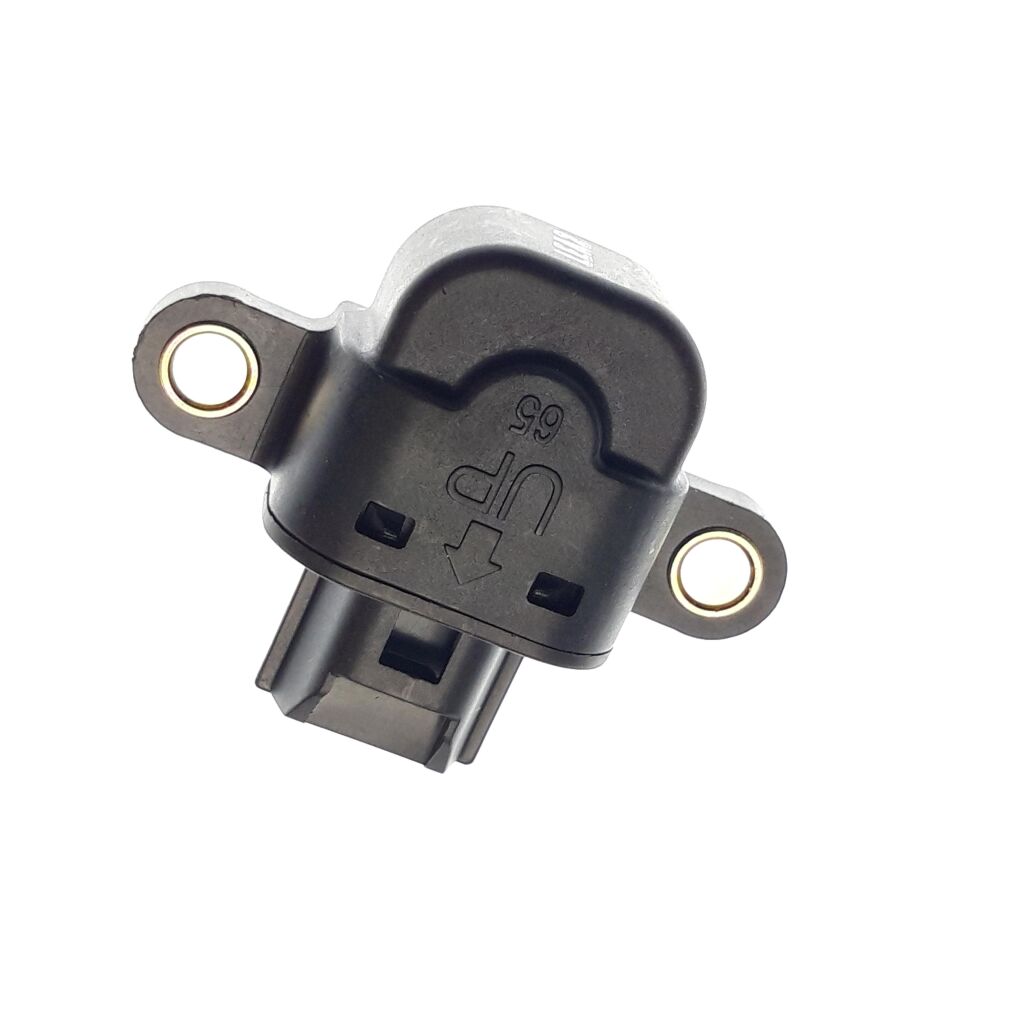

40 Sensor, Tipping Angle Detect (Item nr. 40) 61134-A26-000 Sensor, Tipping Angle Detect  1 € 34,71 € 42
IN STOCK
41 Spacer (Item nr. 41) 93300-0610-10 Spacer  2 € 2,48 € 3
IN STOCK
42 Cushion Rubber, Oil Tank (Item nr. 42) 93509-A12-010 Cushion Rubber, Oil Tank  2 € 2,48 € 3
IN STOCK
48 Nut, U shape(Andoised) (Item nr. 48) 92210-A01-100 Nut, U shape(Andoised)  1 € 2,48 € 3
IN STOCK
50 Rubber (Item nr. 50) 93517-A27-000 Rubber  1 € 2,48 € 3
IN STOCK
21 Nut, Insert Lock (Item nr. 21) 92130-06S-10G Nut, Insert Lock  4 € 2,48 € 3
IN STOCK
18 Shock pad (Item nr. 18) 93515-A27-000 Shock pad  1 € 2,48 € 3
IN STOCK
03 Ignition Coil (Item nr. 03) 61110-A27-000 Ignition Coil  1 € 57,85 € 70
IN STOCK
04 PLUG CAP & CABLE ASSY (Item nr. 04) 61111-A27-000 PLUG CAP & CABLE ASSY  1 € 22,31 € 27
IN STOCK
05 Hex Washer Face Bolt (Item nr. 05) 91700-06025-10G Hex Washer Face Bolt  2 € 2,48 € 3
IN STOCK
06 R/B 61120-A27-010 Rectifier & Regulator (Item nr. 06) 61120-A27-000 R/B 61120-A27-010 Rectifier & Regulator  1 € 107,44 € 130
ON REQUEST
08 61106-A27-001 R/B 61106-A27-002Main Switch Ass'y  1 € 138,84 € 168
IN STOCK
09 Lock, Main Switch (Item nr. 09) 61105-A27-000 Lock, Main Switch  1 € 42,98 € 52
IN STOCK
10 Hex Washer Face Bolt (unavailable) (Item nr. 10) 91700-06016-10G Hex Washer Face Bolt (unavailable)  2 € 2,48 € 3
IN STOCK
11 61104-A27-000 Lock, Seat  1 € 29,75 € 36
ON REQUEST
12 Hex. Bolt, Flange (Item nr. 12) 91700-06038-10G Hex. Bolt, Flange  2 € 2,48 € 3
IN STOCK
13 61108-A27-000 Lock, Handle Bar  1 € 12,40 € 15
ON REQUEST
14 91732-06012G Screw,Cross (unavailable)  2
ON REQUEST
Detail
15 Power Supplier-12V (Item nr. 15) 61230-A03-000 Power Supplier-12V  1 € 17,36 € 21
IN STOCK
17 83146-A27-000 Holder, Battery  1 € 21,49 € 26
ON REQUEST
51 93150-0611 Washer  1 € 2,48 € 3
ON REQUEST
Product Code Access_F-20_MAX-750i-LT
Select BRAND: ACCESS
PARTS CATEGORY: ELECTRICAL PARTS
Select TYPE: ACCESS MAX
Select MODEL: MAX 750 EFI
