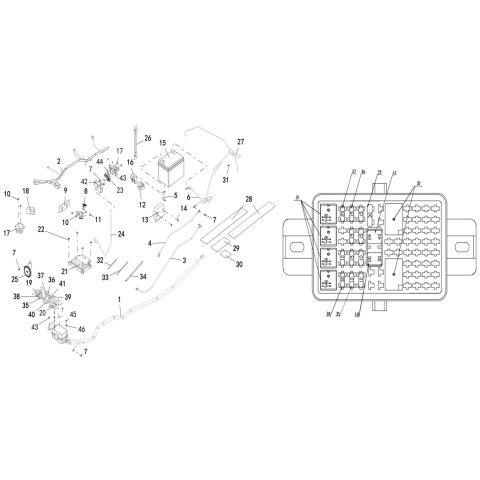

ELECTRICAL SYSTEM (SY)

  • Product Code  LINHAI_330_Landforce-550L ABS
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
46 WASHER 6 (Item nr. 46) 11391 WASHER 6  2 € 2,40 € 3
IN STOCK
33 55016 TIE 2  16 € 9,59 € 12
ON REQUEST
32 11334 Tie  9
ON REQUEST
31 CABLE CLAMP (Item nr. 31) 35247 CABLE CLAMP  5 € 3,22 € 4
IN STOCK
30 HEAT INSULATION FILM (60x75) (Item nr. 30) 65367 HEAT INSULATION FILM (60x75)  1 € 2,15 € 3
IN STOCK
29 HEAT INSULATION FILM (160x75) (Item nr. 29) 65366 HEAT INSULATION FILM (160x75)  1 € 2,15 € 3
IN STOCK
28 HEAT INSULATION FILM (500x75) (Item nr. 28) 65365 HEAT INSULATION FILM (500x75)  2 € 10,17 € 12
IN STOCK
27 TAILLIGHT TRANSITION LINE (Item nr. 27) 65364 TAILLIGHT TRANSITION LINE  1 € 39,26 € 48
IN STOCK
26 TIE, BATTERY (Item nr. 26) 65341 TIE, BATTERY  1 € 4,79 € 6
ON REQUEST
25 HORN（USED FOR EUROPE) (Item nr. 25) 70404 HORN（USED FOR EUROPE)  1 € 16,45 € 20
IN STOCK
34 Tie (Item nr. 34) 48294 Tie  3 € 2,89 € 3
ON REQUEST
35 10 AMP Fuse (Item nr. 35) 48361 10 AMP Fuse  6 € 11,98 € 14
IN STOCK
36 15 AMP Fuse (Item nr. 36) 48362 15 AMP Fuse  8 € 11,98 € 14
IN STOCK
45 SCREW M5×16 (Item nr. 45) 47789 SCREW M5×16  4 € 2,15 € 3
IN STOCK
44 11058 SCREW ST 4X10  4 € 8,02 € 10
ON REQUEST
43 IGNITION COIL SHIELD COVER REAR COVER ASSY (Item nr. 43) 65425 IGNITION COIL SHIELD COVER REAR COVER ASSY  1 € 1,40 € 2
IN STOCK
42 IGNITION COIL SHIELD COVER FRONT COVER (Item nr. 42) 65424 IGNITION COIL SHIELD COVER FRONT COVER  1 € 1,40 € 2
IN STOCK
41 40 AMP FUSE (Item nr. 41) 65346 40 AMP FUSE  2 € 4,96 € 6
IN STOCK
40 30 AMP FUSE (Item nr. 40) 65344 30 AMP FUSE  2 € 4,96 € 6
IN STOCK
39 FUSE WIRE (Item nr. 39) 84275 FUSE WIRE  2 € 2,40 € 3
IN STOCK
38 48364 30 AMP Fuse  2 € 11,98 € 14
ON REQUEST
37 48363 20 AMP Fuse  2 € 11,98 € 14
ON REQUEST
24 65014 SPARK PLUG CAP (WITH WIRE)  1 € 15,37 € 19
ON REQUEST
23 IGNITION COIL (Item nr. 23) 65013 IGNITION COIL  1 € 49,50 € 60
IN STOCK
10 Hexagon Flange Bolt M6×20 (Item nr. 10) 11459 Hexagon Flange Bolt M6×20  6 € 2,23 € 3
IN STOCK
9 63557 HEAT INSULATION FILM FOR KEY SWITCH  1 € 2,48 € 3
ON REQUEST
8 63630 KEY SWITCH ASSY  1 € 23,31 € 28
ON REQUEST
7 Bolt M6X16 (Item nr. 7) 11495 Bolt M6X16  7 € 2,40 € 3
ON REQUEST
6 63525 NEGATIVE WIRE, BATTERY  1 € 15,70 € 19
ON REQUEST
5 63524 POSITIVE WIRE, BATTERY  1 € 8,26 € 10
ON REQUEST
4 63523 STARTING MOTOR CABLE NEGATIVE POLE  1 € 13,22 € 16
ON REQUEST
3 63522 STARTING MOTOR CABLE POSITIVE POLE  1 € 27,27 € 33
ON REQUEST
2 65597 WIRING HARNESS FOR EFI  1 € 105,70 € 128
ON REQUEST
11 NUT M6 (Item nr. 11) 11233 NUT M6  2 € 1,98 € 2
IN STOCK
12 STARTING RELAY (Item nr. 12) 65338 STARTING RELAY  1 € 17,93 € 22
ON REQUEST
13 RECTIFIER REGULATOR (Item nr. 13) 65339 RECTIFIER REGULATOR  1 € 59,67 € 72
IN STOCK
22 11539 Bolt M6X25  4 € 2,40 € 3
ON THE WAY

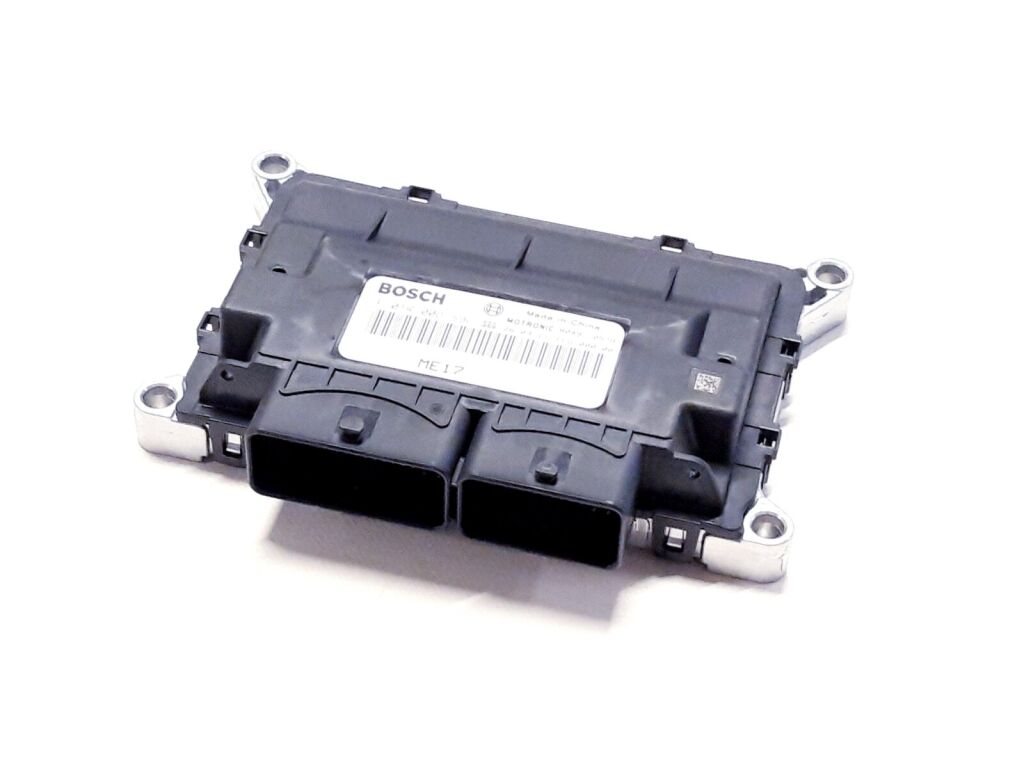

21 63594 ECU(FULL SPEED)  1 € 194,88 € 236
ON THE WAY
20 RELAY (5 PIN) (Item nr. 20) 65336 RELAY (5 PIN)  2 € 14,05 € 17
IN STOCK
19 RELAY (4 PIN) (Item nr. 19) 65337 RELAY (4 PIN)  4 € 14,05 € 17
IN STOCK
18 REVERSING BUZZER (Item nr. 18) 65354 REVERSING BUZZER  1 € 15,79 € 19
IN STOCK
17 FLASHER RELAY ASSY (Item nr. 17) 65353 FLASHER RELAY ASSY  1 € 25,62 € 31
IN STOCK
16 ELECTRICAL DUMPAGE SWITCH Of ATV300-D EFI T3b (Item nr. 16) 72278 ELECTRICAL DUMPAGE SWITCH Of ATV300-D EFI T3b  1 € 89,09 € 108
IN STOCK
15 73895 BATTERY (30Ah)  1 € 400,74 € 485
ON REQUEST
14 BOLT M6X30 (Item nr. 14) 11496 BOLT M6X30  2 € 2,40 € 3
IN STOCK
1 65518 WIRING HARNESS (2420mm)  1
ON REQUEST
Product Code LINHAI_330_Landforce-550L ABS
PARTS CATEGORY: ELECTRICAL PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 550
Select MODEL: Landforce 550L ABS
