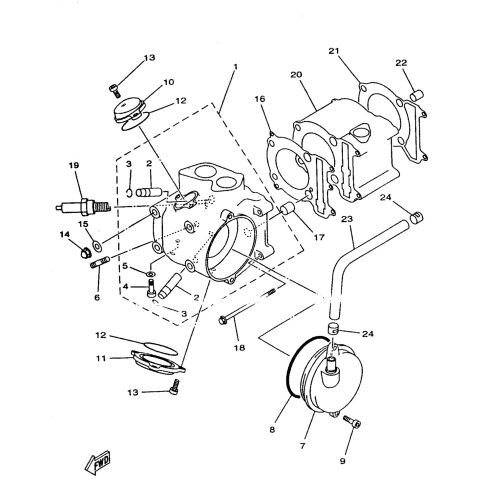

CYLINDER

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_119_ATV300-3D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 CYLINDER HEAD ASSY (FOR ATV300) (Item nr. 1) 22401B CYLINDER HEAD ASSY (FOR ATV300)  1 € 287,36 € 348
ON REQUEST
14 NUT CROWN M8 of ATV300-D EFI T3b (Item nr. 14) 22414 NUT CROWN M8 of ATV300-D EFI T3b  4 € 2,40 € 3
IN STOCK
15 WASHER PLATE 8 (Item nr. 15) 22415 WASHER PLATE 8  4 € 2,40 € 3
IN STOCK
16 GASKET CYLINDER HEAD 2 (FOR ATV300) (Item nr. 16) 22416a GASKET CYLINDER HEAD 2 (FOR ATV300)  1 € 14,96 € 18
IN STOCK
17 PIN DOWEL 14X16 (Item nr. 17) 22417 PIN DOWEL 14X16  2 € 2,40 € 3
IN STOCK
18 BOLT FLANGE M6X120 of ATV300-D EFI T3b (Item nr. 18) 22418 BOLT FLANGE M6X120 of ATV300-D EFI T3b  2 € 2,23 € 3
IN STOCK
19 PLUG SPARK (NGK DR8EA) (Item nr. 19) 22419 PLUG SPARK (NGK DR8EA)  1 € 15,45 € 19
ON REQUEST

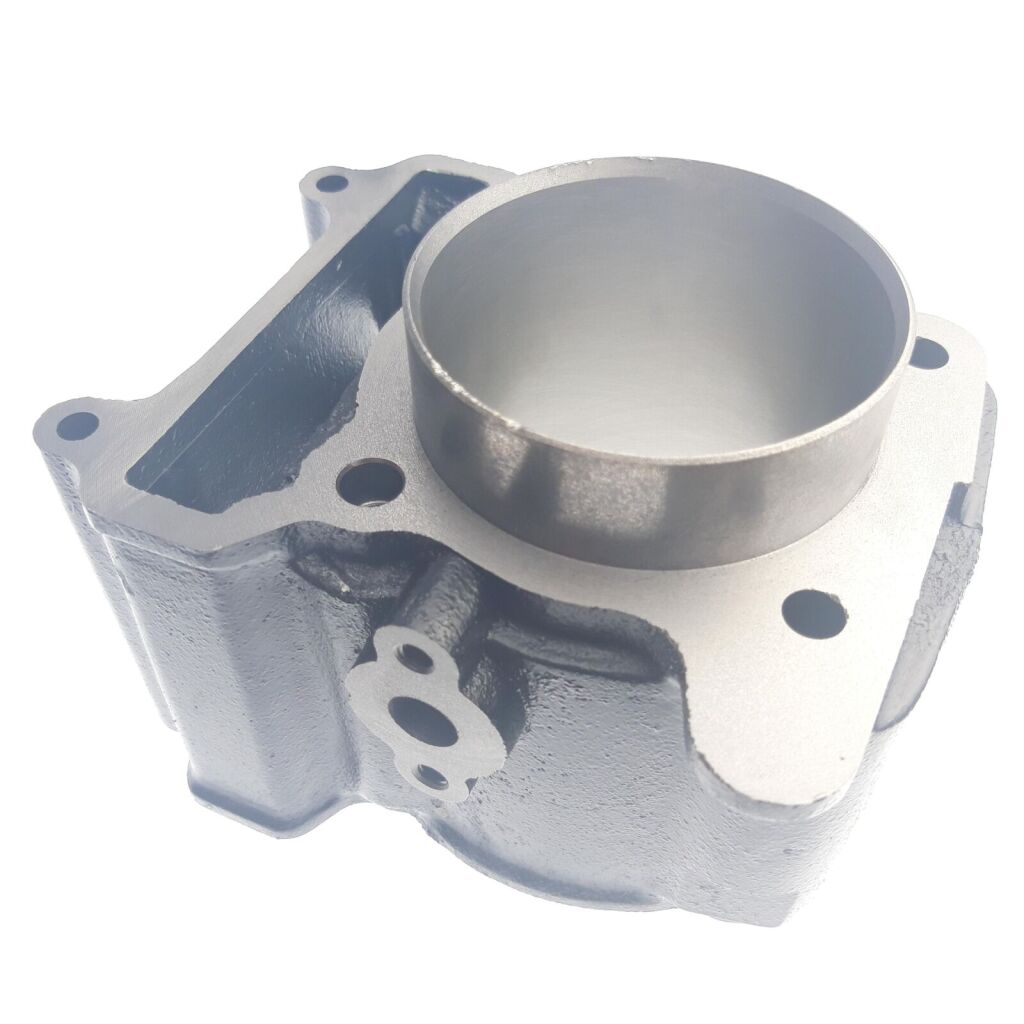

20 CYLINDER (FOR ATV300) (Item nr. 20) 22420A CYLINDER (FOR ATV300)  1 € 117,44 € 142
IN STOCK
21 GASKET CYLINDER (Item nr. 21) 22421 GASKET CYLINDER  1 € 1,65 € 2
IN STOCK
22 PIN DOWEL 10X14 (Item nr. 22) 22422 PIN DOWEL 10X14  2 € 2,40 € 3
ON REQUEST
23 PIPE BREATHER1 (Item nr. 23) 22423 PIPE BREATHER1  1 € 9,42 € 11
IN STOCK
13 BOLT M6X20 OF M550 E4 (Item nr. 13) 10008 BOLT M6X20 OF M550 E4  5 € 2,40 € 3
IN STOCK
12 O-RING 57.5X2.3 (Item nr. 12) 22412 O-RING 57.5X2.3  2 € 3,88 € 5
IN STOCK
2 GUIDE INTAKE VALVE (Item nr. 2) 22402 GUIDE INTAKE VALVE  2 € 8,76 € 11
IN STOCK
3 CIRCLIP 12 (Item nr. 3) 10112 CIRCLIP 12  2 € 2,40 € 3
IN STOCK
4 BOLT M6X12 Of ATV300-D EFI T3b (Item nr. 4) 10086 BOLT M6X12 Of ATV300-D EFI T3b  1 € 2,40 € 3
IN STOCK
5 22405 GASKET 6  1
ON REQUEST
Detail
6 Bolt Stud (Item nr. 6) 10014 Bolt Stud  2 € 2,40 € 3
IN STOCK
7 BREATHER ASSY of ATV300-D EFI T3b (Item nr. 7) 25604 BREATHER ASSY of ATV300-D EFI T3b  1 € 2,98 € 4
IN STOCK
8 O-RING 95X3.3 (Item nr. 8) 22408 O-RING 95X3.3  1 € 6,20 € 8
IN STOCK
10 VALVE COVER INTAKE SIDE (Item nr. 10) 22410 VALVE COVER INTAKE SIDE  1 € 6,20 € 8
IN STOCK
11 VALVE COVER EXHAUST SIDE (Item nr. 11) 22411 VALVE COVER EXHAUST SIDE  1 € 10 € 12
ON REQUEST
24 22424 CLIP 13MM  2
ON REQUEST
Detail
Product Code LINHAI_1_119_ATV300-3D
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 260/300
Select MODEL: 300 E2
