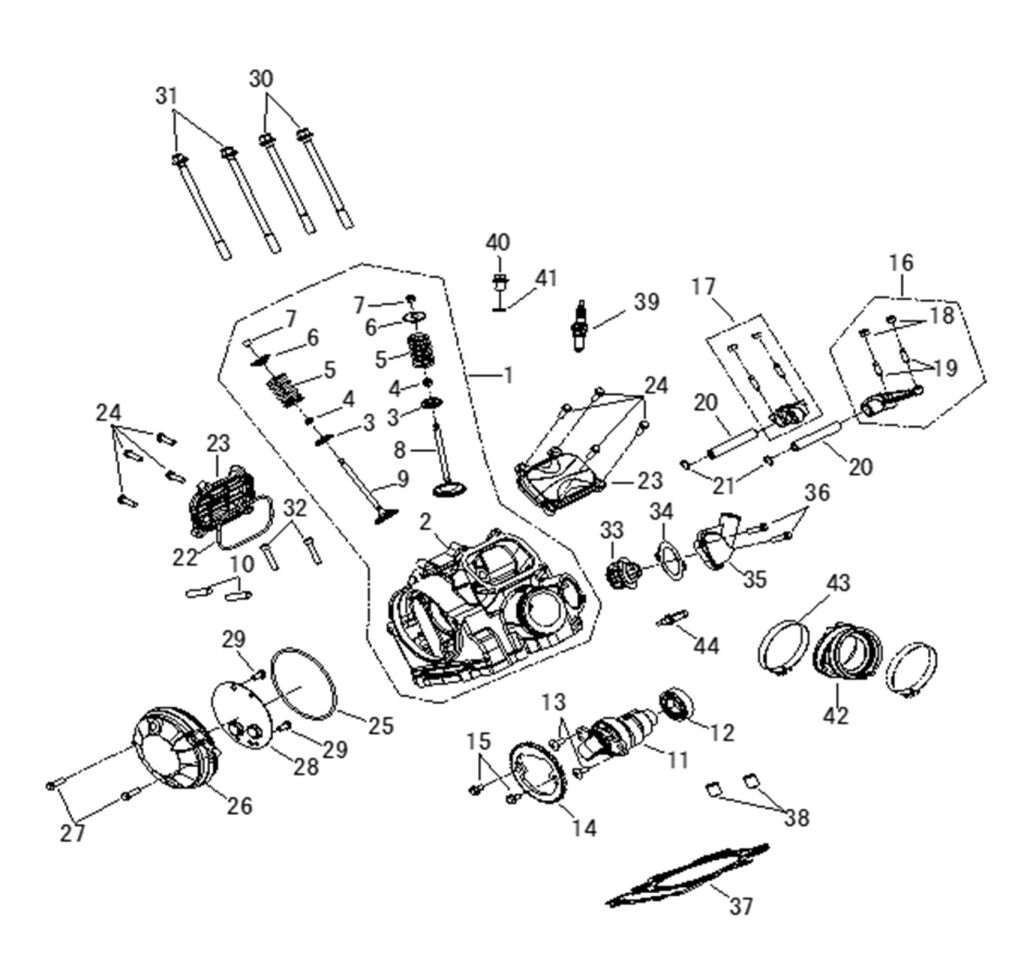

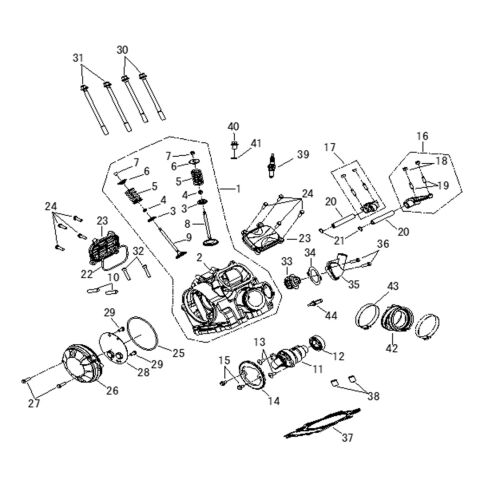

Cylinder head

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_1_102_MAX_750i_Forest
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
37 Gasket, Cylinder Head (Item nr. 37) 12300-E20-000 Gasket, Cylinder Head  1 € 79,92 € 97
ON THE WAY
25 Oil-Ring (Item nr. 25) 96200-994031 Oil-Ring  1 € 4,13 € 5
ON REQUEST
24 Head Cover , Cylinder (Item nr. 24) 91700-06020-08Z Head Cover , Cylinder  8 € 2,48 € 3
IN STOCK
23 Head Cover , Cylinder (Item nr. 23) 12210-E20-000 Head Cover , Cylinder  2 € 6,61 € 8
ON REQUEST
22 Oil-Ring (Item nr. 22) 96200-830030 Oil-Ring  2 € 3,31 € 4
ON THE WAY
21 Clip, Inner (Item nr. 21) 93405-RTW12 Clip, Inner  2 € 2,48 € 3
IN STOCK
20 25310-E20-000 SHAFT, ROCKER  2 € 8,02 € 10
ON REQUEST
19 25307-E20-000 Adjust Screw  4 € 1,90 € 2
ON REQUEST
18 25306-E20-000 Adjust Screw  4 € 2,31 € 3
ON REQUEST
26 Head Cover , Cylinder (Item nr. 26) 12210-E20-011 Head Cover , Cylinder  1 € 30,58 € 37
IN STOCK
28 PLATE, BREATHER (Item nr. 28) 12250-E20-001 PLATE, BREATHER  1 € 10,74 € 13
IN STOCK
35 15305-E12-200 CAP, thermostat connector  1
ON REQUEST
34 Gasket Thermostat (Item nr. 34) 15306-E12-000 Gasket Thermostat  1 € 3,31 € 4
IN STOCK
33 Thermostat Ass'y 82°C (Item nr. 33) 15300-E12-100 Thermostat Ass'y 82°C  1 € 40,50 € 49
IN STOCK
32 BOLT, Hex, Socker (Item nr. 32) 91760-06030-05Z BOLT, Hex, Socker  2 € 2,48 € 3
IN STOCK
31 Bolt, Hex (Item nr. 31) 91750-10145-12Z Bolt, Hex  2 € 9,09 € 11
IN STOCK
30 Bolt, Hex (Item nr. 30) 91750-10135-12Z Bolt, Hex  2 € 8,26 € 10
IN STOCK
29 Hex. Bolt, Flange (Item nr. 29) 91700-06012-08C-1 Hex. Bolt, Flange  2 € 2,48 € 3
IN STOCK
17 Arm Valve Rocker (Item nr. 17) 25305-E20-000 Arm Valve Rocker  1 € 50,41 € 61
IN STOCK
16 Arm Valve Rocker (Item nr. 16) 25303-E20-000 Arm Valve Rocker  1 € 50,41 € 61
IN STOCK
15 R/B 91930-072023-10G Bolt, Hex, Socker, Ladder (Item nr. 15) 91930-072023-10Z R/B 91930-072023-10G Bolt, Hex, Socker, Ladder  2 € 2,48 € 3
ON REQUEST
3 Support, Valve Spring (Item nr. 3) 14776-E20-000 Support, Valve Spring  4 € 9,09 € 11
IN STOCK
2 12201-E20-000 Cylinder Head  1
ON REQUEST
44 CLT Sensor (Item nr. 44) 15240-E20-000 CLT Sensor  1 € 32,23 € 39
IN STOCK
43 Clip (Item nr. 43) 97414-070090 Clip  1 € 2,48 € 3
ON REQUEST

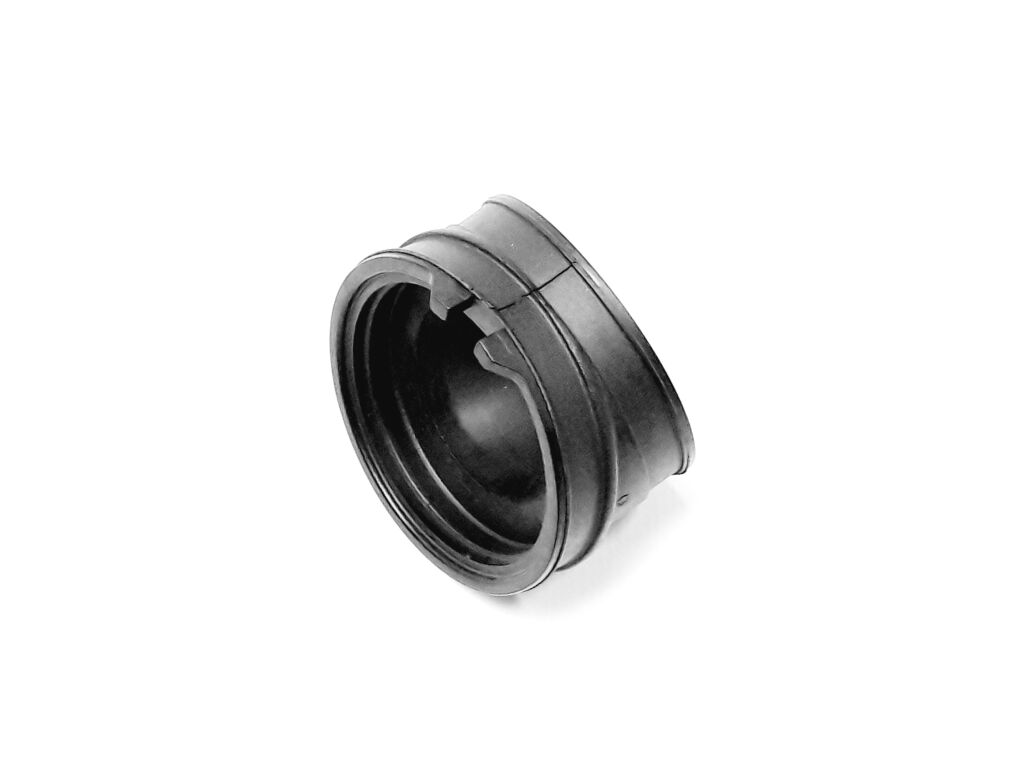

42 R/B 16410-E20-002 Manifold, Intake (Item nr. 42) 16410-E20-000 R/B 16410-E20-002 Manifold, Intake  1 € 17,36 € 21
ON REQUEST
41 93101-10015-15 GASKET, oil galley bolt  1 € 1,90 € 2
ON REQUEST
40 91700-10012-12C BOLT, oil galley  1 € 1,90 € 2
ON REQUEST
39 98069-CR8E-000 PLUG, spark CR8E  1 € 19,01 € 23
ON REQUEST
4 SEAL, VALVE (Item nr. 4) 14730-E20-000 SEAL, VALVE  4 € 3,31 € 4
IN STOCK
5 14736-E20-000 Spring ,Valve Inner  4 € 3,97 € 5
ON REQUEST
6 14771-E20-000 Holder, Valve Spring  4
ON REQUEST
14 25101-E20-000 R/B 25101-E20-001 SPROCKET, CAM CHAIN  1
ON REQUEST
13 91735-06014B Bolt, Cross  2 € 1,90 € 2
ON REQUEST
12 Bearing, Ball (Item nr. 12) 95100-60/22Z Bearing, Ball  1 € 28,10 € 34
IN STOCK

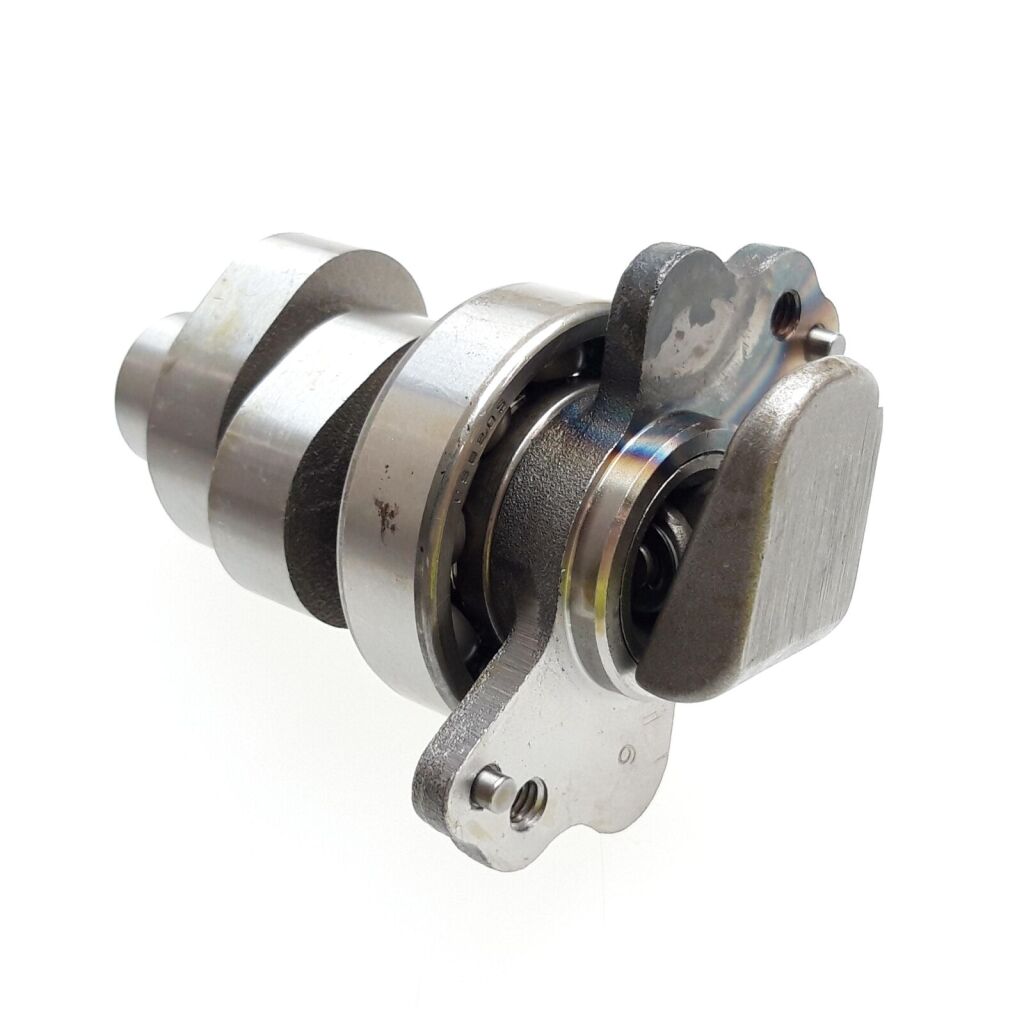

11 R/B 25100-E20-012 Cam shaft comp (Item nr. 11) 25100-E20-010 R/B 25100-E20-012 Cam shaft comp  1 € 161,98 € 196
ON REQUEST
10 91000-08042Z Bolt,Stud  4
ON REQUEST
9 Valve, Exhaust (Item nr. 9) 14721-E20-000 Valve, Exhaust  2 € 38,02 € 46
ON THE WAY
8 Valve, Intake (Item nr. 8) 14720-E20-000 Valve, Intake  2 € 20,66 € 25
ON REQUEST
7 Cotter, Valve (Item nr. 7) 14781-E20-000 Cotter, Valve  8 € 2,48 € 3
IN STOCK
38 94001-140160 Pin, Dowel  2 € 2,48 € 3
ON REQUEST
Product Code ACCESS_1_102_MAX_750i_Forest
PARTS CATEGORY: ENGINE PARTS
Select BRAND: ACCESS
Select TYPE: ACCESS MAX
Select MODEL: MAX 750 EFI FOREST
