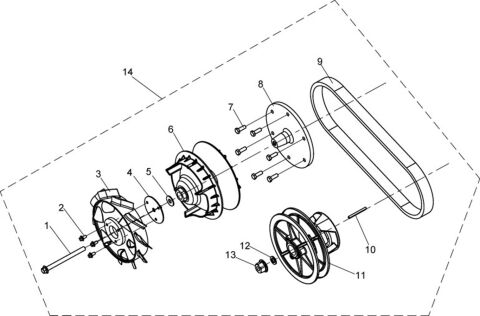

CVT Assy Exploded View

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_133_LH800U-2D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 84069 Bolt  1 € 4,63 € 6
ON REQUEST
13 NUT M12X1.25 (Item nr. 13) 10136 NUT M12X1.25  1 € 2,40 € 3
IN STOCK
12 Washer 12 (Item nr. 12) 28053 Washer 12  1 € 9,34 € 11
IN STOCK
11 84068 Driven Pulley Comp.  1 € 720,66 € 872
ON REQUEST
10 84070 Key, B4.7X55  1 € 3,22 € 4
ON THE WAY

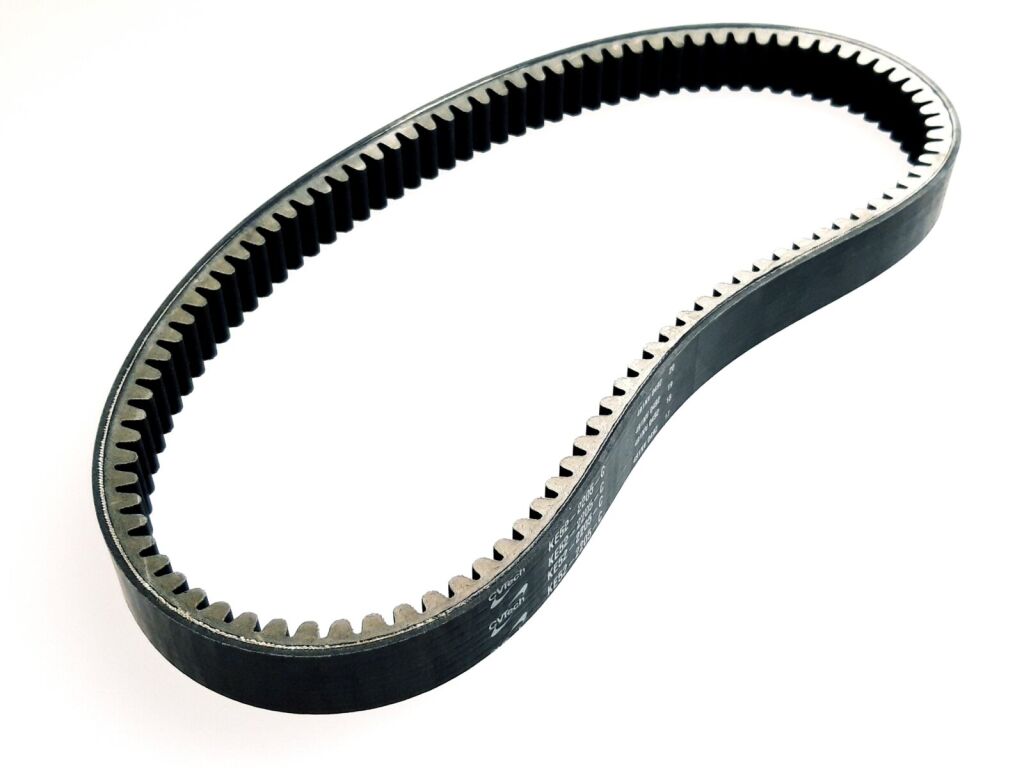

9 Belt (Item nr. 9) 84079 Belt  1 € 337,27 € 408
IN STOCK

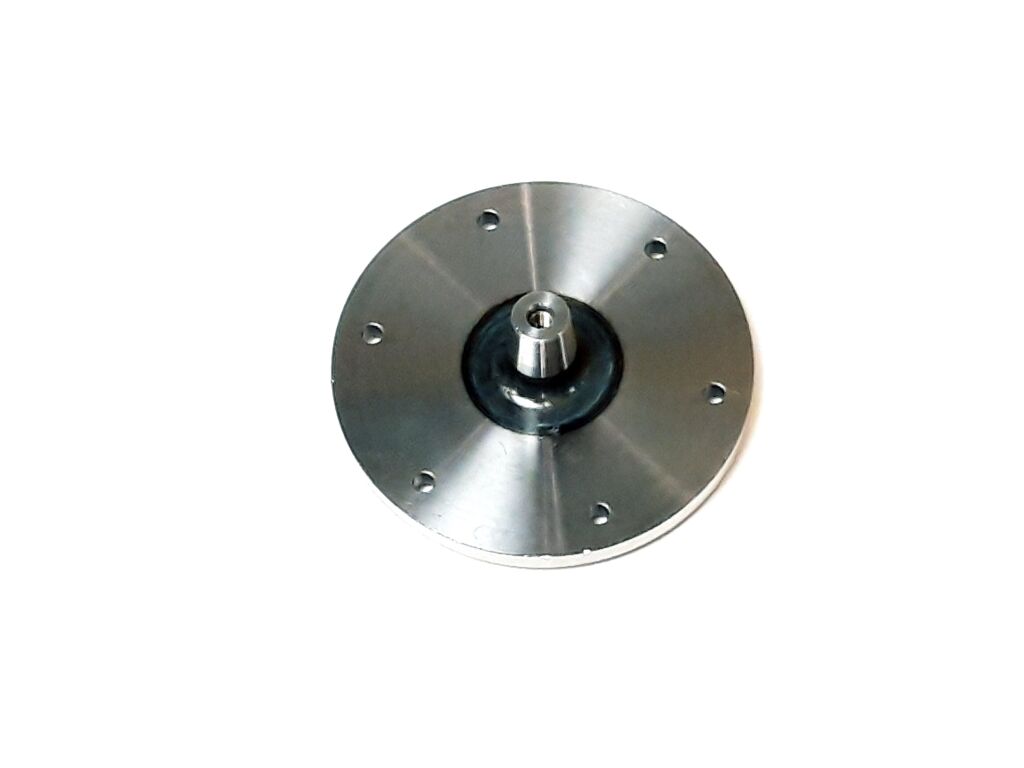

8 Shaft (Item nr. 8) 84162 Shaft  1 € 167,02 € 202
IN STOCK
7 10867 Bolt M8X22  6 € 9,59 € 12
ON REQUEST
6 Drive Pulley Comp. (Item nr. 6) 84067 Drive Pulley Comp.  1 € 1 263,31 € 1 529
IN STOCK
5 84071 Adjust Washer  1 € 10 € 12
ON REQUEST
4 84073 Board Comp.,Drive Pulley  1 € 27,02 € 33
ON REQUEST
3 84072 Fan Comp.,CVT  1 € 18,35 € 22
ON REQUEST
2 BOLT M6X12 (Item nr. 2) 10140B BOLT M6X12  3 € 2,40 € 3
IN STOCK
14 84147 CVT Assy  1 € 1 976,94 € 2 392
ON REQUEST
Product Code LINHAI_1_133_LH800U-2D
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI UTV 800
Select MODEL: LH800U 2D
