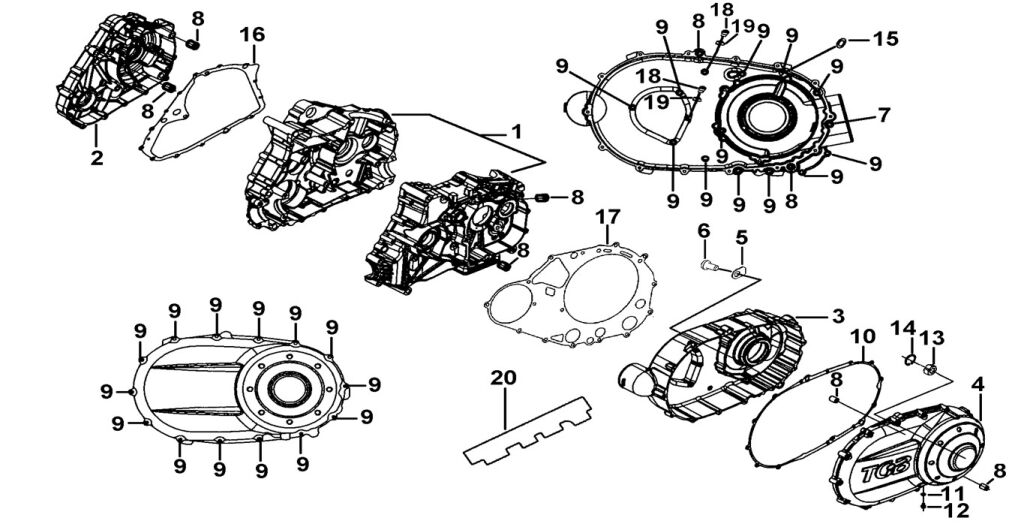

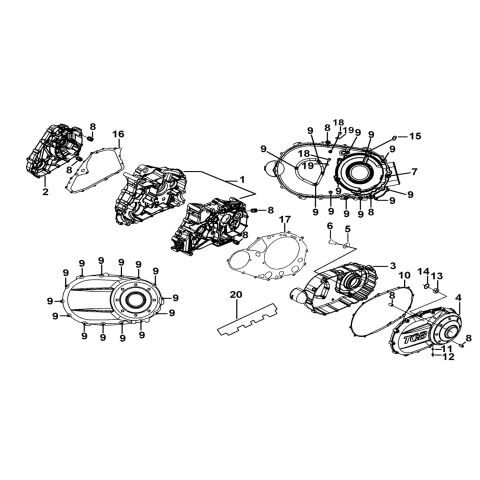

CRANKCASE

TGB
Manufacturer: TGB
Product Code: TGB_1_107_FBH-JJDLE
Select MODEL:
BLADE 600LTX MAX E5
Item nr. Pic. Part nr. Description Count in the table Price for 1 pc Availability
01 926266-S CRANKCASE(INCLUDING SCREW, WASHER )  1 € 533,39 € 645,40
ON REQUEST
12 Bolt, Flange M8x12 (Item nr. 12) GA504SC12 Bolt, Flange M8x12  1 € 2,40 € 2,90
IN STOCK
13 Bearing (Item nr. 13) 924166 Bearing  1 € 10,66 € 12,90
ON REQUEST
14 “C” RING (Item nr. 14) R01901 “C” RING  1 € 2,40 € 2,90
IN STOCK
15 WASHER (Item nr. 15) 925115 WASHER  1 € 2,40 € 2,90
IN STOCK
16 GASKET (Item nr. 16) 924055 GASKET  1 € 17,19 € 20,80
IN STOCK
17 GASKET (Item nr. 17) 924808 GASKET  1 € 20,83 € 25,20
IN STOCK
18 S24626 BOLT, FLANGE 6X48  2 € 2,15 € 2,60
ON REQUEST
19 WASHER, SPRING M6 (Item nr. 19) GA504WS04 WASHER, SPRING M6  2 € 2,40 € 2,90
IN STOCK
11 WASHER (Item nr. 11) W99821 WASHER  1 € 2,40 € 2,90
IN STOCK
10 GASKET, CLUTCH COVER (Item nr. 10) 924051 GASKET, CLUTCH COVER  1 € 16,86 € 20,40
IN STOCK
09 BOLT, FLANGE 6x40 (Item nr. 09) S24610 BOLT, FLANGE 6x40  26 € 2,40 € 2,90
IN STOCK
02 927322 COVER , CRANKCASE LH

FOR W/EPS

1 € 137,44 € 166,30
ON REQUEST
02A COVER , CRANKCASE LH (Item nr. 02A) 927323 COVER , CRANKCASE LH

FOR W/O EPS

1 € 194,96 € 235,90
IN STOCK
03 COVER, CRANKCASE RH (Item nr. 03) 927060 COVER, CRANKCASE RH  1 € 174,96 € 211,70
IN STOCK
04 CLUTCH COVER (Item nr. 04) 925465 CLUTCH COVER  1 € 107,27 € 129,80
IN STOCK
05 CHUCK, BEARING (Item nr. 05) 924185 CHUCK, BEARING  2 € 2,40 € 2,90
IN STOCK
06 SCREW M6 (Item nr. 06) S46603 SCREW M6  2 € 2,40 € 2,90
IN STOCK
07 BOLT, FLANGEM6X74L (Item nr. 07) S24627 BOLT, FLANGEM6X74L  1 € 2,40 € 2,90
IN STOCK
08 PIN, DOWEL (Item nr. 08) P40301 PIN, DOWEL  6 € 2,40 € 2,90
IN STOCK
20 927034 HEAT INSULATION  1 € 17,02 € 20,60
ON REQUEST
