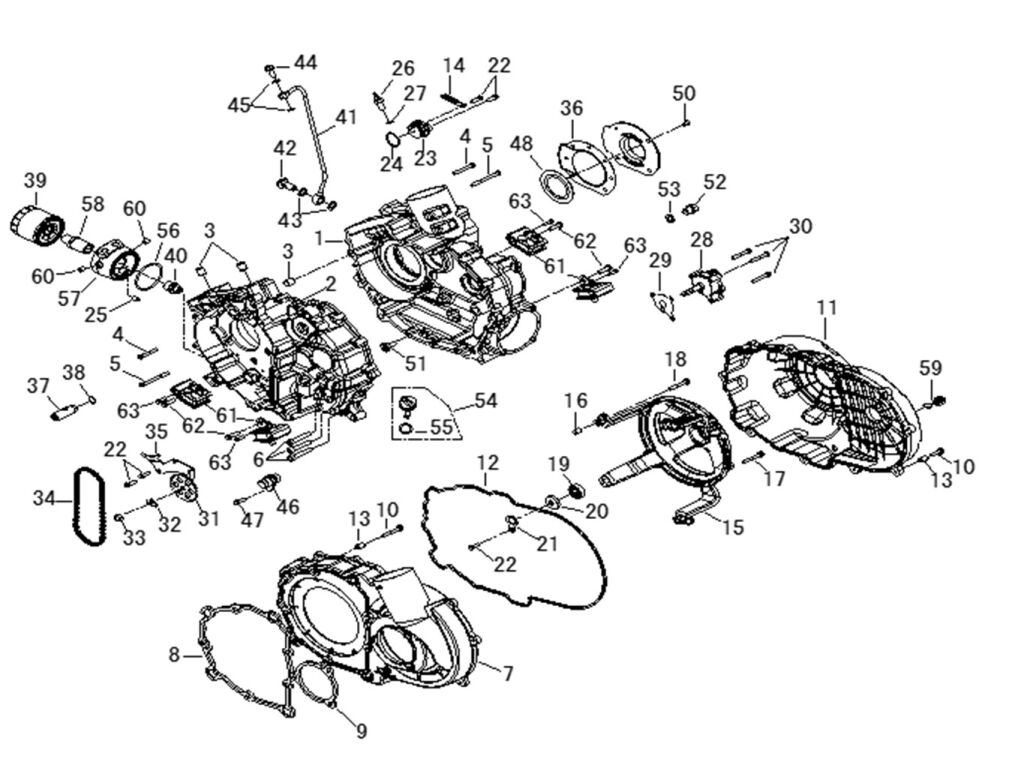

CRANKCASE

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_1_101_MAX_750i_Forest
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
63 Head Cover , Cylinder (Item nr. 63) 91700-06020-08Z Head Cover , Cylinder  4 € 2,48 € 3
IN STOCK
46 R/B 63305-E20-010 Sensor speedometer (Item nr. 46) 63305-E20-000 R/B 63305-E20-010 Sensor speedometer  1 € 34,71 € 42
ON REQUEST
45 Washer, Plate (Copper) (Item nr. 45) 93101-10515-12-1 Washer, Plate (Copper)  2 € 2,48 € 3
ON REQUEST
44 Bolt, Brake Hose (Item nr. 44) 91830-A01-000 Bolt, Brake Hose  1 € 2,48 € 3
IN STOCK
43 Washer, Plain (AL) (Item nr. 43) 93105-12020-20-2 Washer, Plain (AL)  2 € 2,48 € 3
IN STOCK
42 91830-A07-100 Bolt, Brake Hose  1 € 3,22 € 4
ON REQUEST
41 15130-E20-100 PIPE COMP, oil connecter  1 € 31,40 € 38
ON REQUEST
40 Union, Engine Oil Filter (Item nr. 40) 15291-E12-100 Union, Engine Oil Filter  1 € 6,61 € 8
IN STOCK
39 15290-E12-100 R/B 15290-E12-200 FILTER Ass'Y, engine oil filter  1 € 21,49 € 26
IN STOCK
38 O-Ring (Item nr. 38) 96200-138024 O-Ring  1 € 2,48 € 3
IN STOCK
37 15810-E20-000 RELIEF VALVE ASSY  1 € 26,03 € 32
ON REQUEST
35 14520-E20-A00 GUIDE, STOPPER  1
ON REQUEST
Detail

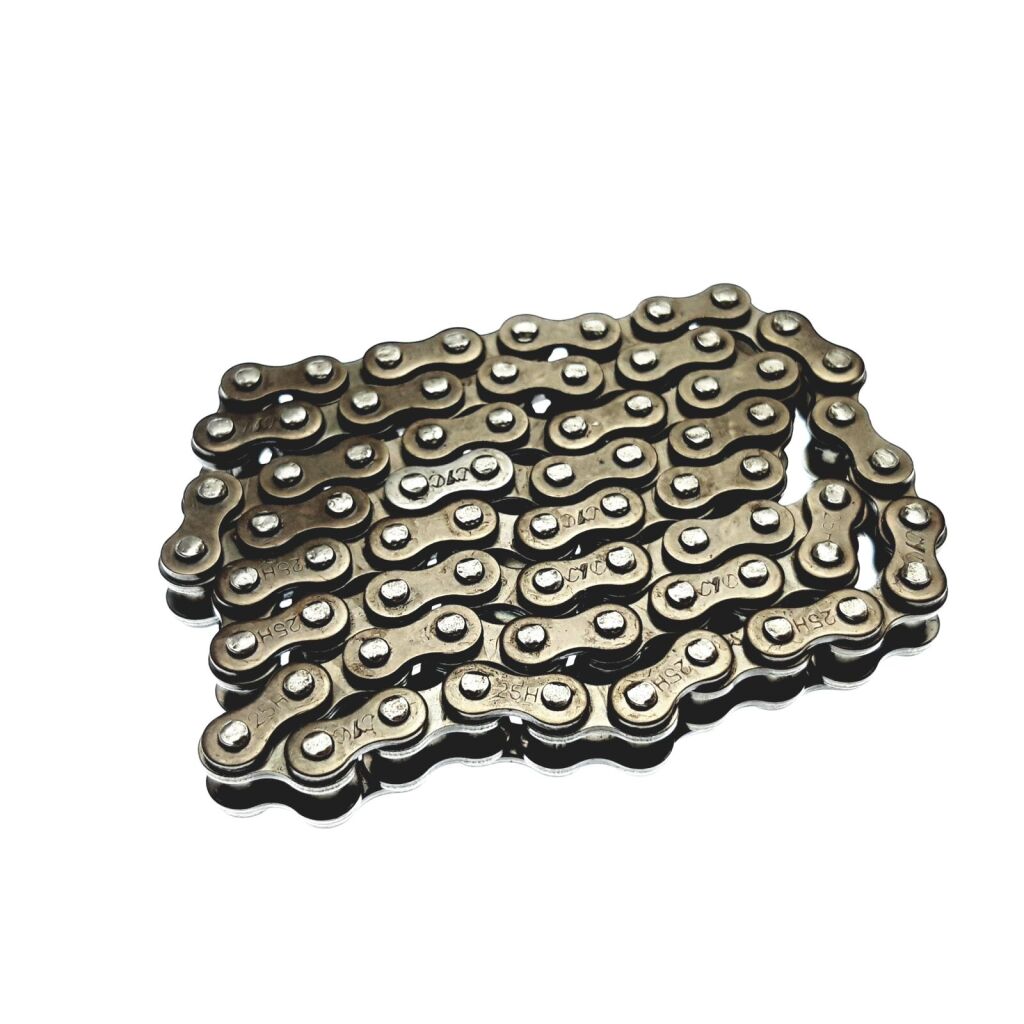

34 Chain, Cam (Item nr. 34) 23319-E20-000 Chain, Cam  1 € 5,79 € 7
IN STOCK
33 92110-10-14C Nut, Hex  1 € 1,90 € 2
ON REQUEST
47 91700-06016-08G-1 Hex. Bolt, Flange  1 € 1,90 € 2
ON REQUEST
48 Plate, Oil Chamber (Item nr. 48) 15150-E20-000 Plate, Oil Chamber  1 € 2,48 € 3
ON REQUEST
62 91700-10035-14W Hex Washer Face Bolt  4 € 1,82 € 2
ON REQUEST
61 Cushion Rubber (Item nr. 61) 93506-A27-000 Cushion Rubber  4 € 42,15 € 51
IN STOCK
60 Bolt, Sealing (Item nr. 60) 91838-A27-000 Bolt, Sealing  2 € 2,48 € 3
IN STOCK
59 PLUG, DRAIN (Item nr. 59) 93671-E20-000 PLUG, DRAIN  1 € 2,48 € 3
IN STOCK
57 15292-E20-000 Adaptor, Oil Filter Block  1 € 43,64 € 53
ON REQUEST
56 Oil-Ring (Item nr. 56) 96200-594031 Oil-Ring  1 € 3,31 € 4
IN STOCK
55 O Ring (Item nr. 55) 96200-180030 O Ring  1 € 2,48 € 3
IN STOCK
54 Oil Level Gauge (Item nr. 54) 15550-A12-000 Oil Level Gauge  1 € 3,31 € 4
ON THE WAY
52 Plug,Oil Pan Drain (Item nr. 52) 91833-E10-201 Plug,Oil Pan Drain  1 € 6,03 € 7
IN STOCK
More variants
51 Cam Chan Tensioner Pivot (Item nr. 51) 14505-E10-100 Cam Chan Tensioner Pivot  2 € 2,48 € 3
ON REQUEST
50 91736-06012Z Bolt, Cross  7
ON REQUEST
Detail
49 11110-E20-000 COVER, CRANK  1 € 22,48 € 27
ON REQUEST

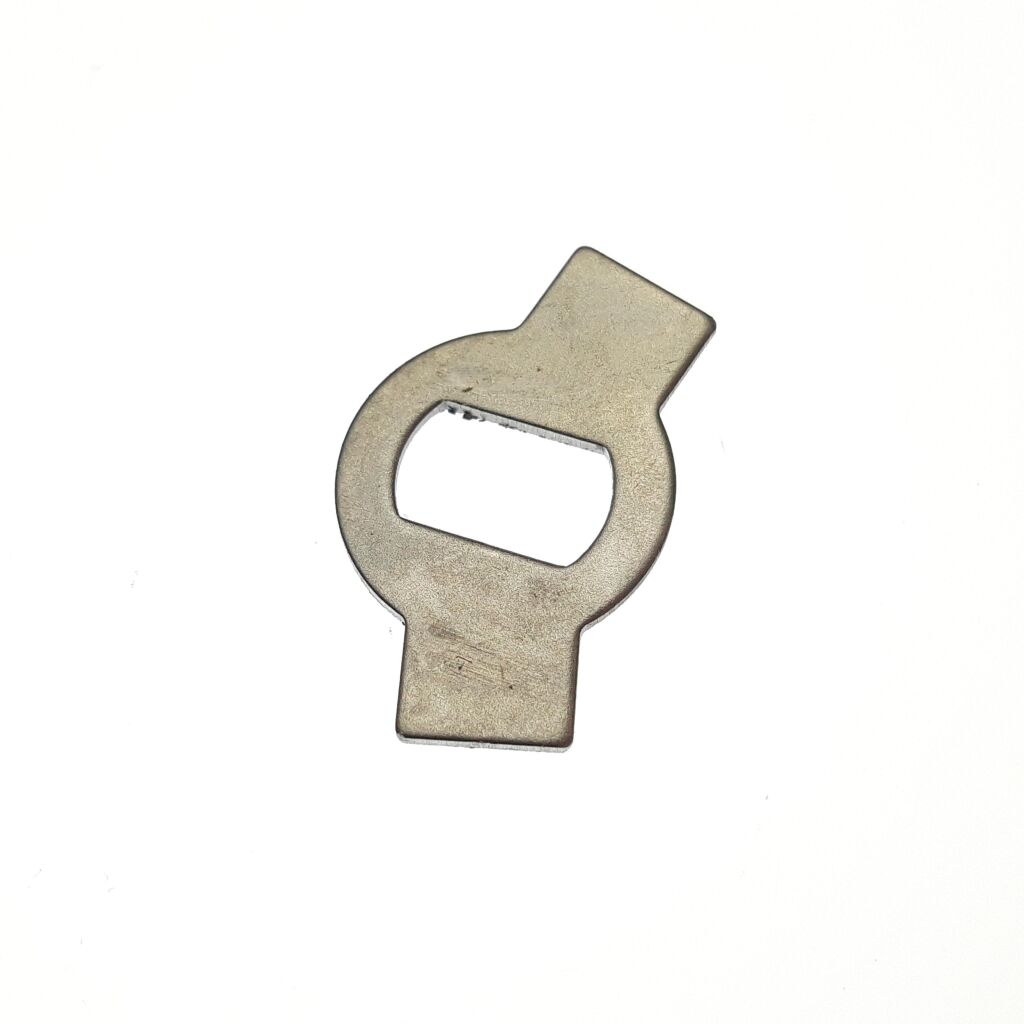

32 WASHER, LOCK (Item nr. 32) 93250-10216-10 WASHER, LOCK  1 € 2,48 € 3
IN STOCK
31 Drive,Gear, Oil-Pump (Item nr. 31) 15110-E20-000 Drive,Gear, Oil-Pump  1 € 14,88 € 18
IN STOCK
30 91700-06040-08Z BOLT, magneto cover  3
ON REQUEST
Detail
14 11115-E12-000 Hook, Fixed Wire (unavailable)  1
ON REQUEST
Detail
13 94001-100130 Pin, Dowel  18 € 1,90 € 2
ON REQUEST
12 O-RING 2, Clutch Outer Cover (Item nr. 12) 11365-E20-000 O-RING 2, Clutch Outer Cover  1 € 11,57 € 14
IN STOCK
11 COVER, clutch outer (Item nr. 11) 11360-E20-000 COVER, clutch outer  1 € 57,02 € 69
IN STOCK
10 91710-06028-10G Hex. Bolt, Flange  20 € 1,90 € 2
ON REQUEST
9 O-RING 2, Transmission (Item nr. 9) 11410-E20-000 O-RING 2, Transmission  1 € 4,13 € 5
IN STOCK
8 O-RING, Clutch Cover (Item nr. 8) 11393-E20-000 O-RING, Clutch Cover  1 € 11,57 € 14
ON REQUEST
7 COVER COMP, clutch (Item nr. 7) 11350-E20-000 COVER COMP, clutch  1 € 52,07 € 63
IN STOCK
6 91760-08045-06Z Hex. Socket Bolt  3
ON REQUEST
Detail
5 91700-06065-08Z Hex. Bolt, Flange  4
ON REQUEST
Detail
3 94001-140160 Pin, Dowel  4 € 2,48 € 3
ON REQUEST
2 11200-E20-000 R/B 11200-E24-000 Crankcase, L  1 € 428,10 € 518
ON REQUEST
15 Housing, Pin Holder (Item nr. 15) 11345-E20-000 Housing, Pin Holder  1 € 58,68 € 71
ON REQUEST
16 Pin, Dowel (Item nr. 16) 94001-100140 Pin, Dowel  2 € 2,48 € 3
IN STOCK
29 GASKET, PUMP COVER (Item nr. 29) 15101-E20-000 GASKET, PUMP COVER  1 € 2,48 € 3
IN STOCK
28 15100-E20-000 R/B 15100-E24-000 Pump, Oil  1 € 60,33 € 73
IN STOCK

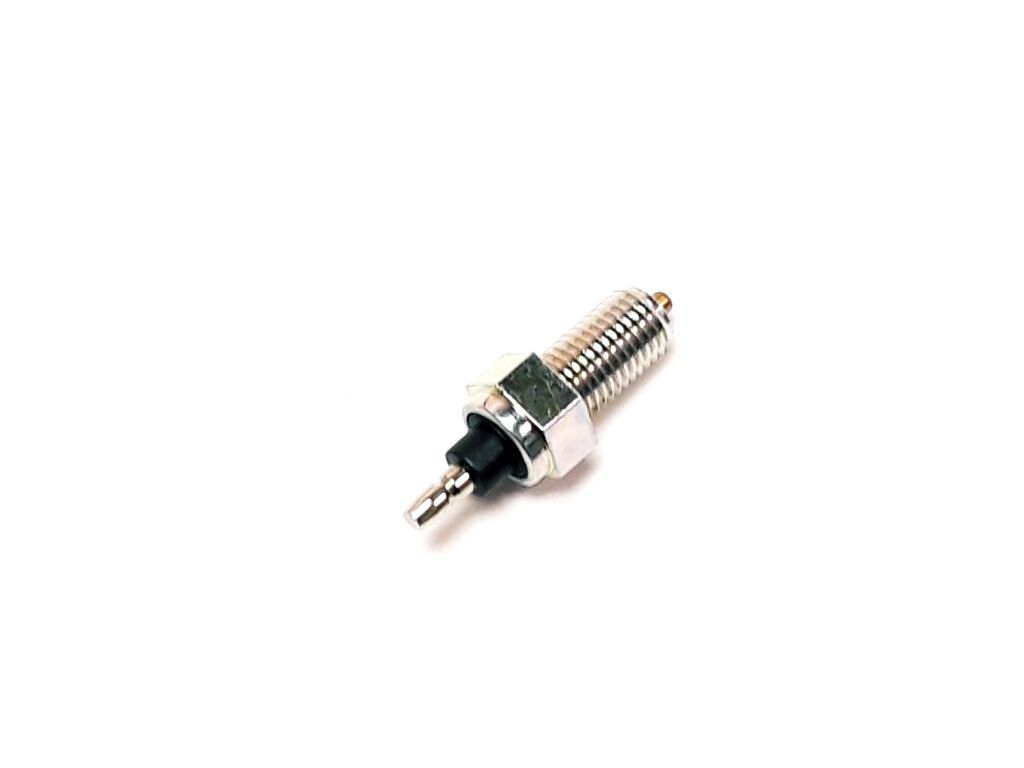

26 SWITCH ASS´Y, gear shift (Item nr. 26) 61210-E20-010 SWITCH ASS´Y, gear shift  1 € 11,57 € 14
IN STOCK
25 Pin, Dowel (Item nr. 25) 94001-080140 Pin, Dowel  1 € 2,48 € 3
IN STOCK
24 96200-333015 Oil-Ring  1
ON REQUEST
Detail
23 61210-E20-001 R/B 61210-E20-002 SWITCH ASS´Y, gear shift  1 € 39,67 € 48
IN STOCK
21 RETAINER, crank shaft oil seal (Item nr. 21) 83121-E12-100 RETAINER, crank shaft oil seal  1 € 2,48 € 3
IN STOCK
20 Seal, Oil (Item nr. 20) 96100-123207 Seal, Oil  1 € 6,61 € 8
IN STOCK

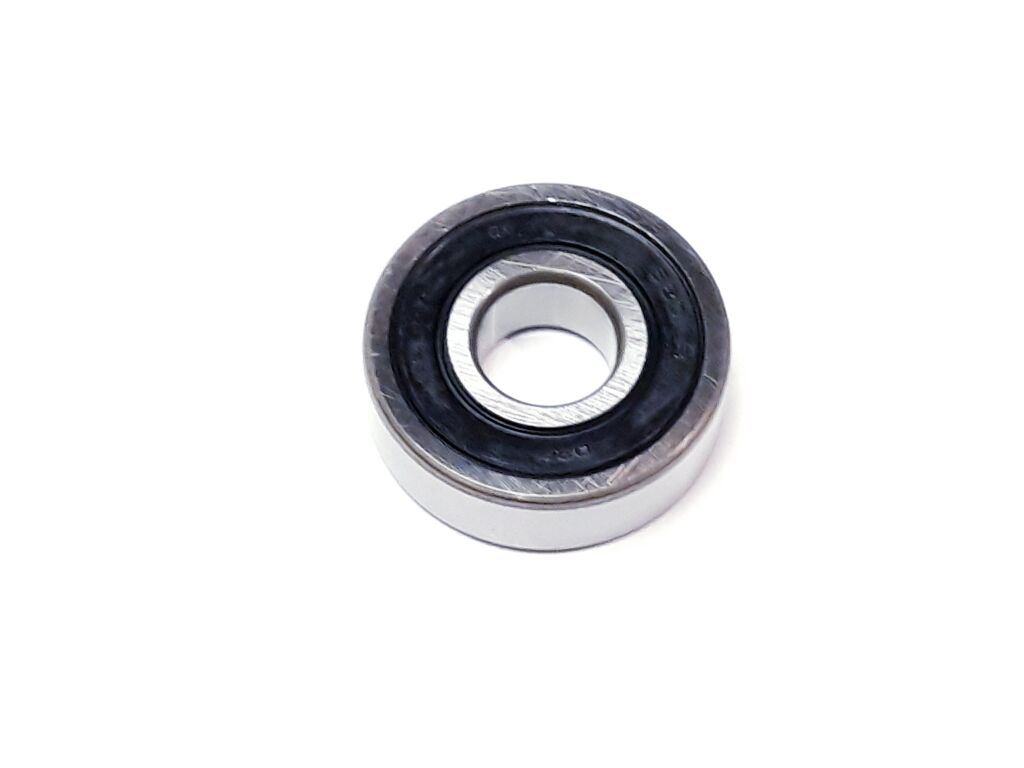

19 bearing, Ball (Item nr. 19) 95100-T6201LLB bearing, Ball  1 € 6,61 € 8
ON REQUEST
18 Hex. Bolt, Flange (Item nr. 18) 91710-06042-10G Hex. Bolt, Flange  2 € 2,48 € 3
IN STOCK
17 BOLT, gear shift lever (Item nr. 17) 91710-06032-10G BOLT, gear shift lever  2 € 2,48 € 3
ON REQUEST
1 11100-E20-000 R/B 11100-E24-000 Crankcase, R.  1 € 433,06 € 524
ON REQUEST
Product Code ACCESS_1_101_MAX_750i_Forest
PARTS CATEGORY: ENGINE PARTS
Select BRAND: ACCESS
Select TYPE: ACCESS MAX
Select MODEL: MAX 750 EFI FOREST
