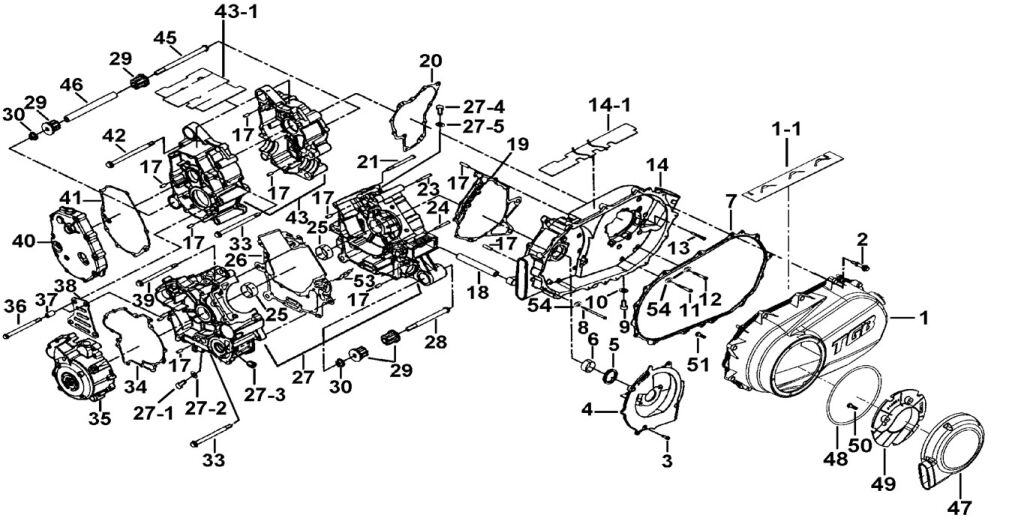

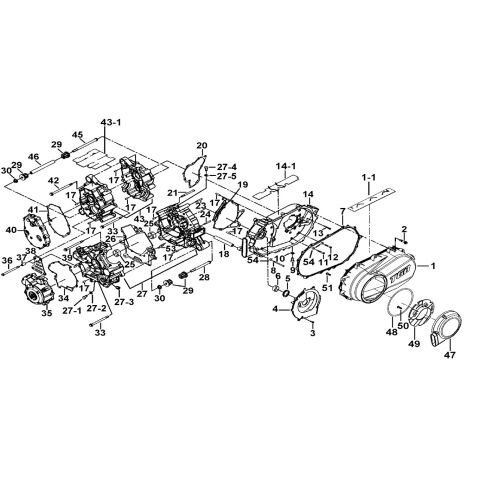

CRANKCASE

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_105_EST-E2
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
54 WASHER, SPRING M6 (Item nr. 54) GA504WS04 WASHER, SPRING M6  27 € 2,40 € 3
IN STOCK
37 P40501 PIN, DOWEL  4 € 2,81 € 3
ON REQUEST
36 S20219 BOLT, FLANGE  4 € 8,84 € 11
ON REQUEST
35 COVER , CRANKCASE RH (Item nr. 35) 910051 COVER , CRANKCASE RH  1 € 105,04 € 127
IN STOCK
34 GASKET (Item nr. 34) 910052 GASKET  1 € 16,45 € 20
IN STOCK
33 BOLT, FLANGE (Item nr. 33) S20057 BOLT, FLANGE  2 € 6,12 € 7
IN STOCK
30 NUT, SELF LOCK M12 (Item nr. 30) N25201 NUT, SELF LOCK M12  2 € 2,40 € 3
IN STOCK
29 BUSH (Item nr. 29) 910088 BUSH  4 € 42,56 € 51
IN STOCK
28 S20217 BOLT, FLANGE M6X25  1 € 1,98 € 2
ON REQUEST
27A R/B 911108A-A CRANKCASE (Item nr. 27A) 911108-A R/B 911108A-A CRANKCASE

101017→

1 € 467,69 € 566
ON REQUEST
27.5 WASHER (Item nr. 27-5) W99719 WASHER  1 € 1,98 € 2
IN STOCK
27.4 SCREW, HEX. SCCKET (Item nr. 27-4) S70701 SCREW, HEX. SCCKET  1 € 1,98 € 2
IN STOCK
27.3 SCREW (Item nr. 27-3) 927109 SCREW  1 € 7,52 € 9
IN STOCK
27.2 WASHER 12mm (Item nr. 27-2) W99201 WASHER 12mm

101452→

1 € 2,40 € 3
ON REQUEST
27.1A SCREW, SOCKET (Item nr. 27-1A) S72202 SCREW, SOCKET

101452→

1 € 2,40 € 3
IN STOCK
38 910479 CONNECTING PLATE  1 € 11,65 € 14
ON REQUEST
39 S20055 BOLT, FLANGE  1 € 5,12 € 6
ON REQUEST
53 STOPPER PLATE (Item nr. 53) 910669 STOPPER PLATE  1 € 3,14 € 4
ON REQUEST
51 S08601 SCREW, WASHER  5 € 1,98 € 2
ON REQUEST
50 BOLT, FLANGE M6x16 (Item nr. 50) S24603 BOLT, FLANGE M6x16  3 € 2,40 € 3
ON THE WAY
49 AIR DEFLECTOR (Item nr. 49) 910591 AIR DEFLECTOR

001367→

1 € 13,88 € 17
ON REQUEST
48 O RING (Item nr. 48) 910673 O RING

001367→

1 € 5,37 € 6
IN STOCK
47 CAP (Item nr. 47) 910667 CAP

001367→

1 € 57,36 € 69
ON REQUEST
46 SPACER (Item nr. 46) 910476 SPACER  1 € 7,36 € 9
IN STOCK
45 SHAFT, FRONT WHEEL 12X227 (Item nr. 45) S20203 SHAFT, FRONT WHEEL 12X227  1 € 16,53 € 20
IN STOCK
43A 911332A R/B 911571A TRANSMISSION HOUSING

101017→

1 € 280,91 € 340
ON REQUEST
43.1 HEAT INSULATION (Item nr. 43-1) 911323 HEAT INSULATION  1 € 17,93 € 22
IN STOCK
43 TRANSMISSION HOUSING (unavailable) (Item nr. 43) 910659A TRANSMISSION HOUSING (unavailable)

←101016

1
ON REQUEST
42 BOLT, FLANGE (Item nr. 42) S20056 BOLT, FLANGE  1 € 5,54 € 7
IN STOCK
41 GASKET (Item nr. 41) 910478 GASKET  1 € 16,78 € 20
IN STOCK
40 TRANSMISSION COVER, RH (Item nr. 40) 910265 TRANSMISSION COVER, RH  1 € 50,99 € 62
IN STOCK
27.1 S17201 BOLT, FLANGE

←101451

1 € 1,98 € 2
ON REQUEST
27 CRANKCASE (Item nr. 27) 910310 CRANKCASE

←101016

1 € 427,77 € 518
IN STOCK
26 GASKET (Item nr. 26) 910674 GASKET  1 € 39,75 € 48
IN STOCK
11A BOLT, FLANGE (Item nr. 11A) S70815 BOLT, FLANGE

101017→

25 € 2,40 € 3
IN STOCK
11 BOLT,FLANGE 6X35 (Item nr. 11) S24615 BOLT,FLANGE 6X35

←101016

25 € 4,79 € 6
IN STOCK
10 WASHER (Item nr. 10) W99821 WASHER  1 € 2,40 € 3
IN STOCK
09 Bolt, Flange M8x12 (Item nr. 09) GA504SC12 Bolt, Flange M8x12  1 € 2,40 € 3
IN STOCK
08A S70822 SCREW M8*P1.25*65L

101017→

1 € 1,98 € 2
ON REQUEST
08 S24612 BOLT,FLANGE 6X65

←101016

1 € 5,37 € 6
ON REQUEST
07 GASKET (Item nr. 07) 910123 GASKET  1 € 18,26 € 22
IN STOCK
06 PLAIN BEARING (Item nr. 06) 910337 PLAIN BEARING  2 € 32,07 € 39
ON REQUEST
05 OIL SEAL 34x52x8 (Item nr. 05) 910563 OIL SEAL 34x52x8  1 € 15,54 € 19
IN STOCK
04 AIR DUCTING GUIDE (Item nr. 04) 911106 AIR DUCTING GUIDE  1 € 27,19 € 33
IN STOCK
02 BOLT (Item nr. 02) 910278 BOLT  12 € 3,47 € 4
IN STOCK
01A CVT COVER COMP. (Item nr. 01A) 910666A CVT COVER COMP.

001367→

1 € 85,45 € 103
ON REQUEST
01.1 HEAT INSULATION (Item nr. 01-1) 910640 HEAT INSULATION  1 € 6,12 € 7
IN STOCK
12 S70617 SCREW,SOCKET HEAD

←101016

1 € 2,15 € 3
ON REQUEST
25 PLAIN BEARING (Item nr. 25) 910250 PLAIN BEARING  4 € 16,69 € 20
IN STOCK
24 BOLT, FLANGE 6X25 (Item nr. 24) S24605 BOLT, FLANGE 6X25  2 € 2,40 € 3
IN STOCK
23 BOLT, FLANGE (Item nr. 23) S24621 BOLT, FLANGE  13 € 2,40 € 3
IN STOCK
21 BOLT,FLANGE 8*25 (Item nr. 21) S20830 BOLT,FLANGE 8*25  4 € 3,31 € 4
IN STOCK
20A GASKET (Item nr. 20A) 911115 GASKET

101017→

1 € 21,98 € 27
IN STOCK
20 GASKET (Item nr. 20) 910576 GASKET

←101016

1 € 52,98 € 64
IN STOCK
19A R/B 910480 GASKET (Item nr. 19A) 911116 R/B 910480 GASKET

101017→

1 € 29,26 € 35
ON REQUEST
19 GASKET (Item nr. 19) 910480 GASKET

←101016

1 € 28,43 € 34
ON THE WAY
18 SPACER (Item nr. 18) 910524 SPACER  1 € 7,69 € 9
IN STOCK
17 PIN, DOWEL (NR 8*14L) (Item nr. 17) P30802 PIN, DOWEL (NR 8*14L)  10 € 1,98 € 2
IN STOCK

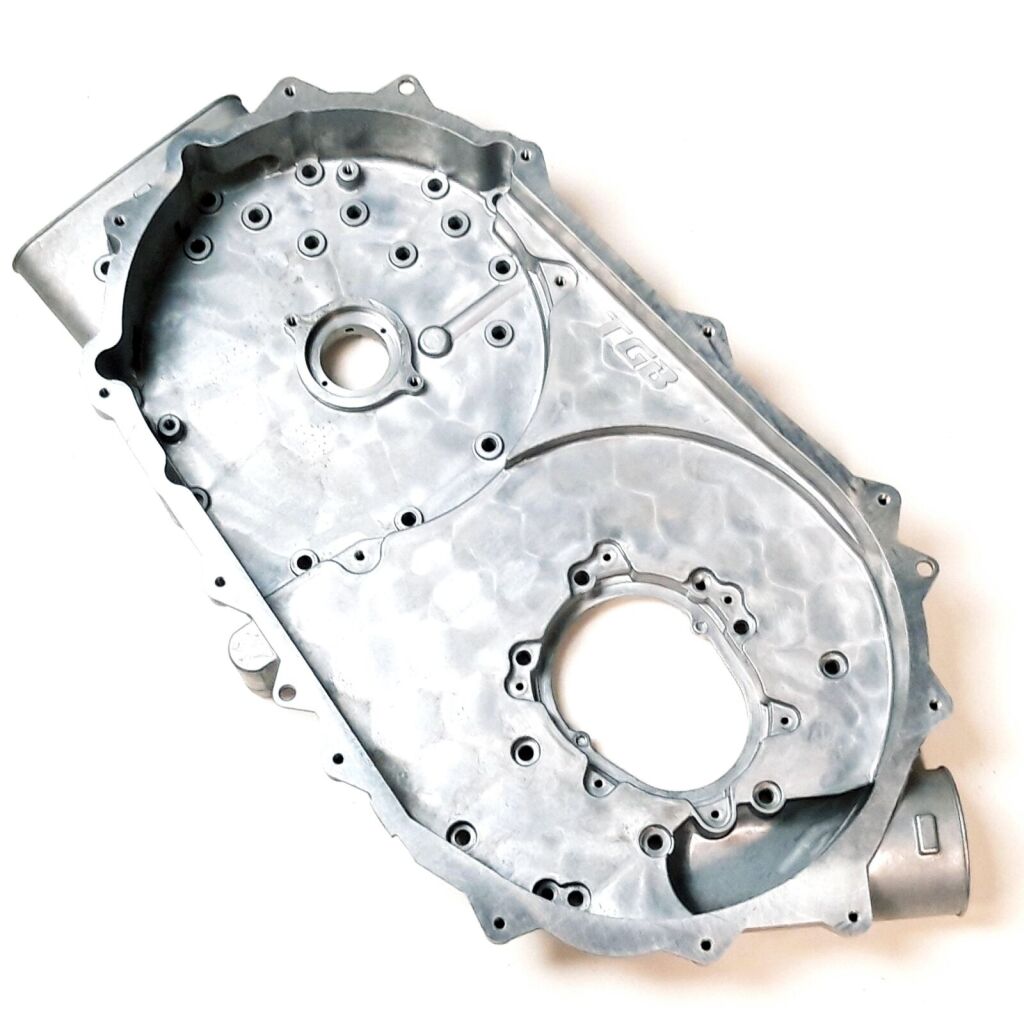

14A CRANKCASE COVER, LH (Item nr. 14A) 911107A CRANKCASE COVER, LH

101017→

1 € 241,74 € 293
IN STOCK
14.1 910558 HEAT INSULATION  1 € 15,21 € 18
ON REQUEST
14 CRANKCASE COVER, LH (Item nr. 14) 910111A CRANKCASE COVER, LH

←101016

1 € 229,67 € 278
IN STOCK
13 POSITION SCREW (Item nr. 13) 910475 POSITION SCREW  2 € 1,98 € 2
IN STOCK
01 CVT COVER (Item nr. 01) 910112-M CVT COVER

←001366

1 € 72,31 € 88
ON THE WAY
Product Code TGB_1_105_EST-E2
PARTS CATEGORY: ENGINE PARTS
Select MODEL: BLADE 1000LT E2
Select BRAND: TGB
Select TYPE: BLADE 1000
