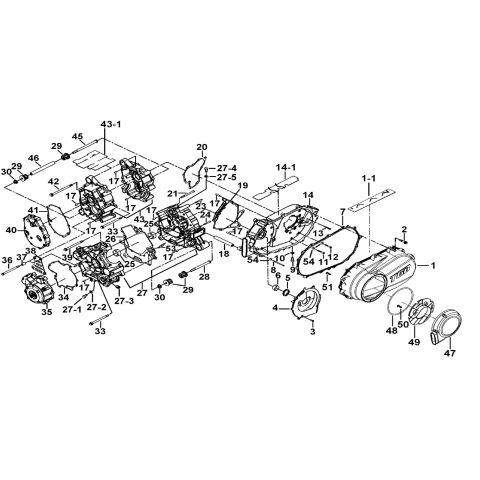

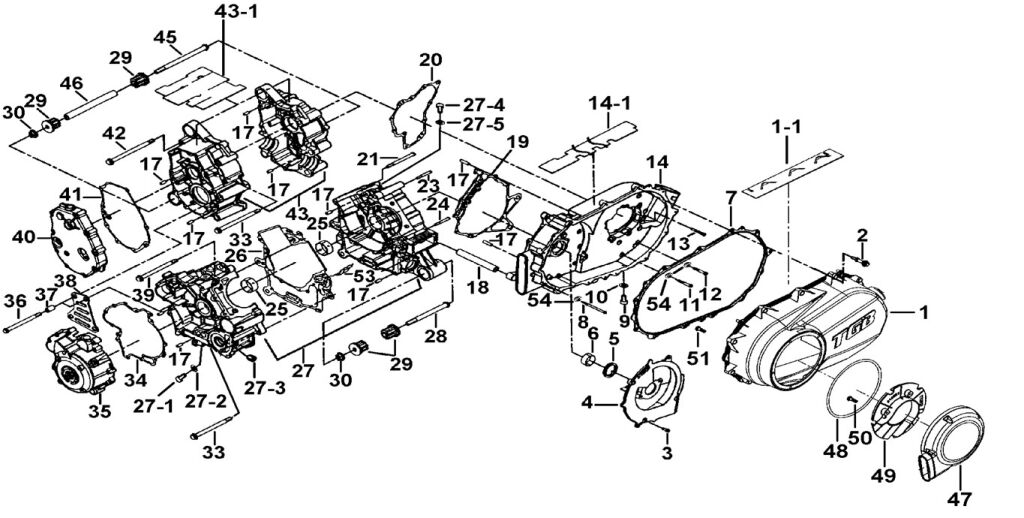

CRANKCASE

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_105_ETT
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 CVT COVER COMP. (Item nr. 01) 910666A CVT COVER COMP.  1 € 85,45 € 103
ON REQUEST
27 R/B 911108A-A CRANKCASE (Item nr. 27) 911108-A R/B 911108A-A CRANKCASE  1 € 467,69 € 566
ON REQUEST
27.2 WASHER 12mm (Item nr. 27-2) W99201 WASHER 12mm  1 € 2,40 € 3
ON REQUEST
27.3 SCREW (Item nr. 27-3) 927109 SCREW  1 € 7,52 € 9
IN STOCK
29 BUSH (Item nr. 29) 910088 BUSH  4 € 42,56 € 51
IN STOCK
30 NUT, SELF LOCK M12 (Item nr. 30) N25201 NUT, SELF LOCK M12  2 € 2,40 € 3
IN STOCK
33 BOLT, FLANGE (Item nr. 33) S20057 BOLT, FLANGE  2 € 6,12 € 7
IN STOCK
34 GASKET (Item nr. 34) 910052 GASKET  1 € 16,45 € 20
IN STOCK
41 GASKET (Item nr. 41) 910478 GASKET  1 € 16,78 € 20
IN STOCK
45 SHAFT, FRONT WHEEL 12X227 (Item nr. 45) S20203 SHAFT, FRONT WHEEL 12X227  1 € 16,53 € 20
IN STOCK
47 CAP (Item nr. 47) 910667 CAP  1 € 57,36 € 69
ON REQUEST
48 O RING (Item nr. 48) 910673 O RING  1 € 5,37 € 6
IN STOCK
49 AIR DEFLECTOR (Item nr. 49) 910591 AIR DEFLECTOR  1 € 13,88 € 17
ON REQUEST
03 BOLT, FLANGE M6x16 (Item nr. 03) S24603 BOLT, FLANGE M6x16  6 € 2,40 € 3
ON THE WAY
53 STOPPER PLATE (Item nr. 53) 910669 STOPPER PLATE  1 € 3,14 € 4
ON REQUEST
54 WASHER, SPRING M6 (Item nr. 54) GA504WS04 WASHER, SPRING M6  27 € 2,40 € 3
IN STOCK
26 GASKET (Item nr. 26) 910674 GASKET  1 € 39,75 € 48
IN STOCK
25 PLAIN BEARING (Item nr. 25) 910250 PLAIN BEARING  4 € 16,69 € 20
IN STOCK
02 BOLT (Item nr. 02) 910278 BOLT  12 € 3,47 € 4
IN STOCK
04 AIR DUCTING GUIDE (Item nr. 04) 911106 AIR DUCTING GUIDE  1 € 27,19 € 33
IN STOCK
05 OIL SEAL 34x52x8 (Item nr. 05) 910563 OIL SEAL 34x52x8  1 € 15,54 € 19
IN STOCK
06 PLAIN BEARING (Item nr. 06) 910337 PLAIN BEARING  2 € 32,07 € 39
ON REQUEST
07 GASKET (Item nr. 07) 910123 GASKET  1 € 18,26 € 22
IN STOCK
09 Bolt, Flange M8x12 (Item nr. 09) GA504SC12 Bolt, Flange M8x12  1 € 2,40 € 3
IN STOCK
10 WASHER (Item nr. 10) W99821 WASHER  1 € 2,40 € 3
IN STOCK
11 BOLT, FLANGE (Item nr. 11) S70815 BOLT, FLANGE  25 € 2,40 € 3
IN STOCK
14 CRANKCASE COVER, LH (Item nr. 14) 911107A CRANKCASE COVER, LH  1 € 241,74 € 293
IN STOCK
19 R/B 910480 GASKET (Item nr. 19) 911116 R/B 910480 GASKET  1 € 29,26 € 35
ON REQUEST
20 GASKET (Item nr. 20) 911115 GASKET  1 € 21,98 € 27
IN STOCK
23 BOLT, FLANGE (Item nr. 23) S24621 BOLT, FLANGE  13 € 2,40 € 3
IN STOCK
24 BOLT, FLANGE 6X25 (Item nr. 24) S24605 BOLT, FLANGE 6X25  2 € 2,40 € 3
IN STOCK
27.1 SCREW, SOCKET (Item nr. 27-1) S72202 SCREW, SOCKET  1 € 2,40 € 3
IN STOCK
Product Code TGB_1_105_ETT
PARTS CATEGORY: ENGINE PARTS
Select MODEL: BLADE 1000LT T3b
Select BRAND: TGB
Select TYPE: BLADE 1000
