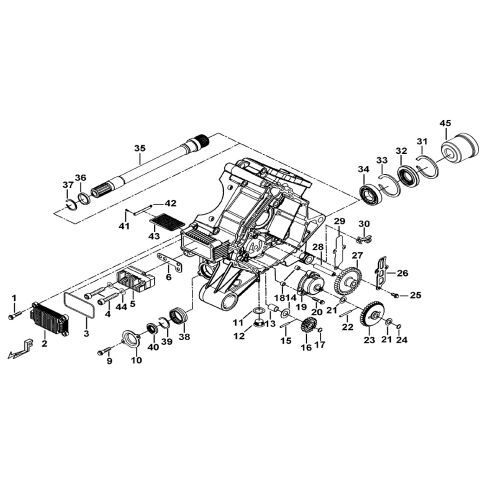

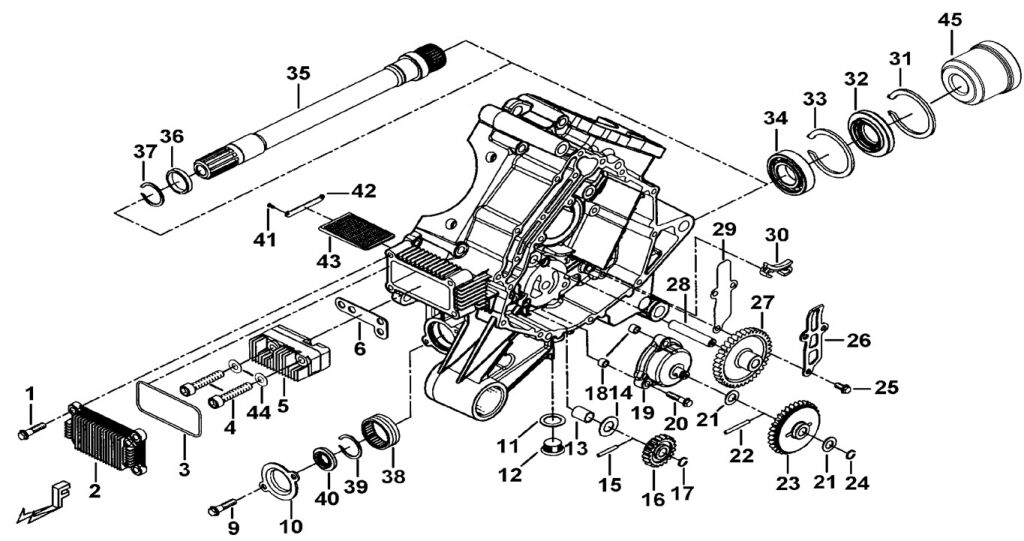

CRANKCASE LH.

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_107_EST-JJ
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
45 SHAFT BOOT (Item nr. 45) 911027 SHAFT BOOT  1 € 3,55 € 4
IN STOCK
33 C CLIP (Item nr. 33) R01101 C CLIP  1 € 4,21 € 5
IN STOCK
32 OIL SEAL (Item nr. 32) 910494 OIL SEAL  1 € 16,61 € 20
IN STOCK
30 CHAIN GUIDE, LH (Item nr. 30) 910078 CHAIN GUIDE, LH  1 € 3,22 € 4
IN STOCK
29 VALVE PLATE (Item nr. 29) 910072 VALVE PLATE  1 € 4,13 € 5
IN STOCK
28 SHAFT, IDLE GEAR (Item nr. 28) 910028 SHAFT, IDLE GEAR  1 € 6,36 € 8
IN STOCK
27 IDEAL GEAR (Item nr. 27) 910021 IDEAL GEAR  1 € 33,64 € 41
IN STOCK
26 REED VALVE STOP (Item nr. 26) 910394 REED VALVE STOP  1 € 4,13 € 5
IN STOCK
34 BALL BEARING (Item nr. 34) 910066 BALL BEARING  1 € 17,52 € 21
IN STOCK
35 TRANSMISSION SHAFT (Item nr. 35) 910495 TRANSMISSION SHAFT  1 € 185,12 € 224
IN STOCK
36 SPACER (Item nr. 36) 910157 SPACER  1 € 5,79 € 7
IN STOCK
44 WASHER (Item nr. 44) W99810 WASHER  2 € 2,40 € 3
IN STOCK
43 STRAINER (Item nr. 43) 910550 STRAINER  1 € 13,22 € 16
IN STOCK IN 5 days
42 RETAINING PLATE (Item nr. 42) 910551 RETAINING PLATE  1 € 1,98 € 2
IN STOCK
41 SCREW, SOCKET HEAD (Item nr. 41) S70301 SCREW, SOCKET HEAD  2 € 1,98 € 2
IN STOCK
40 OIL SEAL (Item nr. 40) 910117 OIL SEAL  1 € 2,40 € 3
IN STOCK
39 "C" CLIP (Item nr. 39) R01602 "C" CLIP  1 € 2,15 € 3
IN STOCK
38 NEEDLE BEARING (Item nr. 38) 910118 NEEDLE BEARING  1 € 41,49 € 50
IN STOCK
37 “C” CLIP, REVERSE GEAR (Item nr. 37) R00206 “C” CLIP, REVERSE GEAR  1 € 2,40 € 3
IN STOCK
25 BOLT, FLANGE 6X12 (Item nr. 25) S24604 BOLT, FLANGE 6X12  3 € 2,40 € 3
IN STOCK
24 "C" RING (Item nr. 24) 924149 "C" RING  1 € 2,40 € 3
IN STOCK
23 OIL PUMP GEAR (Item nr. 23) 910320 OIL PUMP GEAR  1 € 47,60 € 58
IN STOCK
11 WASHER (Item nr. 11) W99639 WASHER  1 € 1,98 € 2
IN STOCK IN 5 days
10 SEAL COVER (Item nr. 10) 910539 SEAL COVER  1 € 3,55 € 4
IN STOCK
06 911617 OIL GASKET  1 € 5,37 € 6
ON REQUEST
05 OIL RADIATOR (Item nr. 05) 911089 OIL RADIATOR  1 € 47,44 € 57
IN STOCK
04 BOLT, FLANGE (Item nr. 04) S70821 BOLT, FLANGE  2 € 4,96 € 6
IN STOCK
03 O-RING (Item nr. 03) 910317 O-RING  1 € 2,40 € 3
ON REQUEST
02 CAP, OIL RADIATOR (Item nr. 02) 910316 CAP, OIL RADIATOR  1 € 17,52 € 21
IN STOCK
12 SCREW (Item nr. 12) 924339 SCREW  1 € 5,79 € 7
IN STOCK
13 BUSHING (Item nr. 13) 910664 BUSHING  1 € 25,37 € 31
IN STOCK
14 WASHER (Item nr. 14) W99218 WASHER  1 € 2,40 € 3
IN STOCK
22 PIN, DOWEL (Item nr. 22) 910634 PIN, DOWEL  1 € 2,40 € 3
IN STOCK
21 WASHER, DRIVEN GEAR (Item nr. 21) 924147 WASHER, DRIVEN GEAR  2 € 2,40 € 3
IN STOCK
20 BOLT,FLANGE M6X25 (Item nr. 20) 911360 BOLT,FLANGE M6X25  3 € 1,98 € 2
IN STOCK
19 OIL PUMP (Item nr. 19) 910333 OIL PUMP  1 € 44,05 € 53
IN STOCK
18 PIN, DOWEL 6,5X9X10 (Item nr. 18) GA504PN02 PIN, DOWEL 6,5X9X10  2 € 2,40 € 3
IN STOCK
17 "C" RING (Item nr. 17) R00703 "C" RING  1 € 2,40 € 3
IN STOCK
16 WATER PUMP GEAR (Item nr. 16) 910023 WATER PUMP GEAR  1 € 33,64 € 41
IN STOCK
15 PIN (Item nr. 15) P30406 PIN  1 € 2,40 € 3
IN STOCK
01 SCREW, SOCKET HEAD M6x20 (Item nr. 01) S24616 SCREW, SOCKET HEAD M6x20  4 € 4,79 € 6
IN STOCK
Product Code TGB_1_107_EST-JJ
PARTS CATEGORY: ENGINE PARTS
Select BRAND: TGB
Select TYPE: BLADE 1000LTX
Select MODEL: BLADE 1000LTX MAX E5
