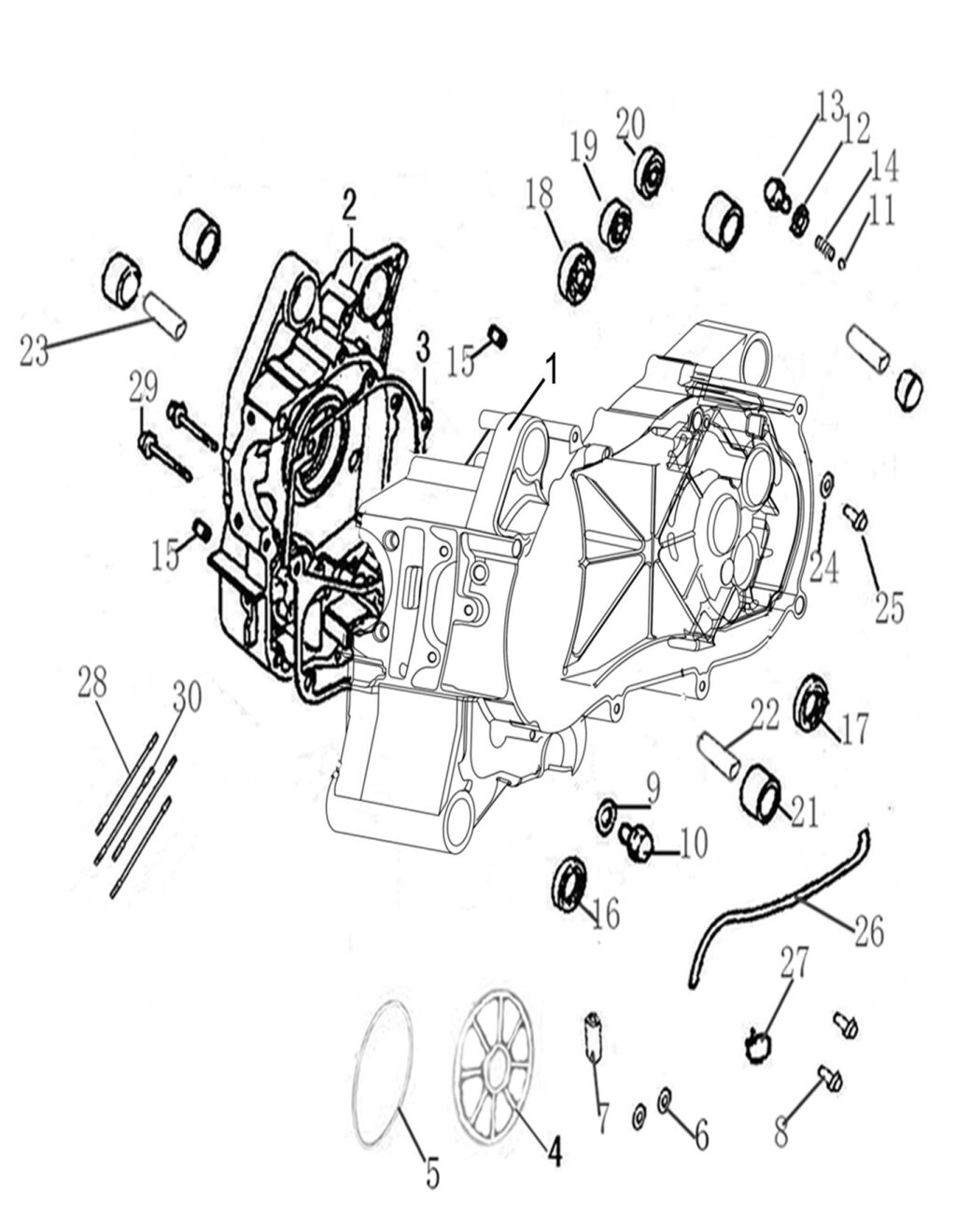

Crankcase Comp,Left\Right

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_118_M150 T3a
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
12 36647 Washer 14.2×22×1.3  1 € 9,59 € 12
ON REQUEST

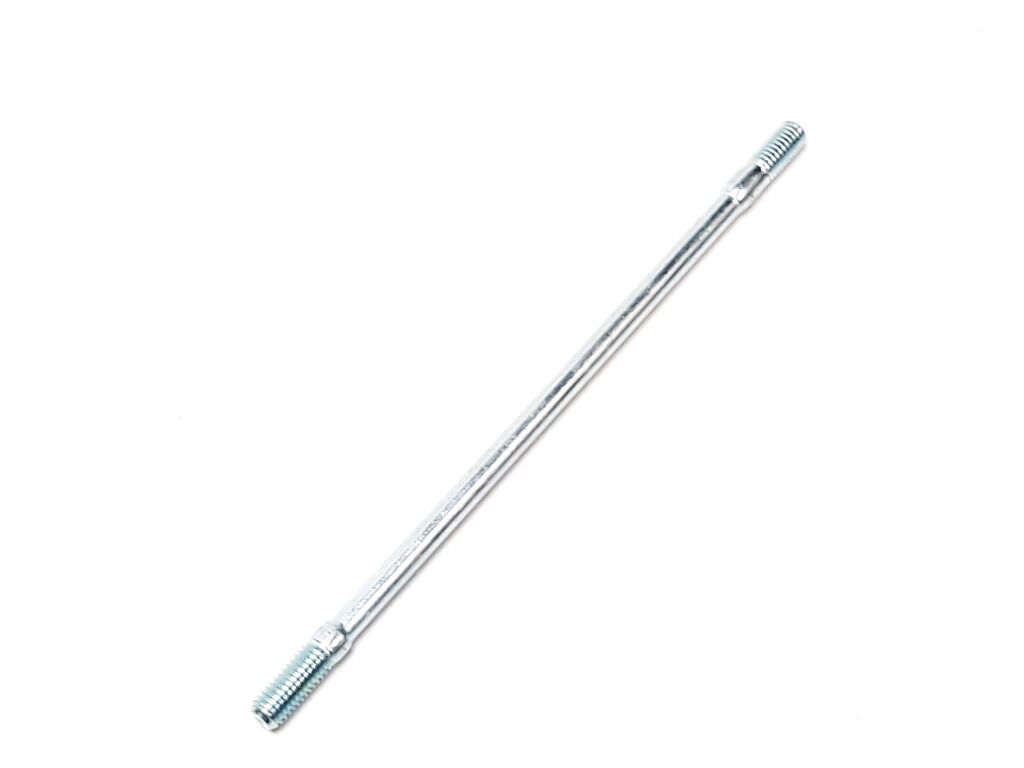

28 Bolt,Cylinder Stud M8×196 (Item nr. 28) 36658 Bolt,Cylinder Stud M8×196  2 € 4,38 € 5
IN STOCK
29 Bolt M6×50 (Item nr. 29) 10349 Bolt M6×50  2 € 2,40 € 3
IN STOCK
30 Bolt,Cylinder Stud M8×187.5 (Item nr. 30) 36659 Bolt,Cylinder Stud M8×187.5  2 € 4,13 € 5
IN STOCK
1 Crankcase, LH (Item nr. 1) 36640 Crankcase, LH  1 € 254,30 € 308
IN STOCK
2 Crankcase, RH (Item nr. 2) 36641 Crankcase, RH  1 € 125,21 € 151
IN STOCK

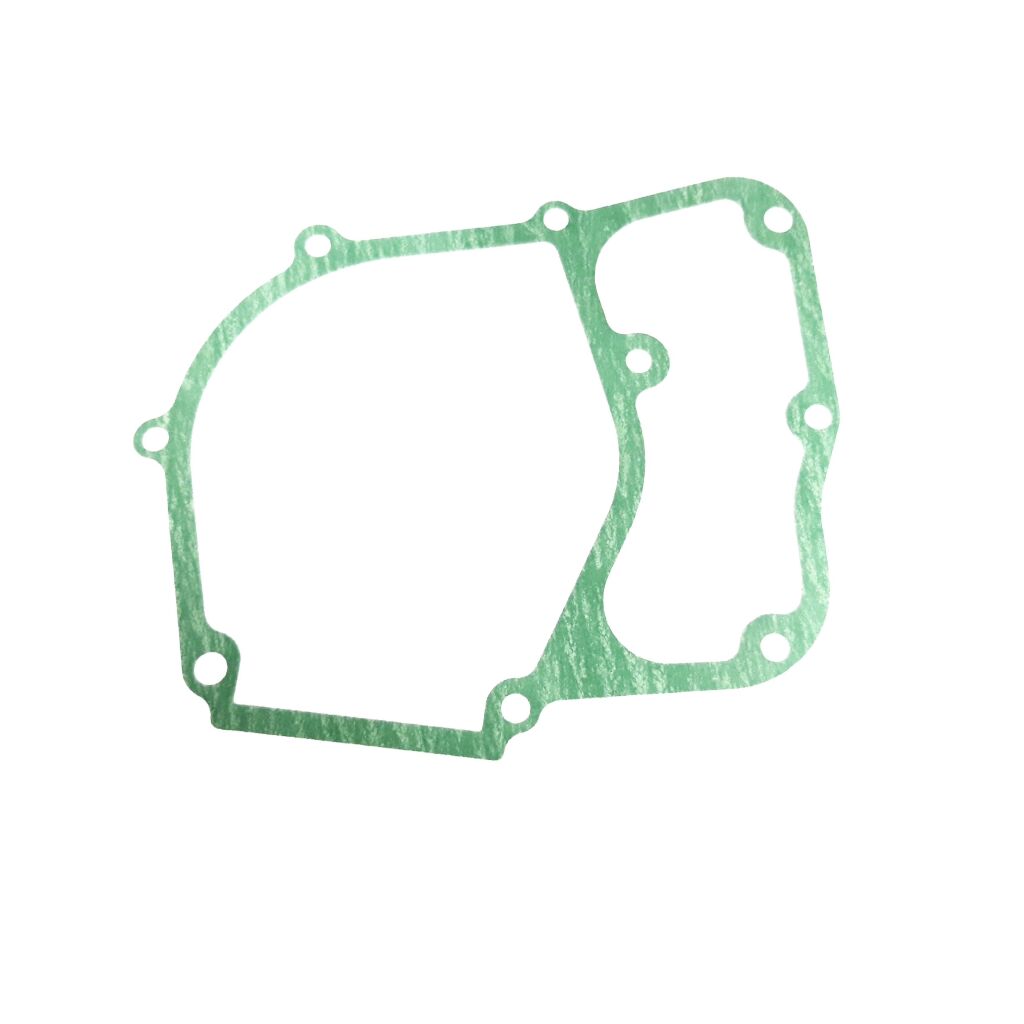

3 Gasket Crankcase (Item nr. 3) 36642 Gasket Crankcase  1 € 2,56 € 3
IN STOCK

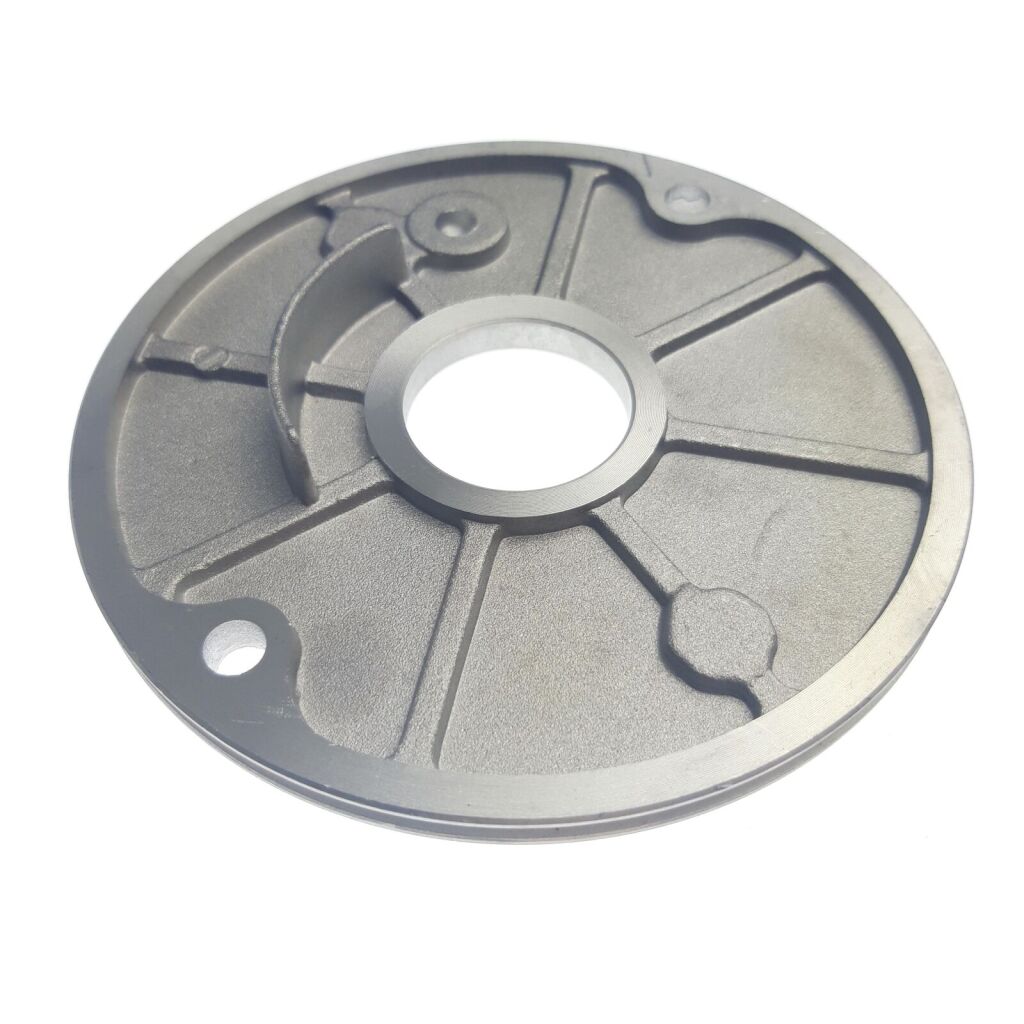

4 Cover (Item nr. 4) 36661 Cover  1 € 13,47 € 16
IN STOCK
5 36643 O-Ring 107×2 M150 (unavailable)  1 € 4,30 € 5
ON REQUEST
6 36660 O-Ring 6×1.8  2 € 8,02 € 10
ON REQUEST
7 36644 Ventilation Pipe  1 € 2,89 € 3
ON REQUEST

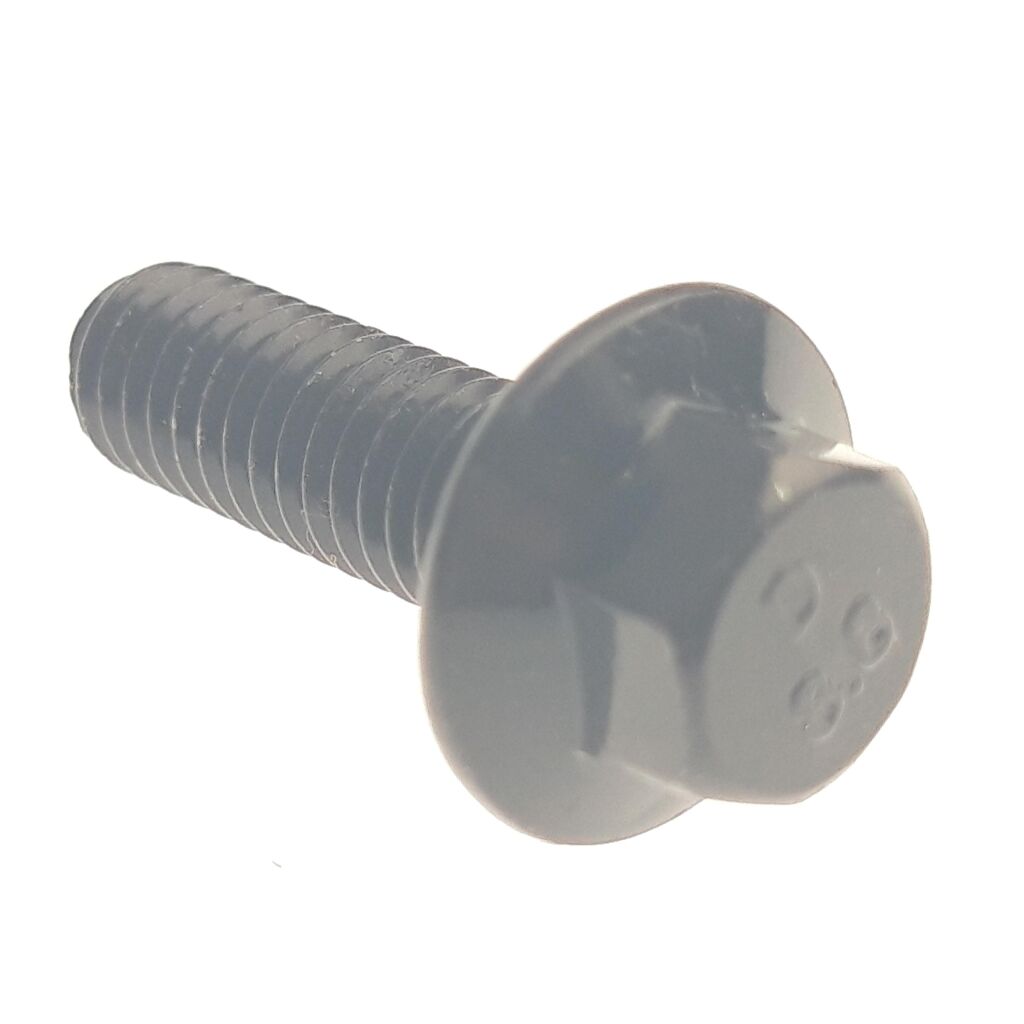

8 BOLT M6X18 (Item nr. 8) 10191 BOLT M6X18  2 € 2,40 € 3
ON REQUEST
9 36645 Washer 12  1 € 9,59 € 12
ON REQUEST
10 36646 Bolt M12×1.5×16  1 € 3,64 € 4
ON REQUEST
27 36657 Clamp 11.5  1 € 7,19 € 9
ON REQUEST
26 36656 Waste Pipe Set  1 € 3,06 € 4
ON REQUEST
13 36648 Locating Bolt M14×20.8  1 € 2,98 € 4
ON REQUEST
14 36649 Positioning Spring  1 € 11,98 € 14
ON REQUEST
15 LOCATING PIN 8X14 (Item nr. 15) 50076 LOCATING PIN 8X14  2 € 2,40 € 3
ON REQUEST
16 Oil Seal 19.8×30×5 (Item nr. 16) 36650 Oil Seal 19.8×30×5  1 € 9,75 € 12
IN STOCK
17 Oil Seal 20×32×6 (Item nr. 17) 36651 Oil Seal 20×32×6  1 € 9,75 € 12
IN STOCK
18 BEARING 6204 (Item nr. 18) 10062 BEARING 6204  1 € 7,36 € 9
IN STOCK
19 Ball Bearing 6203 (Item nr. 19) 10199 Ball Bearing 6203  1 € 4,63 € 6
IN STOCK
20 BEARING 6202 (Item nr. 20) 10849 BEARING 6202  1 € 10,17 € 12
IN STOCK

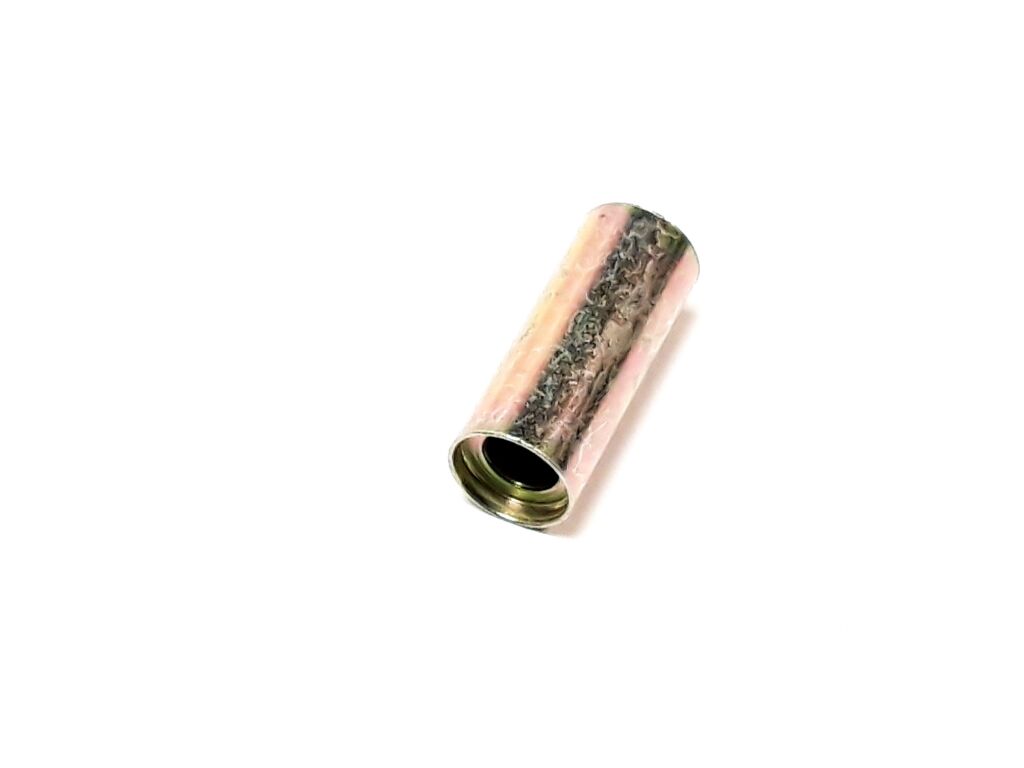

21 Engine Hanger Bush (Item nr. 21) 36652 Engine Hanger Bush  6 € 4,71 € 6
IN STOCK
22 Hanging Pipe Shaft,Behind (Item nr. 22) 36653 Hanging Pipe Shaft,Behind  2 € 8,84 € 11
IN STOCK
23 Hanging Pipe Shaft,Front (Item nr. 23) 36654 Hanging Pipe Shaft,Front  1 € 10,83 € 13
IN STOCK
24 36655 Washer 6×18×1.6  1 € 7,19 € 9
ON REQUEST
25 BOLT M6X25 (Item nr. 25) 10187 BOLT M6X25  1 € 2,40 € 3
IN STOCK
11 10998 Steel Ball SØ10.319  1 € 2,56 € 3
ON REQUEST
Product Code LINHAI_1_118_M150 T3a
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI M150
Select MODEL: M150 T3a
