CRANK CASE

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_1_104_WARRIOR_450
Select MODEL:

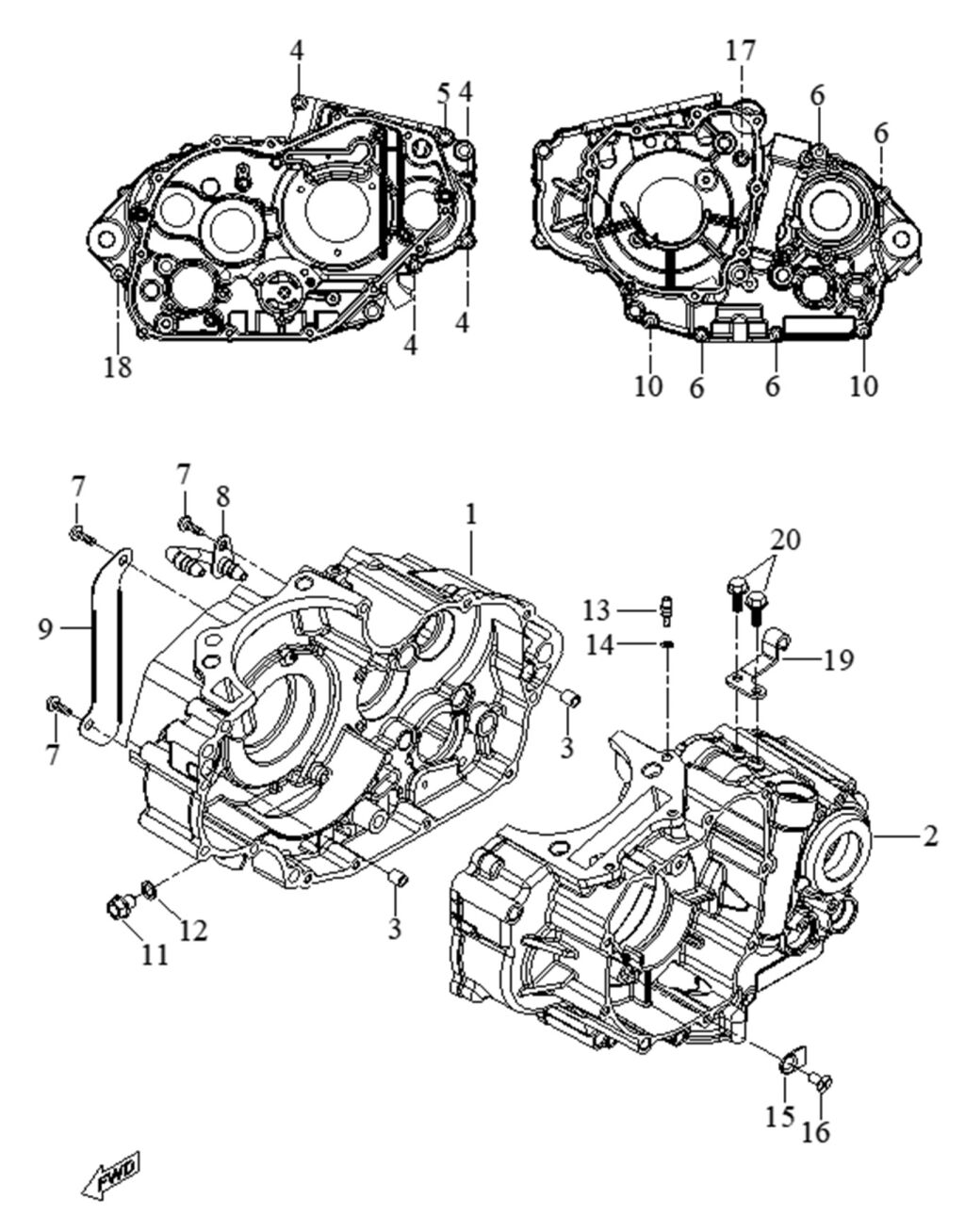

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 11100-E12-100 R/B 11000-E12-201 CRANKCASE ASSY  1
ON REQUEST
Detail
18 91700-06050-08Z Hex. Bolt, Flange  1
ON REQUEST
Detail
17 91700-06070-08Z BOLT, MAGNETO COV  1 € 1,90 € 2
ON REQUEST
16 91732-06012Z SCRW OL GR SH  1 € 1,90 € 2
ON REQUEST
15 83120-E12-120 RETAIN,COUNT SHA  1 € 1,90 € 2
ON REQUEST
13 15800-E12-100 JET, oil.  1 € 7,11 € 9
ON REQUEST
12 93101-10015-15 GASKET, oil galley bolt  1 € 1,90 € 2
ON REQUEST
11 91700-10012-12C BOLT, oil galley  1 € 1,90 € 2
ON REQUEST
10 91700-06065-08Z Hex. Bolt, Flange  2
ON REQUEST
Detail
9 11110-E12-100 GUIDE, oil return  1 € 2,15 € 3
ON REQUEST
8 15130-E12-100 PIPE COMP, oil connecter  1 € 24,79 € 30
ON REQUEST
7 91740-06010Z SCREW, gear shift cam bearing retain  3 € 1,90 € 2
ON REQUEST
6 91700-06085-08Z BOLT, crankcase M6  4 € 1,90 € 2
ON REQUEST
5 91760-08050-06Z BOLT, crankcase M8  1 € 3,39 € 4
ON REQUEST
4 91700-06075-08Z BOLT, crankcase M6  4 € 1,90 € 2
ON REQUEST
3 94001-130180-1 PIN, cylinder knock  2 € 1,90 € 2
ON REQUEST
2 11200-E12-100 R/B 11000-E12-201 CRANKCASE ASSY  1
ON REQUEST
Detail
20 BOLT, water drain (Item nr. 20) 91700-06010-10Z BOLT, water drain  2 € 2,48 € 3
ON REQUEST
Product Code ACCESS_1_104_WARRIOR_450
PARTS CATEGORY: ENGINE PARTS
Select BRAND: ACCESS
Select TYPE: ACCESS Warrior
Select MODEL: warrior 450
