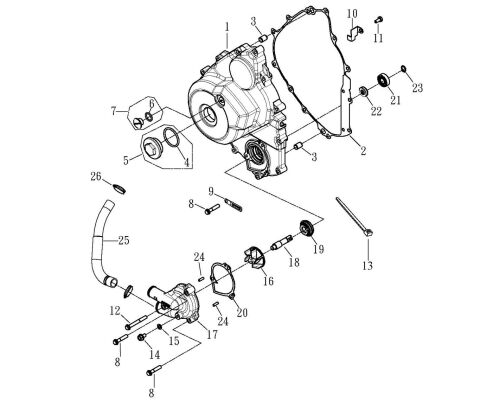

COVER, CRANKCASE

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_1_104_MAX_650i
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 COVER, CRANKCASE (Item nr. 1) 11340-E20-000 COVER, CRANKCASE  1 € 119,01 € 144
IN STOCK
15 GASKET, water drain bolt (Item nr. 15) 93101-06513-12-1 GASKET, water drain bolt  1 € 2,48 € 3
IN STOCK
16 Fan, Water Pump (Item nr. 16) 15213-E20-000 Fan, Water Pump  1 € 5,79 € 7
ON REQUEST
17 Cap,Water Pump (Item nr. 17) 15215-E20-000 Cap,Water Pump  1 € 18,18 € 22
ON REQUEST
18 R/B 15217-E20-001 Water Pump Shaft (Item nr. 18) 15217-E20-000 R/B 15217-E20-001 Water Pump Shaft  1 € 10,74 € 13
ON REQUEST
19 SEAL, mechanical (Item nr. 19) 15220-E12-100 SEAL, mechanical  1 € 43,14 € 52
IN STOCK
20 Gasket, Water Pump (Item nr. 20) 15218-E20-000 Gasket, Water Pump  1 € 3,31 € 4
IN STOCK IN 5 days
21 Bearing, Ball (Item nr. 21) 95100-T6000 Bearing, Ball  1 € 4,13 € 5
IN STOCK
22 Oil Seal (Item nr. 22) 96100-102006-1 Oil Seal  1 € 2,48 € 3
IN STOCK
23 Cir Clip (Item nr. 23) 93406-STW10 Cir Clip  1 € 2,48 € 3
IN STOCK
24 PIN, Dowel (Item nr. 24) 94002-040120 PIN, Dowel  2 € 2,48 € 3
IN STOCK
25 Hose C, Liquid(Pump-Cylinder) (Item nr. 25) 15233-A27-020 Hose C, Liquid(Pump-Cylinder)  1 € 14,88 € 18
IN STOCK
14 BOLT, water drain (Item nr. 14) 91700-06010-10Z BOLT, water drain  1 € 2,48 € 3
ON REQUEST
13 93705-TSL48200YB Strap  1 € 1,90 € 2
ON REQUEST
2 GASKET, Crankcase Cover (Item nr. 2) 11395-E20-000 GASKET, Crankcase Cover  1 € 10,74 € 13
IN STOCK
3 Pin, Dowel (Item nr. 3) 94001-100140 Pin, Dowel  2 € 2,48 € 3
IN STOCK
4 Oil-Ring (Item nr. 4) 96200-360030 Oil-Ring  1 € 2,48 € 3
IN STOCK
5 Screw M36 (Item nr. 5) 91841-E20-000 Screw M36  1 € 7,44 € 9
ON REQUEST
6 O-Ring (Item nr. 6) 96200-138024 O-Ring  1 € 2,48 € 3
IN STOCK
7 91840-E20-000 Bolt  1 € 7,44 € 9
ON REQUEST
8 91700-06030-08G-2 Hex. Bolt, Flange  13 € 1,90 € 2
ON REQUEST
9 11115-E12-000 Hook, Fixed Wire (unavailable)  1
ON REQUEST
Detail
10 31001-E12-000 Sheet, Magnetic Voltage  1 € 1,90 € 2
ON REQUEST
11 91740-05012Z Bolt, Cross, Pill Head  1
ON REQUEST
Detail
12 91700-06050-08Z Hex. Bolt, Flange  1
ON REQUEST
Detail
26 97414-032090 Clip  1 € 2,40 € 3
ON REQUEST
Product Code ACCESS_1_104_MAX_650i
PARTS CATEGORY: ENGINE PARTS
Select BRAND: ACCESS
Select TYPE: ACCESS MAX
Select MODEL: MAX 650 EFI
