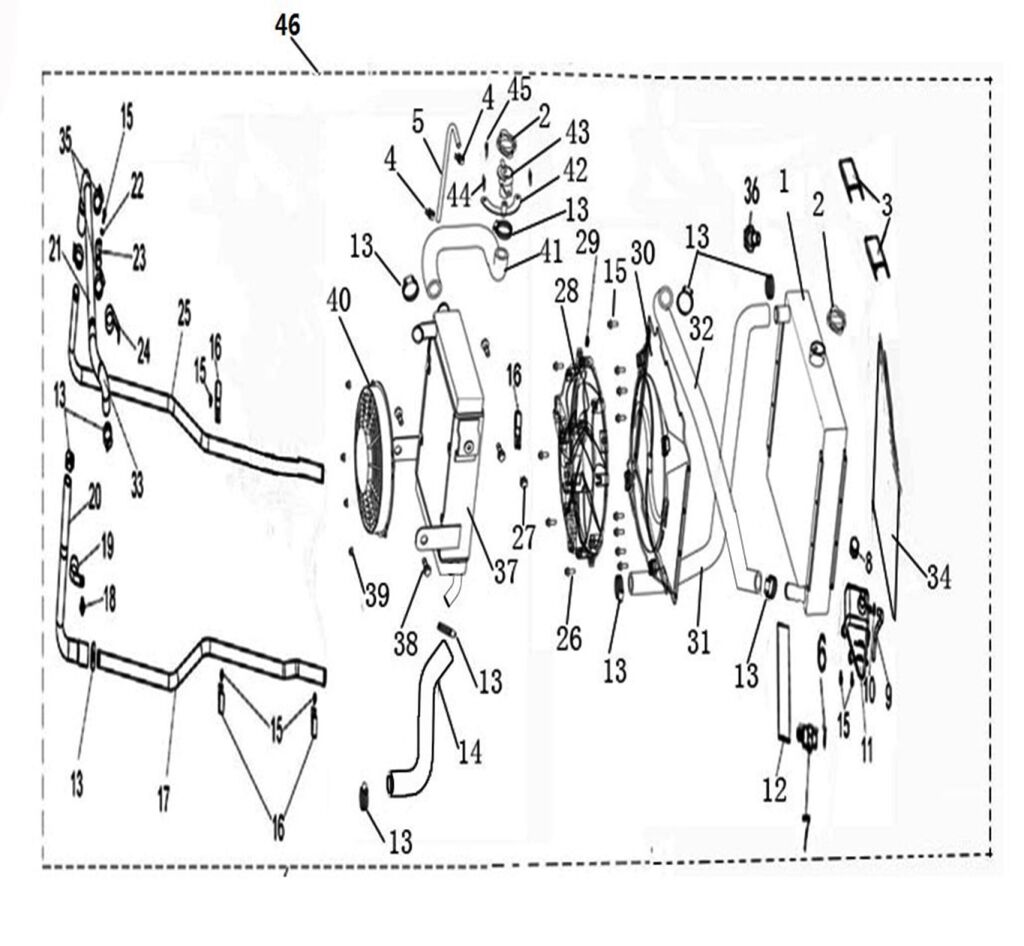

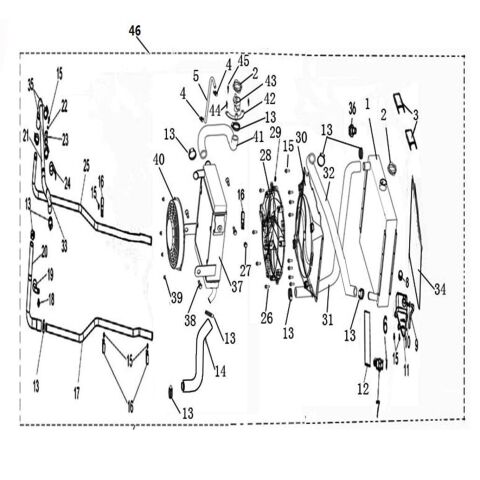

COOLING SYSTEM Ver.24

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_158_LH1100U-24
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
46 86461 Cooling System Assy  1 € 1 195,29 € 1 446
ON REQUEST
34 86381 Protective net  1 € 23,06 € 28
ON REQUEST
33 Engine Outlet Hose 2 (Item nr. 33) 86380 Engine Outlet Hose 2  1 € 38,10 € 46
IN STOCK
32 86458 Intermediate connecting pipe  1 € 21,16 € 26
ON REQUEST
31 Inlet Hose，Radiator (Item nr. 31) 84126 Inlet Hose，Radiator  1 € 33,14 € 40
IN STOCK
30 73004 FAN MOUTING BRACKET  1 € 32,56 € 39
ON REQUEST
29 Spring Nut M6 (Item nr. 29) 70960 Spring Nut M6  4 € 2,40 € 3
IN STOCK
28 84087 Fan Moter  1 € 411,57 € 498
ON REQUEST
26 Hexagon Flange Bolt M6×20 (Item nr. 26) 11459 Hexagon Flange Bolt M6×20  4 € 2,23 € 3
IN STOCK

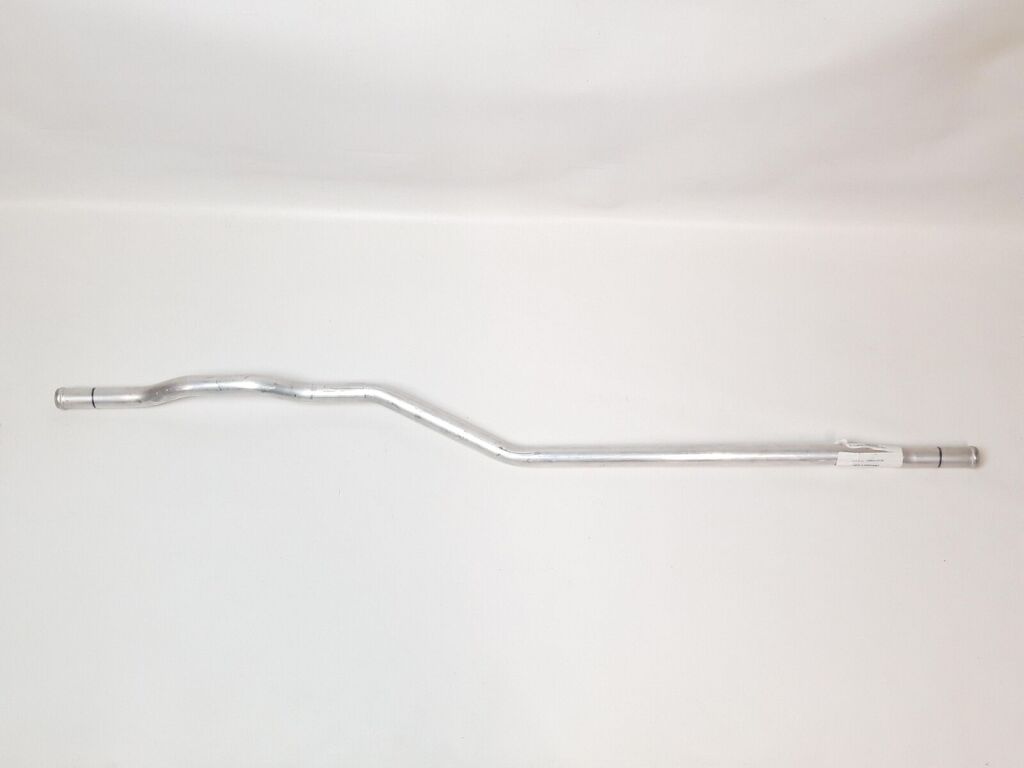

25 84128 Aluminum Pipe 1  1 € 47,52 € 57
ON REQUEST
35 10764 CLAMP 20/32  2 € 2,40 € 3
ON REQUEST

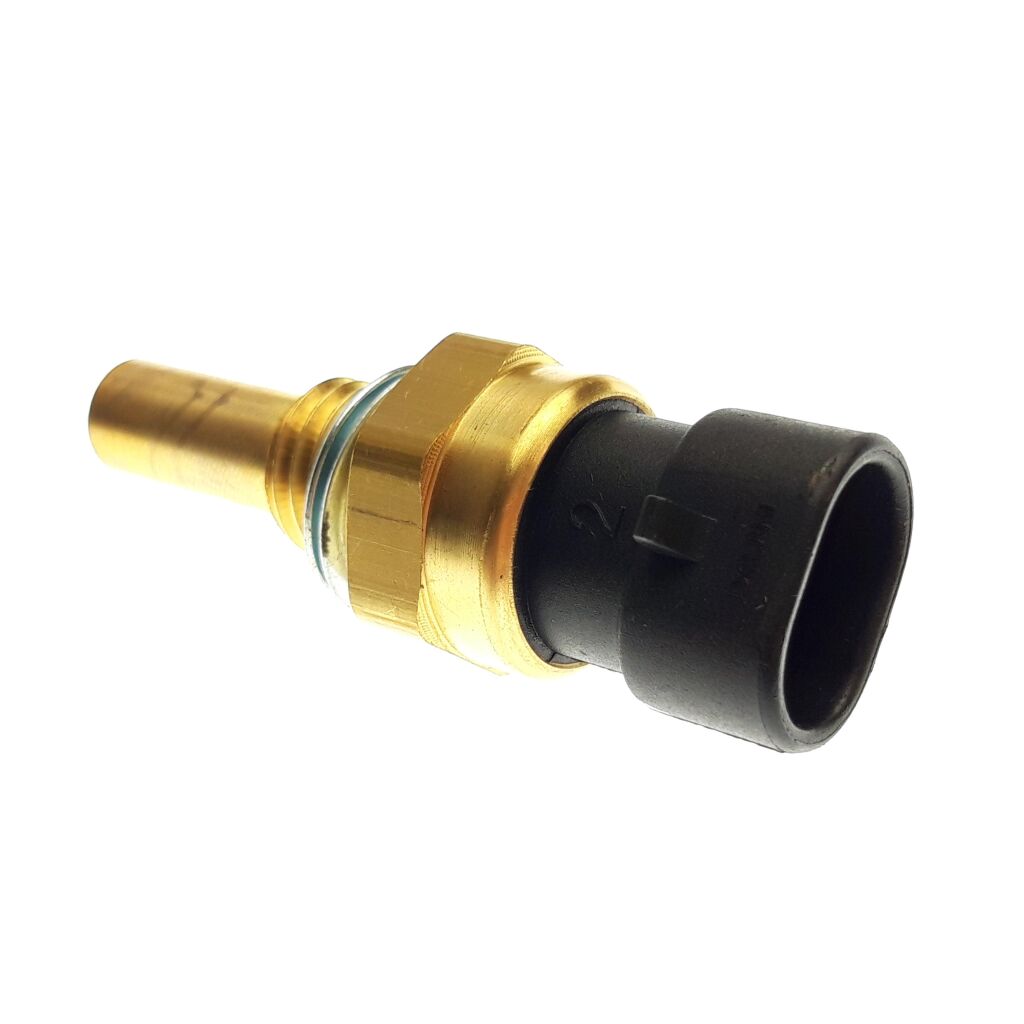

36 COOLING FLUID TEMPERATURE SENSOR (Item nr. 36) 70811 COOLING FLUID TEMPERATURE SENSOR  1 € 21,40 € 26
ON REQUEST
37 86459 Radiator B  1 € 134,55 € 163
ON REQUEST
45 Cross Recessed Pan Head Screw M5×12 (Item nr. 45) 10001 Cross Recessed Pan Head Screw M5×12  1 € 8,76 € 11
ON REQUEST
44 SCREW ST4.2X13 (Item nr. 44) 10178 SCREW ST4.2X13  2 € 2,40 € 3
IN STOCK
42 86679 Add pipe bracket  1 € 7,44 € 9
ON REQUEST
42 86384 Add pipe bracket  1 € 11,98 € 14
ON REQUEST
41 86584 Water mains  1 € 12,73 € 15
ON REQUEST
40 BLOWER ASSY (Item nr. 40) 35354 BLOWER ASSY  1 € 136,53 € 165
IN STOCK
39 10103 NUT M6  4 € 8,76 € 11
ON REQUEST
24 84132 R-Clip，Engine Outlet Hose Fitting  1 € 5,62 € 7
ON REQUEST
23 84565 Overflow Pipe  1 € 14,38 € 17
ON REQUEST
10 CLIP 1 (Item nr. 10) 22924 CLIP 1  1 € 13,64 € 16
IN STOCK
9 70342 PIPE,TANK RECOVERY  1 € 5,29 € 6
ON REQUEST
8 COVER,TANK RECOVERY (Item nr. 8) 70338 COVER,TANK RECOVERY  1 € 4,63 € 6
IN STOCK

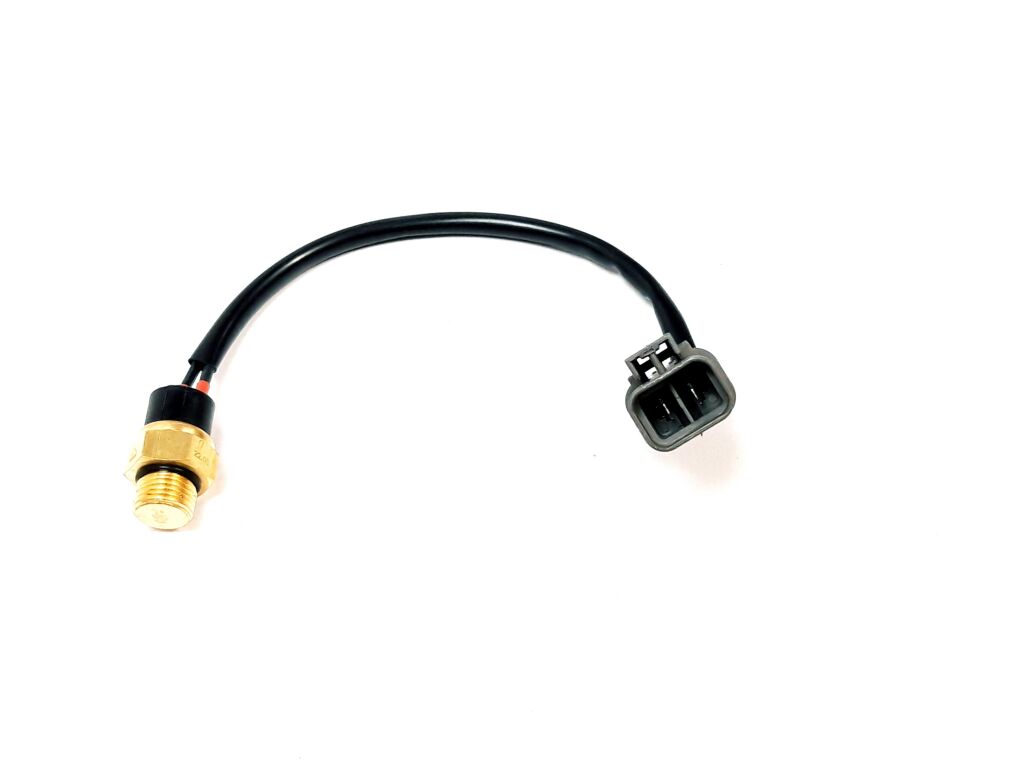

7 Temperature Thermo Switch (Item nr. 7) 84297 Temperature Thermo Switch  1 € 38,02 € 46
IN STOCK
6 10737 O-RING 13.2X1.8  1 € 9,67 € 12
RE STOCKING
5 71819 PIPE,SAFETY VALVE  1 € 5,29 € 6
ON REQUEST
4 71952 CLAMP 9.8  2 € 8,76 € 11
ON REQUEST
3 73395 Sponge  2 € 3,06 € 4
ON REQUEST
2 SAFETY VALVE (Item nr. 2) 22907 SAFETY VALVE  2 € 14,38 € 17
ON REQUEST
11 TANK RECOVERY (Item nr. 11) 70340 TANK RECOVERY  1 € 12,23 € 15
IN STOCK
12 84086 Spong 2  1 € 4,05 € 5
ON REQUEST
13 72027 HOSE HOOPS 21/44  8 € 9,67 € 12
ON REQUEST
22 Washer (Item nr. 22) 1309254 Washer  1 € 2,40 € 3
IN STOCK
21 86377 Engine Outlet Hose  1 € 38,10 € 46
ON REQUEST
20 86376 Engine Inlet Hose  1 € 29,26 € 35
ON REQUEST
19 84131 R-Clip，Engine Inlet Hose Fitting  1 € 5,62 € 7
ON REQUEST
18 Hexagon Flange Bolt M8×1.25×20 (Item nr. 18) 10783 Hexagon Flange Bolt M8×1.25×20  1 € 2,40 € 3
IN STOCK
17 Intermediate connecting pipe (Item nr. 17) 86379 Intermediate connecting pipe  1 € 31,49 € 38
ON REQUEST
16 84133 R-Clip，Aluminum Pipe 1&2 Fitting  6 € 5,62 € 7
ON REQUEST
15 Bolt M6X16 (Item nr. 15) 11495 Bolt M6X16  13 € 2,40 € 3
ON REQUEST
14 86457 Outlet Hose, Radiator  1 € 28,84 € 35
ON REQUEST
1 86456 Radiator A  1 € 174,96 € 212
ON REQUEST
Product Code LINHAI_1_158_LH1100U-24
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select MODEL: T-BOSS LH1100U D T1b (EPS)
Select TYPE: LINHAI UTV 1100 Diesel
