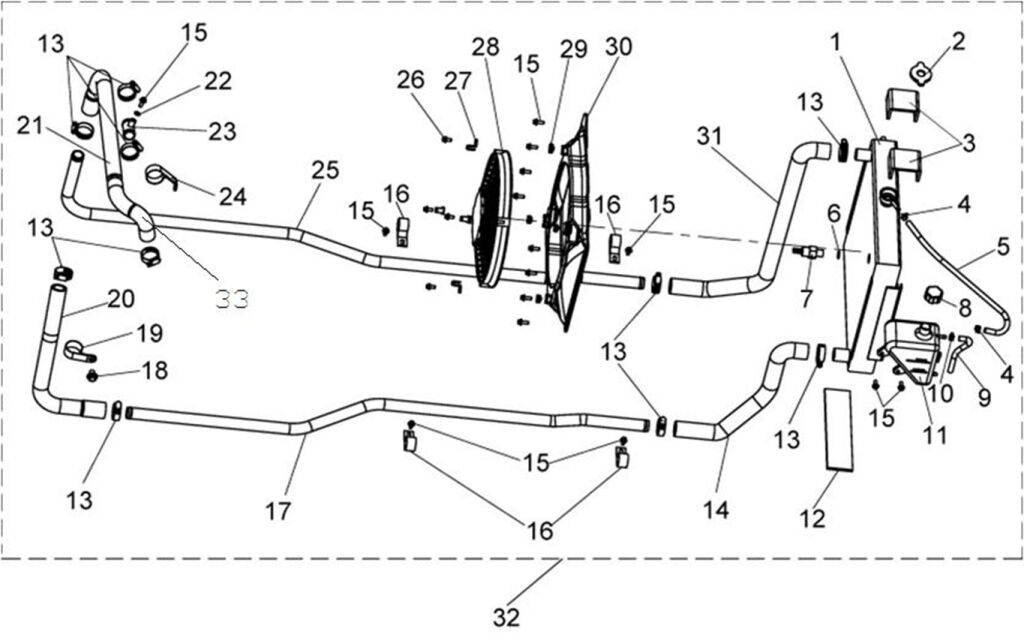

Cooling System Exploded View

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_137_LH800U-2D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 84129 Radiator  1 € 231,65 € 280
ON REQUEST
19 84131 R-Clip，Engine Inlet Hose Fitting  1 € 5,62 € 7
ON REQUEST
20 84123 Engine Inlet Hose  1 € 25,04 € 30
ON REQUEST
21 84124 Engine Outlet Hose  1 € 41,40 € 50
ON REQUEST
22 Washer (Item nr. 22) 1309254 Washer  1 € 2,40 € 3
IN STOCK
23 84130 Overflow Pipe  1 € 18,02 € 22
ON REQUEST
24 84132 R-Clip，Engine Outlet Hose Fitting  1 € 5,62 € 7
ON REQUEST
25 84127 Aluminum Pipe 2  1 € 42,73 € 52
ON REQUEST
26 Hexagon Flange Bolt M6×20 8.8 (Item nr. 26) 10110 Hexagon Flange Bolt M6×20 8.8  4 € 2,40 € 3
ON REQUEST
28 Spring Nut M6 (Item nr. 28) 70960 Spring Nut M6  4 € 2,40 € 3
IN STOCK
29 84087 Fan Moter  1 € 411,57 € 498
ON REQUEST
30 84118 Fan Moter Shroud  1 € 35,21 € 43
ON REQUEST
31 Inlet Hose，Radiator (Item nr. 31) 84126 Inlet Hose，Radiator  1 € 33,14 € 40
IN STOCK
32 84122 Cooling System Assy  1 € 1 234,88 € 1 494
ON REQUEST
27 84271 Installing Lug  4
ON REQUEST
Detail
18 BOLT M8X20 (Item nr. 18) 10081 BOLT M8X20  1 € 2,40 € 3
IN STOCK
17 84128 Aluminum Pipe 1  1 € 47,52 € 57
ON REQUEST
16 84133 R-Clip，Aluminum Pipe 1&2 Fitting  4 € 5,62 € 7
ON REQUEST
2 SAFETY VALVE (Item nr. 2) 22907 SAFETY VALVE  1 € 14,38 € 17
ON REQUEST
3 73395 Sponge  2 € 3,06 € 4
ON REQUEST
4 71952 CLAMP 9.8  2 € 8,76 € 11
ON REQUEST
5 84117 Pipe,Safety Valve  1 € 9,01 € 11
ON REQUEST
6 10737 O-RING 13.2X1.8  1 € 9,67 € 12
RE STOCKING
7 84062 Temperature Thermo Switch  1 € 39,92 € 48
ON REQUEST
8 COVER,TANK RECOVERY (Item nr. 8) 70338 COVER,TANK RECOVERY  1 € 4,63 € 6
IN STOCK
9 70342 PIPE,TANK RECOVERY  1 € 5,29 € 6
ON REQUEST
10 CLIP 1 (Item nr. 10) 22924 CLIP 1  1 € 13,64 € 16
IN STOCK
11 TANK RECOVERY (Item nr. 11) 70340 TANK RECOVERY  1 € 12,23 € 15
IN STOCK
12 84086 Spong 2  1 € 4,05 € 5
ON REQUEST
13 84085 Clamp 25/40  10 € 4,05 € 5
ON REQUEST
14 84125 Outlet Hose，Radiator  1 € 41,40 € 50
ON REQUEST
15 Bolt M6X16 (Item nr. 15) 10183 Bolt M6X16  13 € 2,40 € 3
IN STOCK
33 84272 Engine Outlet Hose 2  1 € 31,90 € 39
ON REQUEST
Product Code LINHAI_1_137_LH800U-2D
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI UTV 800
Select MODEL: LH800U 2D
