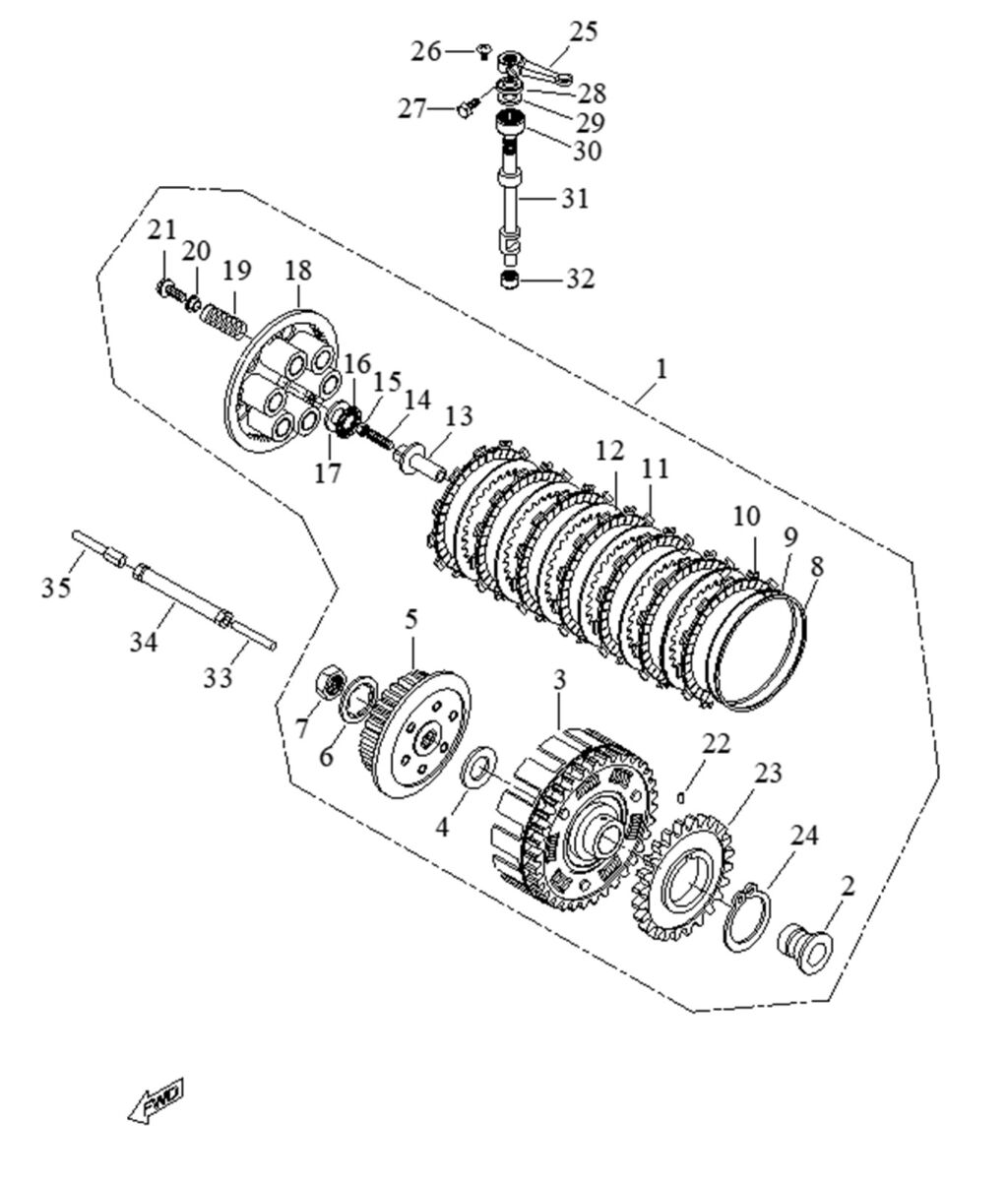

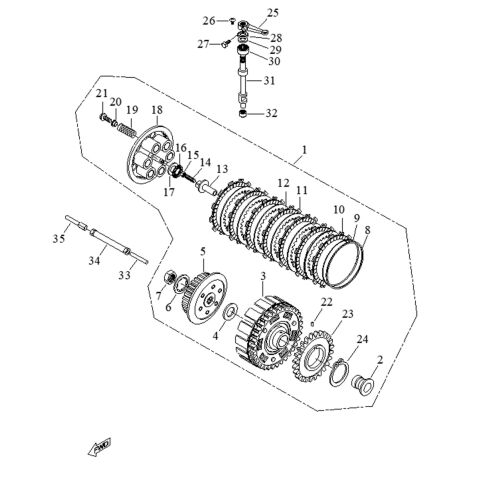

CLUTCH ASS'Y

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_2_115_WARRIOR_450
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

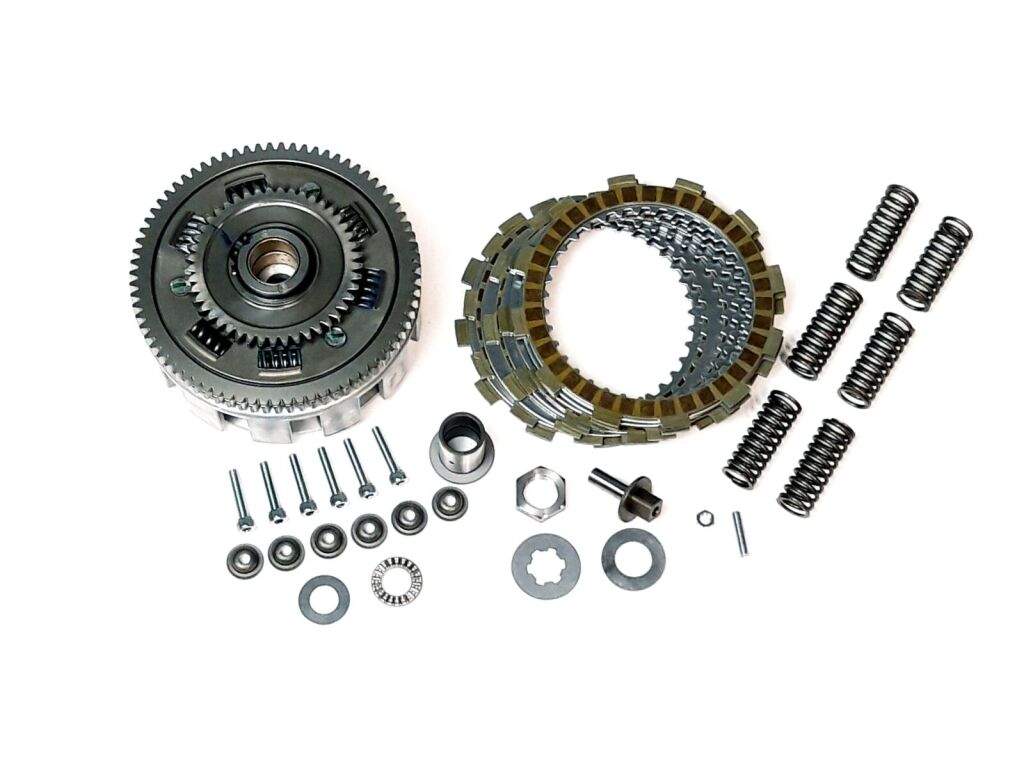

1 MULTIPLATE CLUTCH (Item nr. 1) 22335-E12-000 MULTIPLATE CLUTCH  1 € 493,39 € 597
ON REQUEST
18 22348-E12-100 DISK, clutch pressure  1 € 35,79 € 43
ON REQUEST

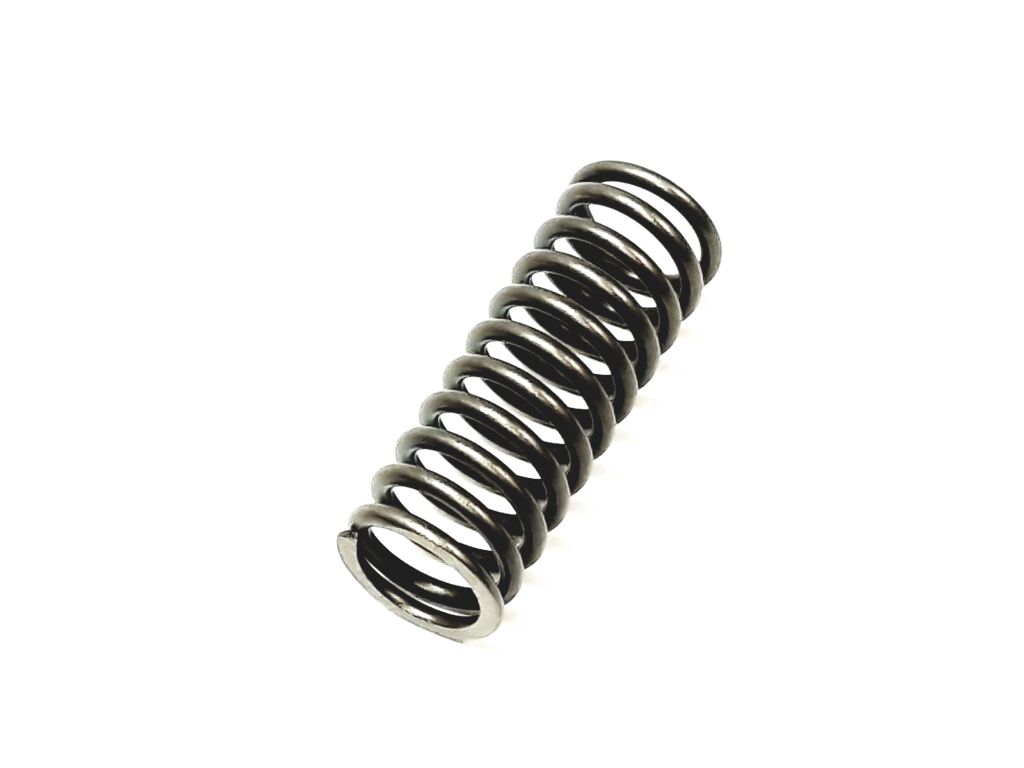

19 SPRING, clutch (Item nr. 19) 22331-E12-100 SPRING, clutch  6 € 3,31 € 4
ON THE WAY
20 22349-E12-100 RETAINER, clutch spring  6
ON REQUEST
21 91770-06040-10Z BOLT, clutch spring  6
ON REQUEST
23 15110-E12-100 GEAR, oil pump driven  1 € 52,56 € 64
ON REQUEST
25 41072-E12-100 ARM, clutch release  1
ON REQUEST
26 91731-06010Z STOPPER, clutch release camshaft oi  1 € 1,90 € 2
ON REQUEST
27 91770-06020-10Z BOLT, clutch release arm  1 € 1,90 € 2
ON REQUEST
28 OIL SEAL, clutch release camshaft (Item nr. 28) 96100-122807 OIL SEAL, clutch release camshaft  1 € 6,61 € 8
IN STOCK
29 93107-12228-10W THRUST WASHER, clutch release c  1 € 2,31 € 3
ON REQUEST
30 Bearing, Needle (Item nr. 30) 95200-HK1812-2 Bearing, Needle  1 € 7,44 € 9
ON REQUEST
31 22350-E12-100 SHAFT, clutch release cam  1 € 44,46 € 54
ON REQUEST
32 Bearing, Needle (Item nr. 32) 95200-HK1010-2 Bearing, Needle  1 € 3,31 € 4
IN STOCK
33 22342-E12-100 ROD, clutch push  1 € 3,39 € 4
ON REQUEST
17 93107-15028-10-1 WASHER, clutch release thrust  1
ON REQUEST
16 95200-AXK1102 BEARING, clutch release thrust  1 € 13,39 € 16
ON REQUEST
2 22351-E12-100 SPACER, primary driven gear  1
ON REQUEST
3 22340-E12-100 GEAR ASS'Y, primary driven  1 € 564,13 € 683
ON REQUEST
4 93100-20235-30-1 WASHER, primary driven gear thrust  1
ON REQUEST
5 22341-E12-100 HUB, clutch sleeve  1 € 62,98 € 76
ON REQUEST
6 93240-E12-100 WASHER, clutch sleeve hub thrust  1 € 1,90 € 2
ON REQUEST
7 92110-20-27B-1 NUT, clutch sleeve hub  1
ON REQUEST
8 22353-E12-100 SEAT, clutch wave washer  1
ON REQUEST
9 22352-E12-100 WASHER, clutch wave  1
ON REQUEST
10 22346-E12-100 PLATE, clutch driven No.2  1
ON REQUEST

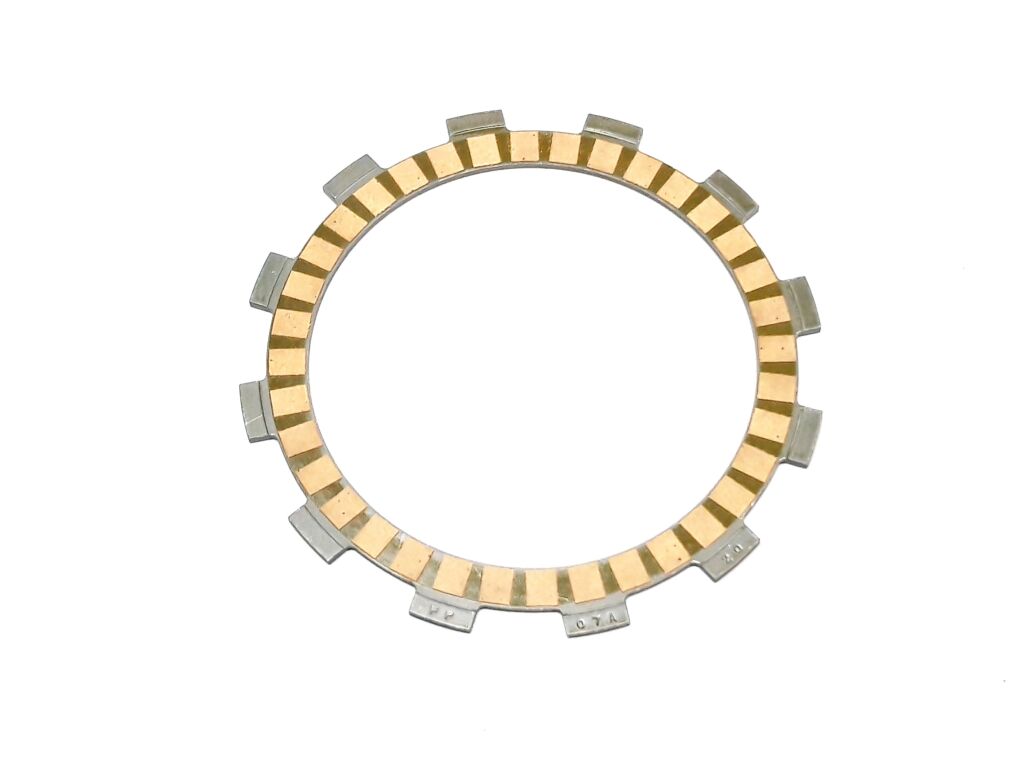

11 PLATE, clutch drive (Item nr. 11) 22345-E12-100 PLATE, clutch drive  6 € 38,02 € 46
IN STOCK

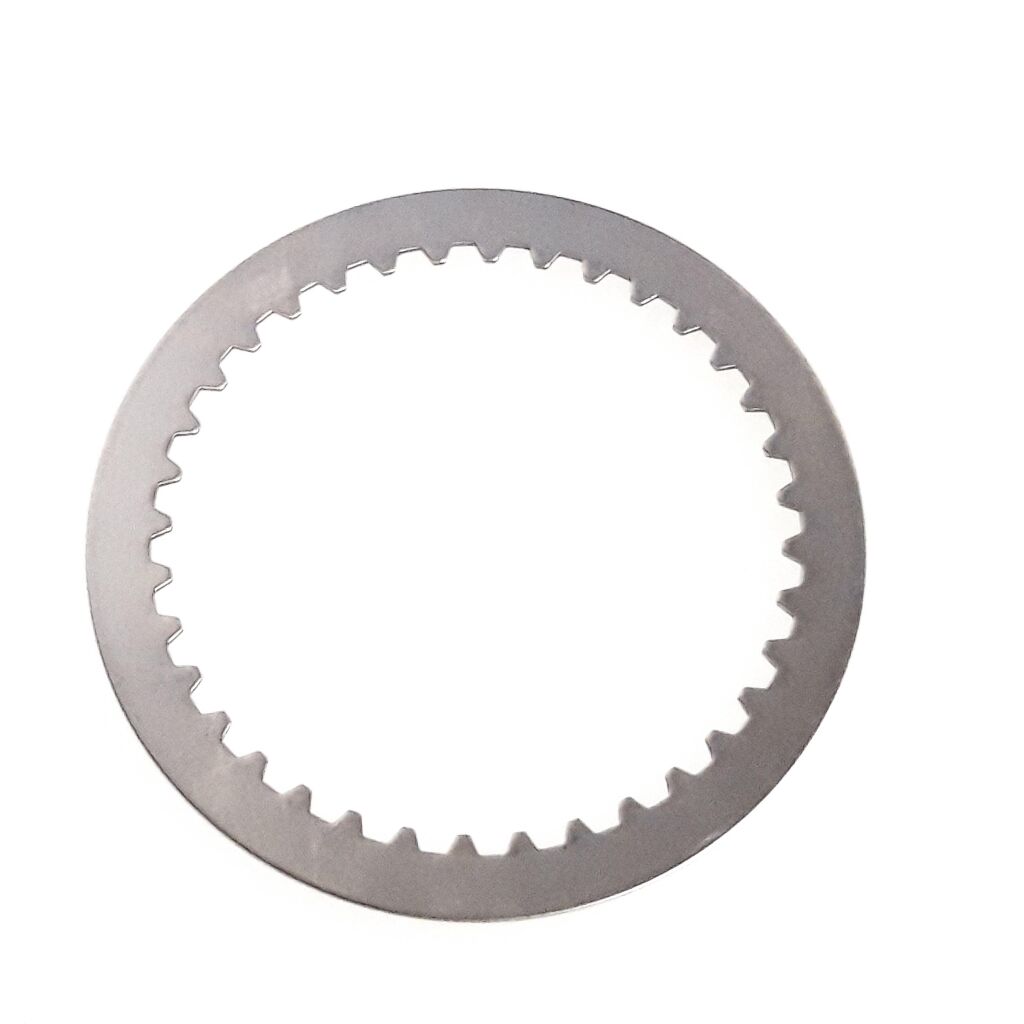

12 PLATE, clutch driven (Item nr. 12) 22347-E12-100 PLATE, clutch driven  6 € 4,96 € 6
ON REQUEST
13 22343-E12-100 PIECE, clutch push  1
ON REQUEST
14 91000-06025 SCREW, clutch release adjuster  1
ON REQUEST
15 92110-06-10W-1 NUT, clutch release adjust  1
ON REQUEST
34 22344-E12-100 R/B 22344-E12-101 ROD COMP, clutch push M  1 € 12,23 € 15
ON REQUEST
Product Code ACCESS_2_115_WARRIOR_450
PARTS CATEGORY: ENGINE PARTS
Select BRAND: ACCESS
Select TYPE: ACCESS Warrior
Select MODEL: warrior 450
