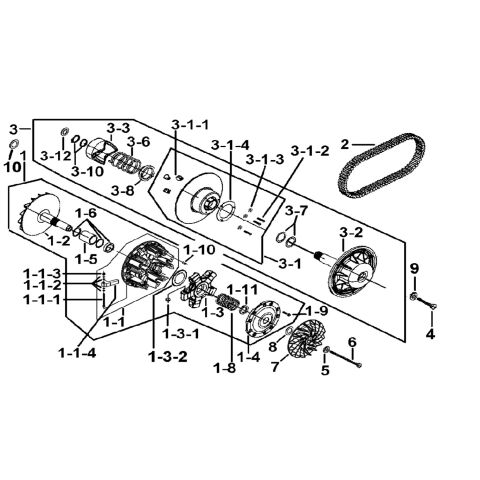

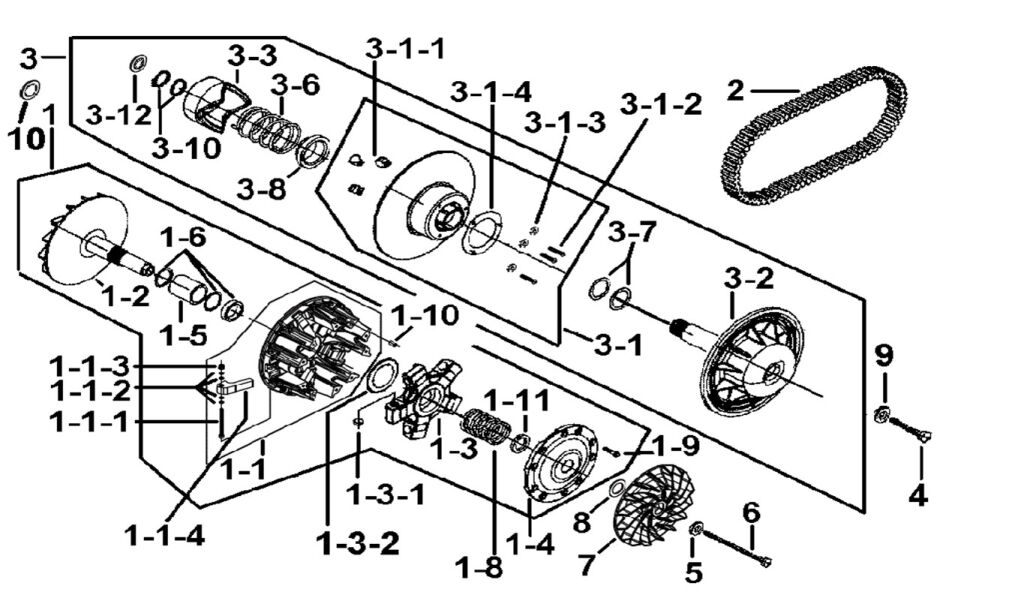

C.V.T.

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_112_ETT-JJ
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
06 R/B S03203 BOLT, FLANGE (Item nr. 06) S03202 R/B S03203 BOLT, FLANGE  1 € 13,39 € 16
ON REQUEST
01.8 SPRING (Item nr. 01-8) 493138 SPRING  1 € 16,36 € 20
ON REQUEST
01.9 492733 SCREW  10 € 1,98 € 2
ON REQUEST
02 BELT TGB 1000i, 1000LTX (101590→) (Item nr. 02) 911226 BELT TGB 1000i, 1000LTX (101590→)  1 € 201,90 € 244
IN STOCK
03 DRIVEN PULLEY ASSY. (Item nr. 03) 911463 DRIVEN PULLEY ASSY.  1 € 484,63 € 586
IN STOCK
03.1 OUTER HAFT ASSY (Item nr. 03-1) 492904C OUTER HAFT ASSY  1 € 485,21 € 587
ON REQUEST
03.1.1 SLIDER SHOE (Item nr. 03-1-1) 492464 SLIDER SHOE  3 € 41,24 € 50
IN STOCK
03.1.2 SCREW (Item nr. 03-1-2) 493113 SCREW  3 € 2,40 € 3
ON THE WAY
03.1.3 SPRING WASHER (Item nr. 03-1-3) 493112 SPRING WASHER  3 € 1,98 € 2
ON THE WAY
03.1.4 OUTER HAFT WASHER (Item nr. 03-1-4) 493084 OUTER HAFT WASHER  1 € 7,60 € 9
ON THE WAY
03.10 C CLIP (Item nr. 03-10) 493085 C CLIP  2 € 2,89 € 3
IN STOCK
03.12 493145 GASKET  1 € 4,96 € 6
ON REQUEST
03.2 TNNER HAFT ASSY (Item nr. 03-2) 493218B TNNER HAFT ASSY  1 € 163,22 € 197
IN STOCK
03.3 CAM (Item nr. 03-3) 493203 CAM  1 € 49,50 € 60
IN STOCK
03.6 SPRING (Item nr. 03-6) 493193 SPRING  1 € 20,99 € 25
IN STOCK
03.7 WASHER (Item nr. 03-7) 492475 WASHER  2 € 3,80 € 5
IN STOCK
03.8 SPREING SEAT (Item nr. 03-8) 493076 SPREING SEAT  1 € 38,43 € 46
IN STOCK
04 BOLT, HEX. HEAD M14X2.0X110L (Item nr. 04) S03401 BOLT, HEX. HEAD M14X2.0X110L  1 € 15,87 € 19
IN STOCK
01.6 SPACER (Item nr. 01-6) 493165A SPACER  1 € 64,88 € 78
IN STOCK
01.5 BEARING (Item nr. 01-5) 911280A BEARING  1 € 92,40 € 112
IN STOCK
07 COOLING FAN (Item nr. 07) 910593A COOLING FAN  1 € 34,55 € 42
ON REQUEST
08 SPACER (Item nr. 08) 910657 SPACER  1 € 4,71 € 6
IN STOCK
09 WASHER (Item nr. 09) 911208 WASHER  1 € 12,89 € 16
ON REQUEST
10 WASHER (0.8mm) (Item nr. 10) W99543 WASHER (0.8mm)  1 € 1,90 € 2
ON REQUEST

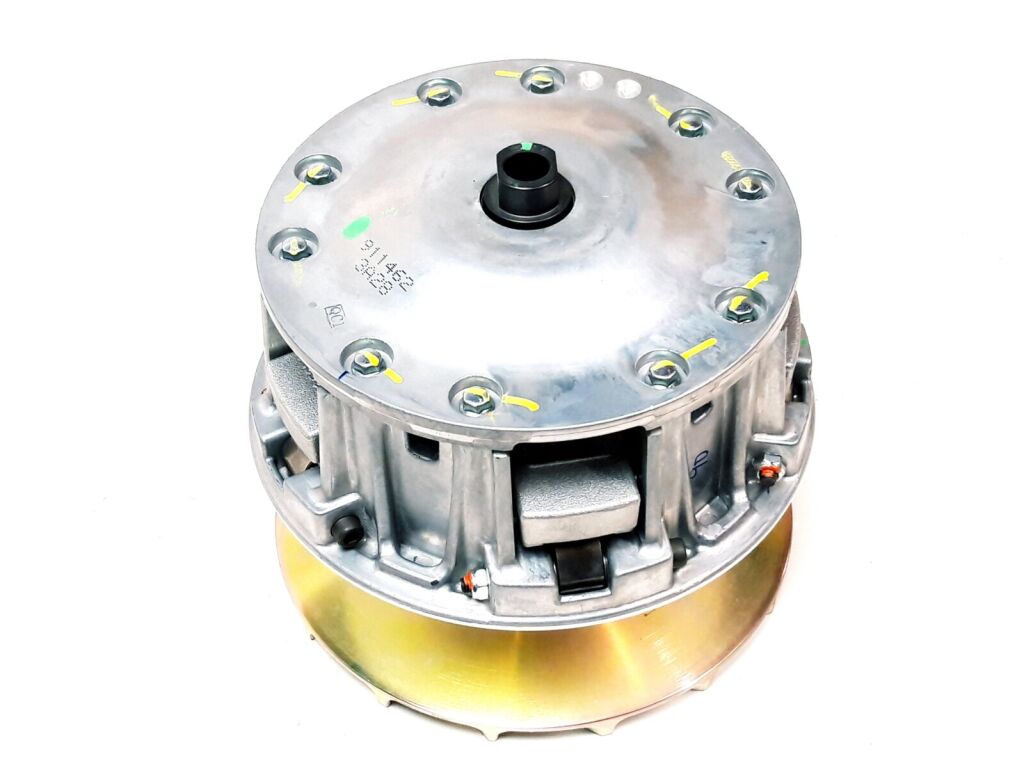

01 DRIVE PULLEY ASSY. (Item nr. 01) 911462 DRIVE PULLEY ASSY.  1 € 691,57 € 837
ON THE WAY
01.1 493210C OUTER HAFT ASSY.  1 € 237,44 € 287
ON REQUEST
01.1.1 BOLT (Item nr. 01-1-1) 492821 BOLT  5 € 7,36 € 9
IN STOCK
01.1.2 WASHER (Item nr. 01-1-2) 492837 WASHER  20 € 1,98 € 2
IN STOCK
01.1.3 NUT (Item nr. 01-1-3) 492822 NUT  5 € 1,98 € 2
IN STOCK
01.1.4 CENFRIFUGAL LEVER KIT (Item nr. 01-1-4) 493202B CENFRIFUGAL LEVER KIT  5 € 14,38 € 17
ON THE WAY
01.10 493075 PIN  2 € 1,98 € 2
ON REQUEST
01.11 LIMITER (Item nr. 01-11) 493093 LIMITER  1 € 60,41 € 73
ON REQUEST
01.2 TINNER HAFT ASSY (Item nr. 01-2) 493124B TINNER HAFT ASSY  1 € 375,12 € 454
IN STOCK
01.3 GOVERNOR CUP ASSY. (Item nr. 01-3) 493168b GOVERNOR CUP ASSY.  1 € 343,80 € 416
ON REQUEST
01.3.1 SLIDER SHOE (Item nr. 01-3-1) 492830 SLIDER SHOE  10 € 19,26 € 23
ON THE WAY
01.3.2 WASHER (Item nr. 01-3-2) 493167 WASHER  1 € 10,66 € 13
ON REQUEST
01.4 TUNER HAFT COVER ASSY (Item nr. 01-4) 492907B TUNER HAFT COVER ASSY  1 € 96,86 € 117
IN STOCK
05 WASHER (Item nr. 05) W99228 WASHER  1 € 3,64 € 4
IN STOCK
Product Code TGB_1_112_ETT-JJ
PARTS CATEGORY: ENGINE PARTS
Select BRAND: TGB
Select TYPE: BLADE 1000LTX
Select MODEL: BLADE 1000LTX MAX T3b
