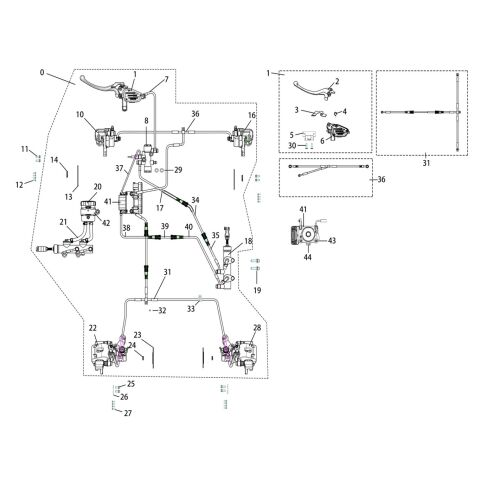

BRAKING SYSTEM (ABS T3b, 27' or 28' tyre)

  • Product Code  LIN_5_V19b_Landforce-1000
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
44 87564 ABS CUSHION  1 € 2,15 € 3
ON REQUEST
31 87538 BRAKE HOSE ASSY  1 € 79,09 € 96
ON REQUEST
30* 12216 BOLT M6X22  2 € 2,15 € 3
ON REQUEST
29 12213 BOLT M8X45  2 € 2,15 € 3
ON REQUEST
28 87542 REAR BRAKE CALIPER MASTER CYLINDER, RH  1 € 135,70 € 164
ON REQUEST
24 87555 REAR BRAKE PAD ASSY (2 PADS)  2 € 32,56 € 39
ON THE WAY
23 87125 REAR BRAKE DISC  2 € 25,70 € 31
ON THE WAY
22 87541 REAR BRAKE CALIPER MASTER CYLINDER, LH  1 € 135,70 € 164
ON REQUEST
21 87560 FLUID RESERVOIR HOSE  2 € 3,97 € 5
ON REQUEST
33 87543 INSTALLATION CARD  15 € 2,15 € 3
ON REQUEST
34 87553 FOOT BRAKE PIPE  1 € 3,14 € 4
ON REQUEST
35 87557 FOOT BRAKE PUMP HOSE 2  1 € 10,83 € 13
ON REQUEST
43 87563 ABS TYPE RUBBER CUSHION  2 € 2,15 € 3
ON REQUEST
42 87562 HYDRAULICDISTRIBUTIONVALVE MOUNTING BRACKET  1 € 2,56 € 3
ON REQUEST
41 87576 ABS HYDRAULIC CONTROL UNIT (27/28-INCH)  1 € 302,23 € 366
ON REQUEST
40 87559 ABS REAR OIL HOSE 2  1 € 11,57 € 14
ON REQUEST
39 87558 ABS REAR OIL HARD PIPE  1 € 2,56 € 3
ON REQUEST
38 87552 ABS REAR OIL HOSE 1  1 € 24,05 € 29
ON REQUEST
37 87551 ABS FORWARD TUBING  1 € 12,23 € 15
ON REQUEST
36 87537 FRONT BRAKE HOSE ASSY  1 € 50,33 € 61
ON REQUEST
20 87539 HYDRAULICDISTRIBUTIONVALVE  1 € 14,55 € 18
ON REQUEST
19 12212 BOLT M8X30  2 € 2,15 € 3
ON REQUEST
18 87540 MASTER CYLINDER  1 € 58,84 € 71
ON THE WAY
1 87534 HANDBRAKE MASTER CYLINDER ASSY  1 € 52,48 € 64
ON THE WAY
0 87533 HYDRAULIC BRAKE ASSY  1 € 969,17 € 1 173
IN STOCK IN 6 days
32 CROSS RECESSED COUNTERSUNK HEAD SCREW M6×16 (Item nr. 32) 11651 CROSS RECESSED COUNTERSUNK HEAD SCREW M6×16  2 € 2,15 € 3
IN STOCK
27 SCREW (Item nr. 27) 65016 SCREW  8 € 2,15 € 3
IN STOCK IN 6 days
26 SPRING WASHER 10 (Item nr. 26) 10027 SPRING WASHER 10  4 € 2,40 € 3
IN STOCK
25 11802 BOLT M10X25  4
ON REQUEST
12 11201 BOLT M8X20  8 € 8,02 € 10
ON REQUEST
11 11257 BOLT M10X1.25X30 10.9  8 € 2,40 € 3
ON REQUEST
2 87544 LEVER  1 € 6,28 € 8
ON REQUEST
3 87546 PARKING BRAKE LOCK PADDLE  1 € 2,64 € 3
ON REQUEST
4 87547 COIL SPRING  2 € 2,15 € 3
ON REQUEST
17 87556 FOOT BRAKE PUMP HOSE 1  1 € 22,56 € 27
ON REQUEST
16 87579 BRAKE CALIPER RIGHT  1 € 103,14 € 125
ON REQUEST
14 87554 FRONT BRAKE PAD ASSY (2 PADS)  2 € 39,34 € 48
ON THE WAY
13 87124 FRONT BRAKE DISC  2 € 25,70 € 31
ON THE WAY
10 87536 BRAKE CALIPER LEFT, FRONT  1 € 103,14 € 125
ON REQUEST
8 87535 HYDRAULICDISTRIBUTIONVALVE  1 € 37,36 € 45
ON THE WAY
7 87550 BRAKE FLUID HOSE, LH HAND BRAKE  1 € 18,60 € 22
ON REQUEST
6 87545 HANDBRAKE MASTER CYLINDER  1 € 43,55 € 53
ON REQUEST
5 65561 WINCH SWITCH MOUNTING BRACKET  1 € 7,19 € 9
ON REQUEST
Product Code LIN_5_V19b_Landforce-1000
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 1000
Select MODEL: Landforce 1000
