BRAKE OIL TUBE (Double Hand Brake)

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_4_227_MAX_750i_Forest
Select MODEL:

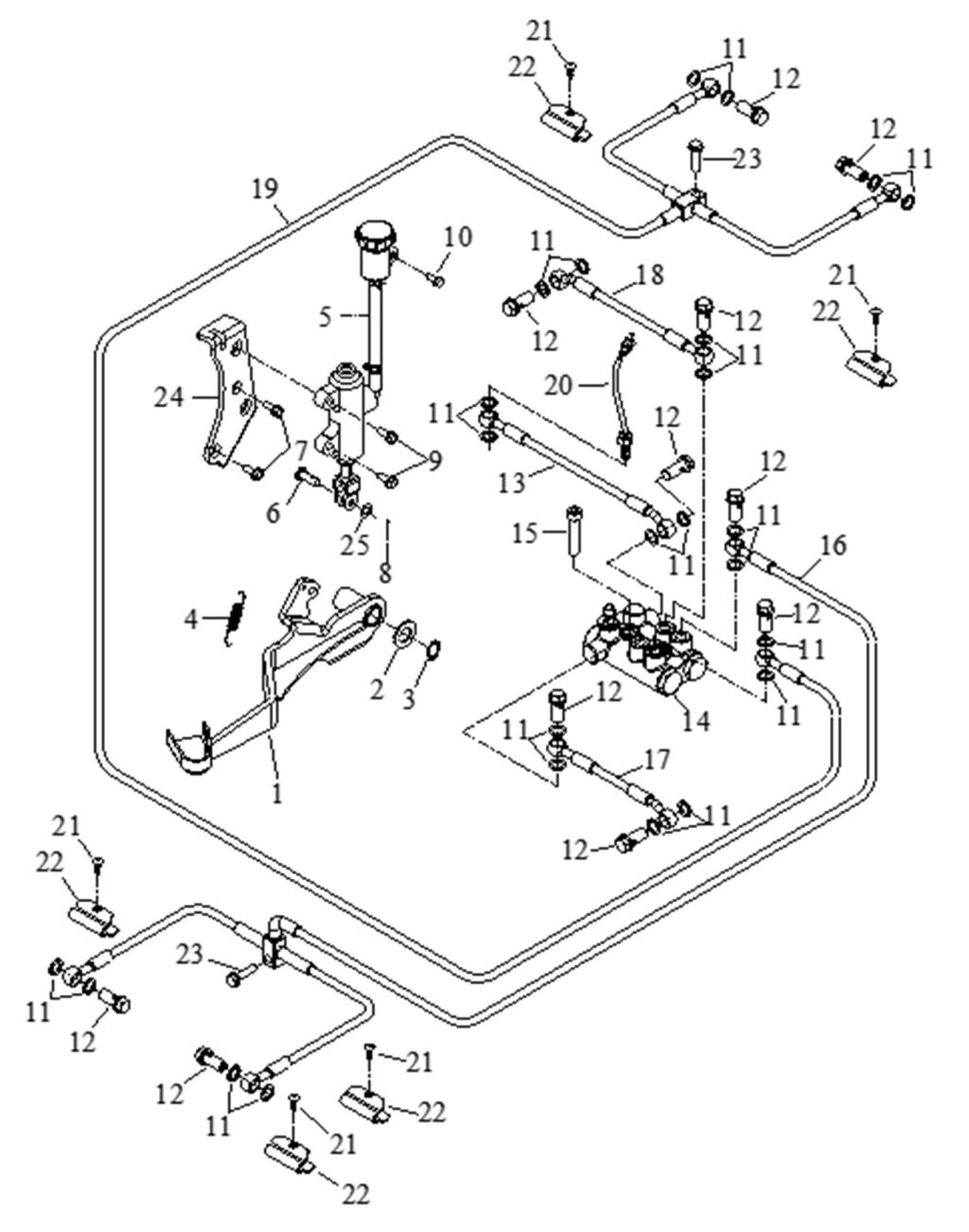

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 Swing Arm, Footbrake (Item nr. 1) 31408-A32-000 Swing Arm, Footbrake  1 € 41,32 € 50
IN STOCK
14 31403-A27-000 R/B 31403-A27-010 Brake Oil Valve  1 € 80,17 € 97
ON REQUEST
15 91760-08040-06G Bolt, Hexagon, Socker  2 € 1,90 € 2
ON REQUEST
16 Hose, Hand Brake (Item nr. 16) 31229-A13-001 Hose, Hand Brake  1 € 73,55 € 89
ON THE WAY
17 Hose, Front Brake L. (Item nr. 17) 31226-A27-000 Hose, Front Brake L.  1 € 37,19 € 45
IN STOCK
18 Hose, Front Brake R. (Item nr. 18) 31227-A27-000 Hose, Front Brake R.  1 € 46,28 € 56
IN STOCK
19 31225-A27-001 Hose, Rear Disk Brake  1 € 119,01 € 144
ON REQUEST

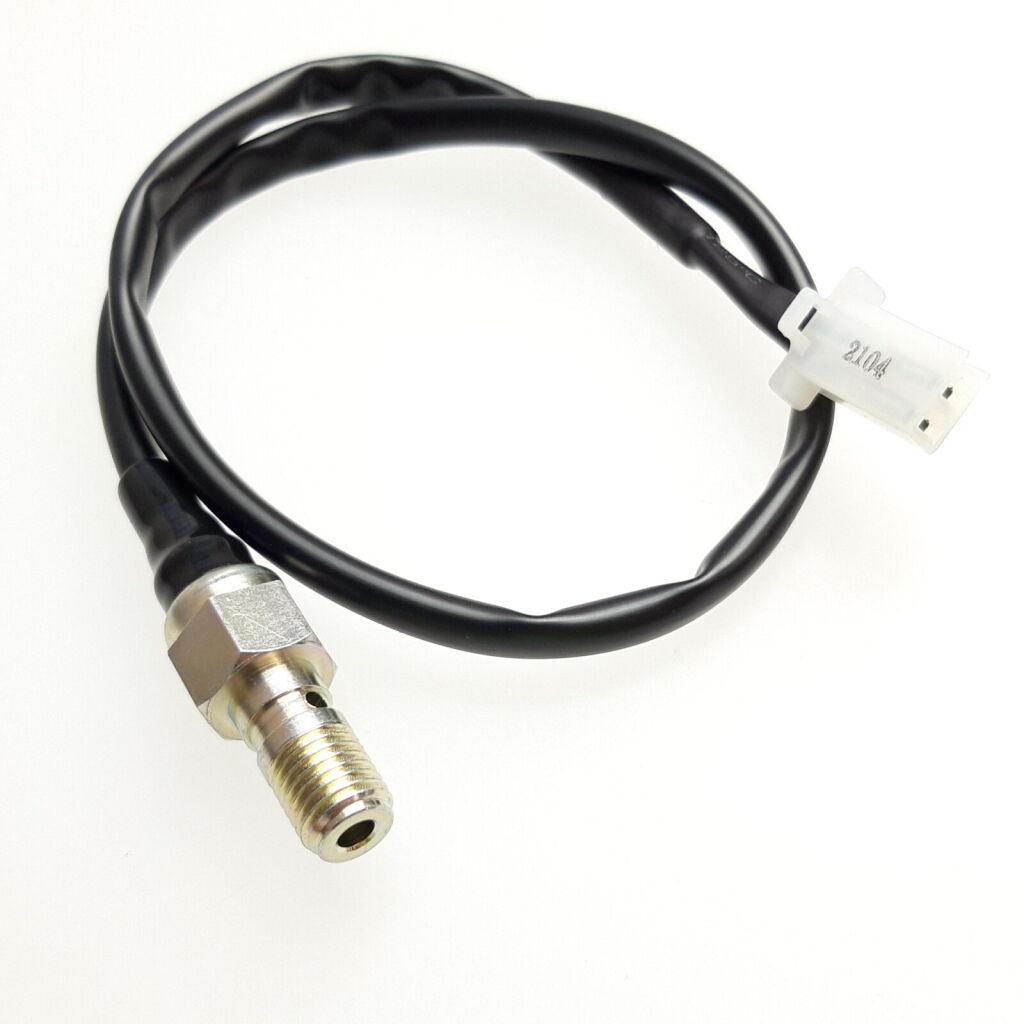

20 Switch,Footbrake (Item nr. 20) 61205-A12-000 Switch,Footbrake  1 € 35,54 € 43
ON REQUEST
21 Philips Screw, Round head, Tap (Item nr. 21) 91825-05016 Philips Screw, Round head, Tap  5 € 2,48 € 3
ON REQUEST
22 Clip, Brake Hose (Item nr. 22) 83115-A03-010 Clip, Brake Hose  5 € 2,48 € 3
IN STOCK
23 Hex Washer Face Bolt (Item nr. 23) 91700-06025-10G Hex Washer Face Bolt  2 € 2,48 € 3
IN STOCK
13 Hose, Footbrake Hydraulic Pump (Item nr. 13) 31228-A27-000 Hose, Footbrake Hydraulic Pump  1 € 23,14 € 28
IN STOCK
12 Bolt, Brake Hose (Item nr. 12) 91830-A01-000 Bolt, Brake Hose  11 € 2,48 € 3
IN STOCK
2 93100-14221-20C Washer, Plate  1 € 1,90 € 2
ON REQUEST
3 Cir Clip (Item nr. 3) 93406-STW14A Cir Clip  1 € 2,48 € 3
IN STOCK
4 Return Spring (Item nr. 4) 97211-A06-000 Return Spring  1 € 2,48 € 3
IN STOCK
5 31406-A32-000 Hydraulic Pump,Footbrake  1
ON REQUEST
Detail
6 Pin (Item nr. 6) 94005-07021-2 Pin  1 € 2,48 € 3
IN STOCK
7 Hex Washer Face Bolt (Item nr. 7) 91700-08016-12G Hex Washer Face Bolt  2 € 2,48 € 3
IN STOCK
8 94000-01620 Cotter pin  1 € 2,48 € 3
ON REQUEST
9 91700-08025-12G Hex. Bolt, Flange  2 € 1,90 € 2
ON REQUEST
10 91700-06014-10G Hex. Bolt, Flange  1 € 1,90 € 2
ON REQUEST
11 Washer, Plate (Copper) (Item nr. 11) 93101-10515-12-1 Washer, Plate (Copper)  24 € 2,48 € 3
ON REQUEST
25 Washer, Plain (Item nr. 25) 93100-07013-10W-1 Washer, Plain  1 € 2,48 € 3
IN STOCK
Product Code ACCESS_4_227_MAX_750i_Forest
Select BRAND: ACCESS
PARTS CATEGORY: FRAME PARTS
Select TYPE: ACCESS MAX
Select MODEL: MAX 750 EFI FOREST
