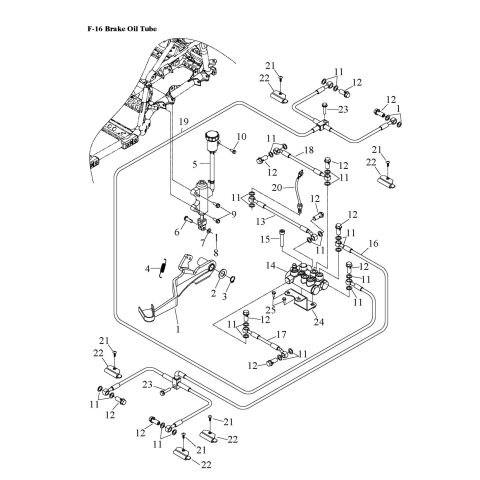

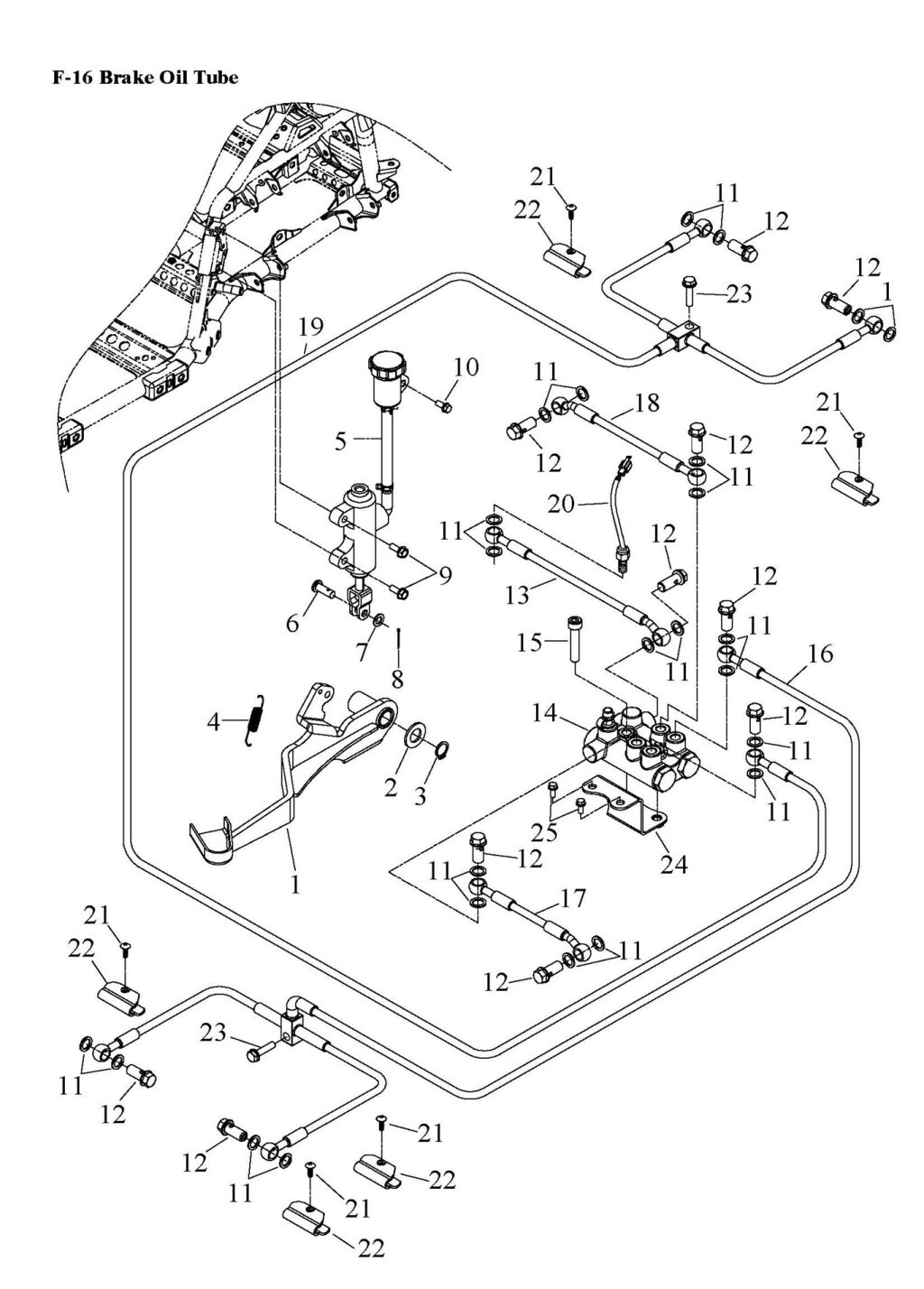

BRAKE OIL TUBE (Double Hand Brake)

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_2_226_MAX_800i_LT
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 Swing Arm, Footbrake (Item nr. 1) 31408-A32-000 Swing Arm, Footbrake  1 € 41,32 € 50
IN STOCK
15 91760-08040-06G Bolt, Hexagon, Socker  2 € 1,90 € 2
ON REQUEST

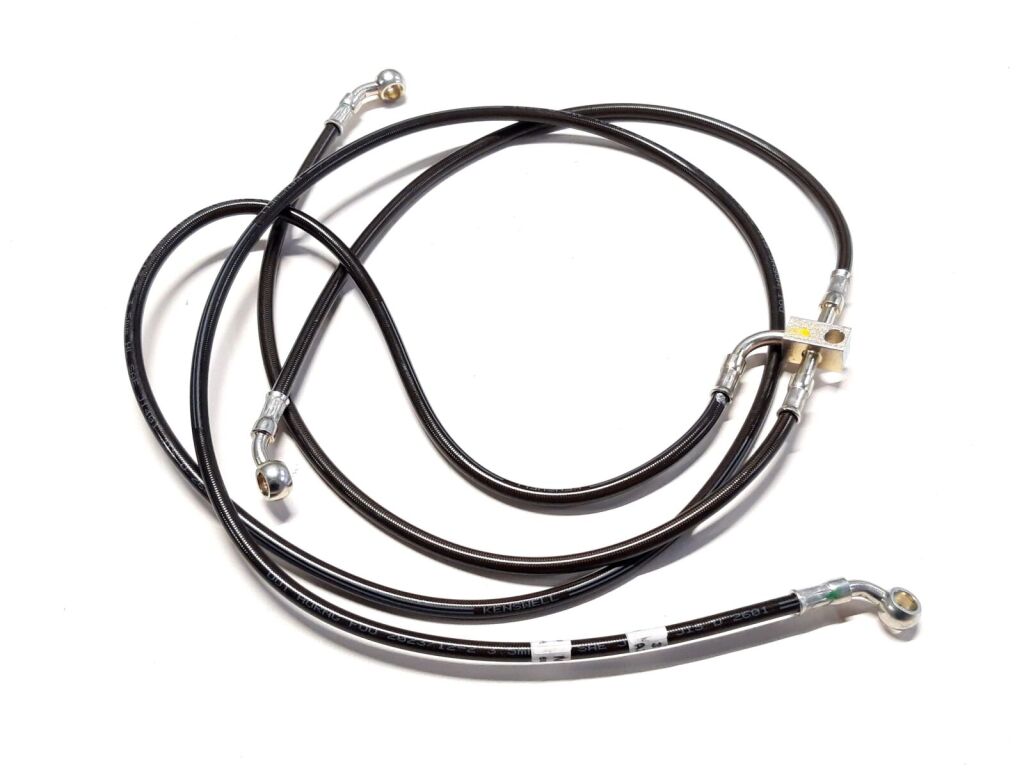

16 Hose, Hand Brake (Item nr. 16) 31229-A13-001 Hose, Hand Brake  1 € 73,55 € 89
IN STOCK
17 Hose, Front Brake L. (Item nr. 17) 31226-A27-000 Hose, Front Brake L.  1 € 37,19 € 45
IN STOCK
18 Hose, Front Brake R. (Item nr. 18) 31227-A27-000 Hose, Front Brake R.  1 € 46,28 € 56
IN STOCK
19 Hose, Rear Disk Brake (Item nr. 19) 31225-A36-010 Hose, Rear Disk Brake  1 € 103,22 € 125
ON THE WAY
20 Switch,Footbrake (Item nr. 20) 61205-A12-000 Switch,Footbrake  1 € 35,54 € 43
ON REQUEST
21 Philips Screw, Round head, Tap (Item nr. 21) 91825-05016 Philips Screw, Round head, Tap  5 € 2,48 € 3
ON THE WAY
22 Clip, Brake Hose (Item nr. 22) 83115-A03-010 Clip, Brake Hose  5 € 2,48 € 3
IN STOCK
23 Hex Washer Face Bolt (Item nr. 23) 91700-06025-10G Hex Washer Face Bolt  2 € 2,48 € 3
IN STOCK
24 71270-A43-000 Bracket, Brake Valve  1
ON REQUEST
14 R/B 31403-A81-000 Brake Oil Valve (Item nr. 14) 31403-A27-010 R/B 31403-A81-000 Brake Oil Valve  1 € 62,81 € 76
ON REQUEST
13 31228-A43-000 Hose, Footbrake Hydraulic Pump  1 € 20,99 € 25
ON REQUEST
12 Bolt, Brake Hose (Item nr. 12) 91830-A01-000 Bolt, Brake Hose  11 € 2,48 € 3
IN STOCK
2 93100-14221-20C Washer, Plate  1 € 1,90 € 2
ON REQUEST
3 Cir Clip (Item nr. 3) 93406-STW14A Cir Clip  1 € 2,48 € 3
IN STOCK
4 Return Spring (Item nr. 4) 97211-A06-000 Return Spring  1 € 2,48 € 3
IN STOCK

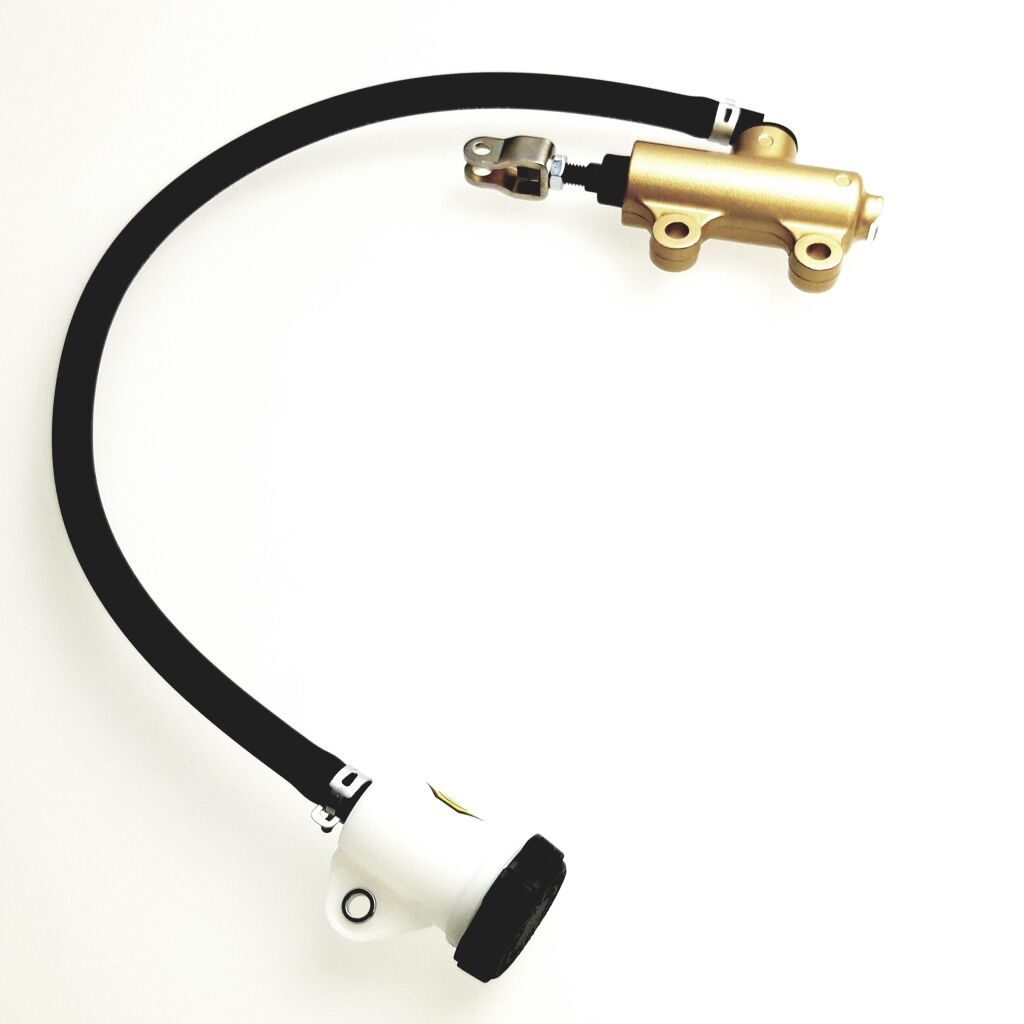

5 R/B 31406-A81-000 Hydraulic Pump, Footbrake (Item nr. 5) 31406-A32-010 R/B 31406-A81-000 Hydraulic Pump, Footbrake  1 € 66,94 € 81
ON REQUEST
6 Pin (Item nr. 6) 94005-07021-2 Pin  1 € 2,48 € 3
IN STOCK
7 Washer, Plain (Item nr. 7) 93100-07013-10W-1 Washer, Plain  1 € 2,48 € 3
IN STOCK
8 94000-01620 Cotter pin  1 € 2,48 € 3
ON REQUEST
9 91700-08025-12G Hex. Bolt, Flange  2 € 1,90 € 2
ON REQUEST
10 91700-06014-10G Hex. Bolt, Flange  1 € 1,90 € 2
ON REQUEST
11 Washer, Plate (Copper) (Item nr. 11) 93101-10515-12-1 Washer, Plate (Copper)  24 € 2,48 € 3
ON REQUEST
25 Hex Waser Face Bolt (Item nr. 25) 91700-08012-12G Hex Waser Face Bolt  2 € 2,48 € 3
IN STOCK
Product Code ACCESS_2_226_MAX_800i_LT
Select BRAND: ACCESS
PARTS CATEGORY: FRAME PARTS
Select TYPE: ACCESS 850LT
Select MODEL: SHADE 850LT E4 EPS
