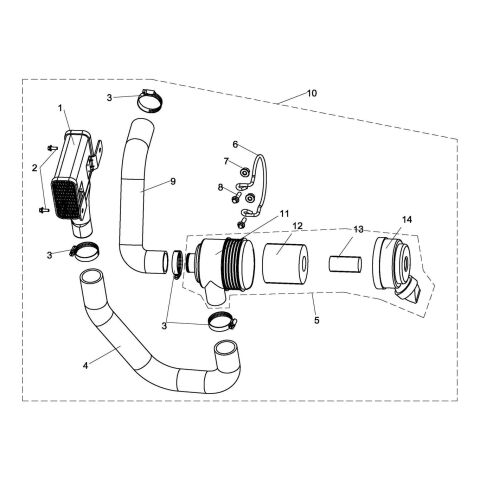

Air Intake Exploded View

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_135_LH800U-2D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 84135 Air Intake Baffling Box  1 € 42,64 € 52
ON REQUEST
13 84269 Air Cleaner Element  1 € 45,70 € 55
ON REQUEST
12 84268 The Filter Set  1 € 53,06 € 64
ON REQUEST
11 84267 The Air Filter Housing  1 € 131,49 € 159
ON REQUEST
10 84134 Air Intake Assy  1 € 418,84 € 507
ON REQUEST
9 84136 Outlet Hose  1 € 38,68 € 47
ON REQUEST
8 10078 BOLT M8X30  2 € 8,02 € 10
ON REQUEST
7 10880 Nut M8  2 € 9,09 € 11
ON REQUEST
6 84065 Clamp  1 € 7,44 € 9
ON REQUEST
5 84064 Air Cleaner Compnents(With Filter Element)  1 € 353,97 € 428
ON REQUEST
4 84137 Inlet Hose  1 € 43,80 € 53
ON REQUEST
3 84063 Clamp （Φ40-Φ60）  4 € 3,80 € 5
ON REQUEST
2 10010 Hexagon Flange Bolt M6×15  2 € 8,68 € 11
ON REQUEST
14 84270 The Air Filter Housing  1 € 96,28 € 116
ON REQUEST
Product Code LINHAI_1_135_LH800U-2D
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI UTV 800
Select MODEL: LH800U 2D
