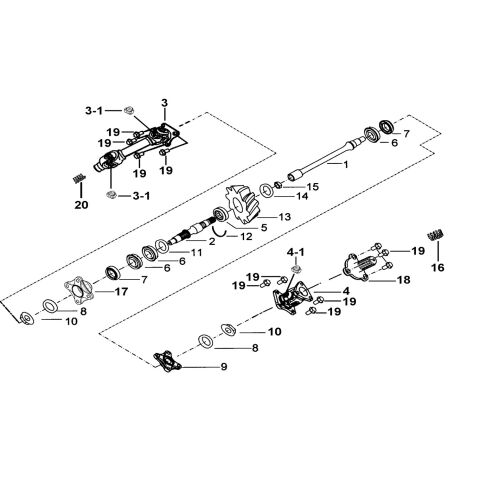

TRANSMISSION SYSTEM ASSY.

TGB
Manufacturer: TGB
Product Code: TGB_1_104_FBH-JJDLE
Select MODEL:
BLADE 600LTX MAX E5
Item nr. Pic. Part nr. Description Count in the table Price for 1 pc Availability
01 SHAFT, SEC DRIVEN OUTPUT FRON (Item nr. 01) 924218 SHAFT, SEC DRIVEN OUTPUT FRON  1 € 69,42 € 84
IN STOCK
11B SHIM, SEC. DRIVEN SHAFT ?25X?34X0.3t (Item nr. 11B) W99511 SHIM, SEC. DRIVEN SHAFT ?25X?34X0.3t  1 € 2,40 € 2,90
IN STOCK
11C SHIM, SEC. DRIVEN SHAFT ?25X?34X0.5t (Item nr. 11C) W99512 SHIM, SEC. DRIVEN SHAFT ?25X?34X0.5t  1 € 2,40 € 2,90
IN STOCK
11D SHIM, REVERSE SHAFT (Item nr. 11D) W99517 SHIM, REVERSE SHAFT  1 € 2,40 € 2,90
IN STOCK
12 RING, SEC DRIVEN BRG, MDL (Item nr. 12) 924217 RING, SEC DRIVEN BRG, MDL  1 € 2,40 € 2,90
IN STOCK
13 BEVEL GEAR, SEC DRIVE BEVEL (21T) (Item nr. 13) 924204 BEVEL GEAR, SEC DRIVE BEVEL (21T)  1 € 41,98 € 50,80
ON REQUEST
14 WASHER (Item nr. 14) W99305 WASHER  1 € 2,40 € 2,90
IN STOCK
15 NUT (Item nr. 15) N33802 NUT  1 € 5,04 € 6,10
IN STOCK
16 SPRING RETURN (Item nr. 16) 925673 SPRING RETURN  1 € 6,36 € 7,70
ON REQUEST
17 CONNECTING SHAFT SEAT (Item nr. 17) 926163 CONNECTING SHAFT SEAT  1 € 62,23 € 75,30
IN STOCK
18 SHAFT, PROPELLER (Item nr. 18) 925345 SHAFT, PROPELLER  1 € 44,38 € 53,70
IN STOCK
19 BOLT, MUF BODY SUPPORT RH (Item nr. 19) S21007 BOLT, MUF BODY SUPPORT RH  11 € 2,40 € 2,90
IN STOCK
11A SHIM, SEC. DRIVEN SHAFT ?25X?34X0.1t (Item nr. 11A) W99510 SHIM, SEC. DRIVEN SHAFT ?25X?34X0.1t  1 € 2,40 € 2,90
IN STOCK
11 SHIM, SEC. DRIVEN SHAFT ?25X?34X0.05t (Item nr. 11) W99509 SHIM, SEC. DRIVEN SHAFT ?25X?34X0.05t  1 € 2,40 € 2,90
IN STOCK
02 SHAFT,SEC DRIVEN OUTPUT REAR (Item nr. 02) 924205 SHAFT,SEC DRIVEN OUTPUT REAR  1 € 44,55 € 53,90
IN STOCK
03 UNIVERSAL JOINT ASSY. (Item nr. 03) 926166 UNIVERSAL JOINT ASSY.  1 € 226,86 € 274,50
IN STOCK
03.1 GREASE NIPPLE (Item nr. 03-1) 925494 GREASE NIPPLE  2 € 2,40 € 2,90
IN STOCK
04.1 GREASE NIPPLE (Item nr. 04-1) 925494 GREASE NIPPLE  1 € 2,40 € 2,90
IN STOCK
04 UNIVERSAL JOINT ASSY. (Item nr. 04) 925472 UNIVERSAL JOINT ASSY.  1 € 138,10 € 167,10
IN STOCK
05 BRG. SEC DRIVEN GEAR, MDL (Item nr. 05) 924214 BRG. SEC DRIVEN GEAR, MDL  1 € 43,22 € 52,30
IN STOCK
06 BRG. SEC DRIVEN OUTPUT SFT FR (Item nr. 06) 924228 BRG. SEC DRIVEN OUTPUT SFT FR  3 € 25,70 € 31,10
IN STOCK
07 OIL SEAL, DRIVEN SFT, FR 34x52x9/14 (Item nr. 07) 924229 OIL SEAL, DRIVEN SFT, FR 34x52x9/14  2 € 17,60 € 21,30
IN STOCK
08 WASHER (Item nr. 08) W99826 WASHER  2 € 2,89 € 3,50
IN STOCK
09 YOKE, FR DRIVE OUTPUT (Item nr. 09) D9900017 YOKE, FR DRIVE OUTPUT  1 € 65,04 € 78,70
IN STOCK
10 NUT, HEX HEAD (Item nr. 10) N33804 NUT, HEX HEAD  2 € 8,51 € 10,30
IN STOCK
20 SPRING RETURN (Item nr. 20) 925673 SPRING RETURN  1 € 6,36 € 7,70
ON REQUEST
