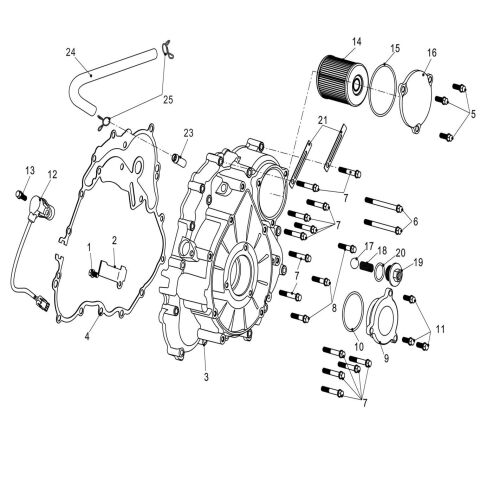

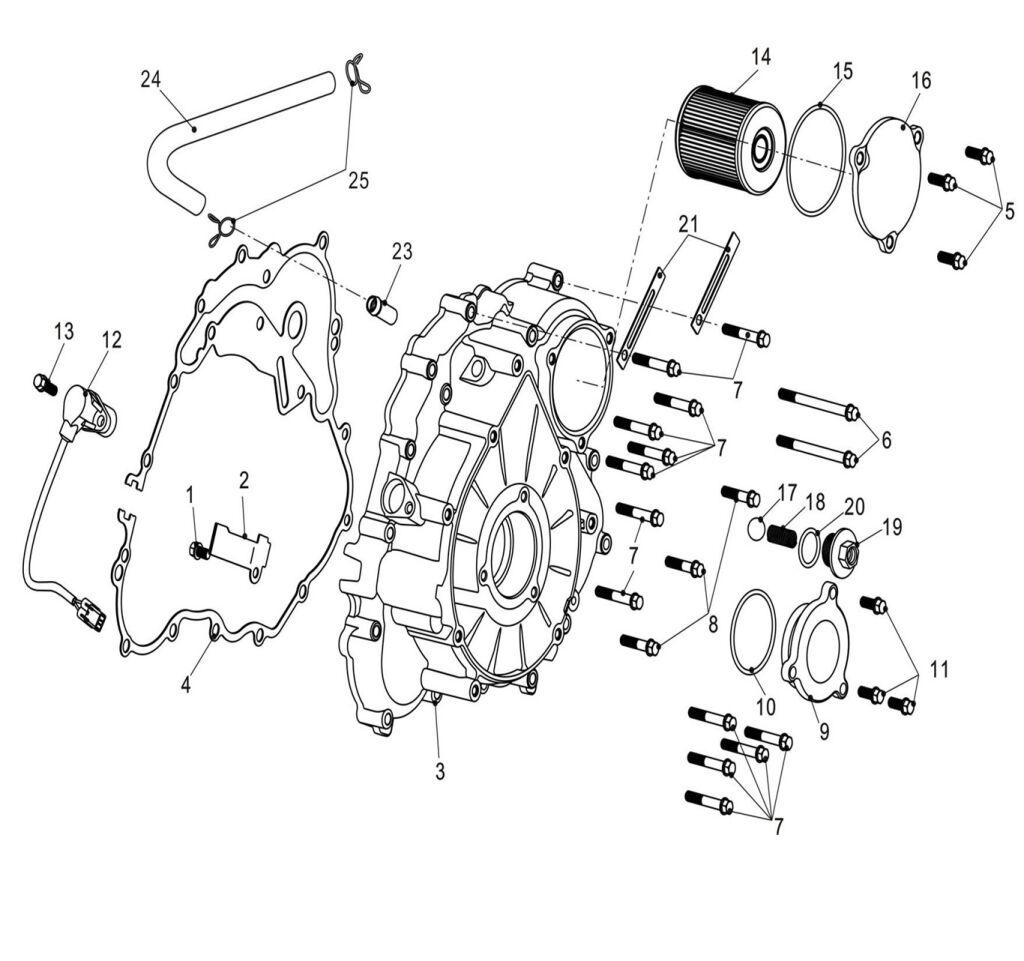

LEFT CRANKCASE COVER

LINHAI
Manufacturer: LINHAI
Product Code: LINHAI_5_139_570_PROMAX_E4
Select MODEL:
570 PROMAX E5 570 PROMAX E5
Item nr. Pic. Part nr. Description Count in the table Price for 1 pc Availability
1 11600 BOLT M6X10  1 € 2,40 € 2,90
ON REQUEST
15 O-RING (Item nr. 15) 38061 O-RING  1 € 2,40 € 2,90
ON THE WAY
16 CAP, OIL FILTER (Item nr. 16) 38147 CAP, OIL FILTER  1 € 16,94 € 20,50
IN STOCK
17 STEEL BALL (Item nr. 17) 11607 STEEL BALL  1 € 2,40 € 2,90
IN STOCK
18 SPRING, RELIEF VALVE? (Item nr. 18) 38092 SPRING, RELIEF VALVE?  1 € 2,40 € 2,90
IN STOCK
19 38093 SCREW PLUG , DECOMPRESSOR  1 € 5,21 € 6,30
ON REQUEST
20 O-RING 19x2.5 (Item nr. 20) 38094 O-RING 19x2.5  1 € 2,40 € 2,90
IN STOCK
21 35247 CABLE CLAMP  2 € 3,22 € 3,90
ON REQUEST
22 38150 OIL COOLING STENTS（NEW MODEL）  1
ON REQUEST
Detail
23 JOINT, BREATHER HOSE (Item nr. 23) 35219 JOINT, BREATHER HOSE  1 € 4,13 € 5
IN STOCK
24 35220a BREATHER HOSE  1 € 3,55 € 4,30
ON REQUEST
14 FILTER, ENGINE OIL - LINHAI 565,570 (Item nr. 14) 38091 FILTER, ENGINE OIL - LINHAI 565,570  1 € 8,02 € 9,70
IN STOCK
13 BOLT M6X16 (Item nr. 13) 11589 BOLT M6X16  1 € 2,40 € 2,90
IN STOCK
12 RPM SENSOR (Item nr. 12) 38090 RPM SENSOR  1 € 40,74 € 49,30
IN STOCK
2 38087 PLATE  1 € 2,40 € 2,90
ON REQUEST
3 COVER, LEFT CRANKCASE (Item nr. 3) 38088 COVER, LEFT CRANKCASE  1 € 72,48 € 87,70
IN STOCK
4 GASKET, LEFT CRANKCASE COVER (Item nr. 4) 38089 GASKET, LEFT CRANKCASE COVER  1 € 6,61 € 8
IN STOCK
5 11591 BOLT M6x12  3 € 2,40 € 2,90
ON REQUEST
6 11602 BOLT M6X75  2 € 2,40 € 2,90
ON REQUEST
7 11603 BOLT M6X40  13 € 2,40 € 2,90
ON REQUEST
8 11604 BOLT M6X30  3 € 2,40 € 2,90
ON REQUEST
9 END CAP (Item nr. 9) 35537 END CAP  1 € 37,19 € 45
IN STOCK
10 O-RING 46.5X2.65 (Item nr. 10) 10039 O-RING 46.5X2.65  1 € 2,40 € 2,90
IN STOCK
11 R/B 11987 BOLT (Item nr. 11) 11596 R/B 11987 BOLT  3 € 2,40 € 2,90
IN STOCK
25 CLAMP A12 (Item nr. 25) 10845 CLAMP A12  2 € 2,40 € 2,90
IN STOCK
