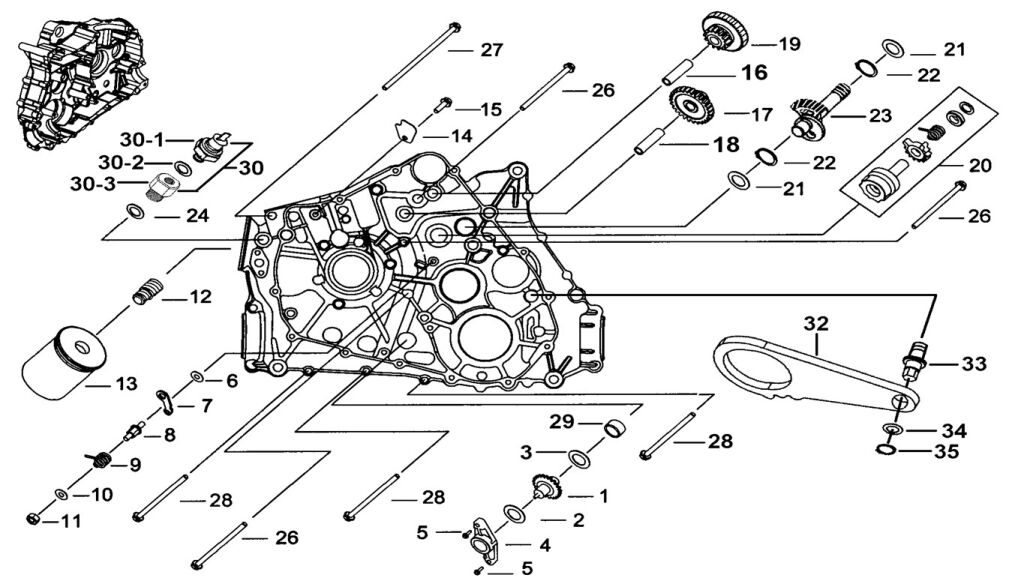

L CRANK CASE ( 1 )

TGB
Manufacturer: TGB
Product Code: TGB_1_111_FBH-JJDLE
Select MODEL:
BLADE 600LTX MAX E5
Item nr. Pic. Part nr. Description Count in the table Price for 1 pc Availability
01 CHAIN WHEEL WATER PUMP. (Item nr. 01) D9900066 CHAIN WHEEL WATER PUMP.  1 € 40,91 € 49,50
IN STOCK
20 SHIFT CAMSHAFT COMP (Item nr. 20) 925690 SHIFT CAMSHAFT COMP  1 € 54,63 € 66,10
IN STOCK
21 WASHER (Item nr. 21) W99218 WASHER  2 € 2,40 € 2,90
ON THE WAY
22 "C" RING (Item nr. 22) R00703 "C" RING  2 € 2,40 € 2,90
ON THE WAY
23 SECONDARY DIAL POLE (Item nr. 23) 926164 SECONDARY DIAL POLE  1 € 23,64 € 28,60
IN STOCK
24 WASHER 14.2X 1.5 (Item nr. 24) W99433 WASHER 14.2X 1.5  1 € 2,40 € 2,90
IN STOCK
26 BOLT, FLANGEM6X74L (Item nr. 26) S24627 BOLT, FLANGEM6X74L  3 € 2,40 € 2,90
IN STOCK
27 S21812 BOLT, FLANGE M8X97.5L  1 € 2,31 € 2,80
ON REQUEST
28 BOLT, FLANGE 6X50 (Item nr. 28) S24602 BOLT, FLANGE 6X50  3 € 2,40 € 2,90
IN STOCK
29 BUSHING (Item nr. 29) 924739 BUSHING  1 € 2,40 € 2,90
IN STOCK
30 OIL PRESSURE SENSOR COMP. (Item nr. 30) 925826A OIL PRESSURE SENSOR COMP.  1 € 41,98 € 50,80
IN STOCK
30.1 925826 R/B 925826A OIL PRESSURE SENSOR  1 € 42,56 € 51,50
ON REQUEST
30.2 WASHER (Item nr. 30-2) W99020 WASHER  1 € 2,40 € 2,90
IN STOCK
30.3 BOLT M14-1.25X12L (Item nr. 30-3) S96201 BOLT M14-1.25X12L  1 € 21,98 € 26,60
ON REQUEST
32 GEAR STOPPER (Item nr. 32) 926161 GEAR STOPPER  1 € 35,29 € 42,70
IN STOCK
33 PIN, GEAR STOPPER (Item nr. 33) 925737 PIN, GEAR STOPPER  1 € 18,35 € 22,20
ON THE WAY
19 GEAR, STARTING IDLER (Item nr. 19) 926089 GEAR, STARTING IDLER  1 € 58,10 € 70,30
IN STOCK
18 PIN (NO.1 STARTING IDLER) (Item nr. 18) 924111 PIN (NO.1 STARTING IDLER)  1 € 3,22 € 3,90
IN STOCK
02 GASKET 14X32X1 (Item nr. 02) W99412 GASKET 14X32X1  1 € 2,40 € 2,90
IN STOCK
03 WASHER 12.3x22x1t (Item nr. 03) W99430 WASHER 12.3x22x1t  1 € 2,40 € 2,90
IN STOCK
04 RETAINER, WATER PUMP (Item nr. 04) 924393 RETAINER, WATER PUMP  1 € 28,84 € 34,90
IN STOCK
05 SCREW, SOCKET HEAD M6X25 (Item nr. 05) S70602 SCREW, SOCKET HEAD M6X25  2 € 2,40 € 2,90
IN STOCK
06 GASKET (Item nr. 06) W99616 GASKET  1 € 2,40 € 2,90
ON REQUEST
07 STOPPER, GEAR SHAFT CAM (Item nr. 07) 924231 STOPPER, GEAR SHAFT CAM  1 € 4,13 € 5
ON REQUEST
08 SET SCREW ,GEAR CAM STOP DOG (Item nr. 08) 924233 SET SCREW ,GEAR CAM STOP DOG  1 € 2,40 € 2,90
ON REQUEST
09 SPRING (Item nr. 09) 924232 SPRING  1 € 2,40 € 2,90
IN STOCK
10 WASHER, SPRING ABATEMENT (Item nr. 10) W99617 WASHER, SPRING ABATEMENT  1 € 2,40 € 2,90
IN STOCK
11 NUT, FLANGE 6mm (Item nr. 11) N10601 NUT, FLANGE 6mm  1 € 2,40 € 2,90
IN STOCK
12 STUD, OIL FILTER (Item nr. 12) 924374 STUD, OIL FILTER  1 € 5,21 € 6,30
ON REQUEST
13 ENGINE OIL FILTER - TGB 425,525,550,600,600LTX (Item nr. 13) 924153 ENGINE OIL FILTER - TGB 425,525,550,600,600LTX  1 € 21,32 € 25,80
IN STOCK
34 WASHER (Item nr. 34) W99218 WASHER  1 € 2,40 € 2,90
ON THE WAY
14 PLATE, OIL GUIDE (Item nr. 14) 924048 PLATE, OIL GUIDE  1 € 2,40 € 2,90
IN STOCK
15 BOLT, FLANGE 6X12 (Item nr. 15) S24604 BOLT, FLANGE 6X12  1 € 2,40 € 2,90
IN STOCK
16 PIN (NO.2 STARTING IDLER) (Item nr. 16) 924112 PIN (NO.2 STARTING IDLER)  1 € 5,54 € 6,70
IN STOCK
17 GEAR (Item nr. 17) 924110 GEAR  1 € 32,56 € 39,40
IN STOCK
35 "C" RING (Item nr. 35) R00703 "C" RING  1 € 2,40 € 2,90
ON THE WAY
