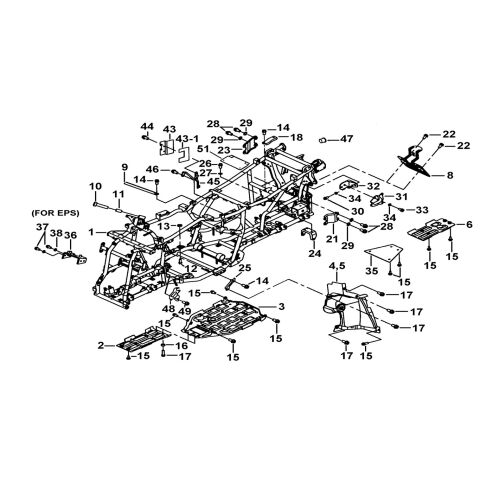

FRAME

TGB
Manufacturer: TGB
Product Code: TGB_2_228_FBH-JJDLE
Select MODEL:
BLADE 600LTX MAX E5
Item nr. Pic. Part nr. Description Count in the table Price for 1 pc Availability
51 514931 SEAT STEADY  1 € 24,79 € 30
ON REQUEST
35 511370 PROTECTOR COVER  1 € 25,70 € 31,10
ON REQUEST
37 BOLT, FLANGE (Item nr. 37) S20814 BOLT, FLANGE

FOR W/EPS

4 € 2,40 € 2,90
IN STOCK
47 PLUG CAP (Item nr. 47) 512072 PLUG CAP  2 € 2,40 € 2,90
ON THE WAY
46 BOLT, FLANGE M8X16 (Item nr. 46) S20817 BOLT, FLANGE M8X16  1 € 2,40 € 2,90
IN STOCK
45 BRACKET (Item nr. 45) 519808 BRACKET  1 € 16,53 € 20
IN STOCK
44 BOLT, FLANGE M6X16 (Item nr. 44) GA555SC05 BOLT, FLANGE M6X16  1 € 2,40 € 2,90
IN STOCK
14 BOLT, FLANGE M6X16 (Item nr. 14) GA555SC05 BOLT, FLANGE M6X16  4 € 2,40 € 2,90
IN STOCK
34 SPRING WASHER (Item nr. 34) GA556WS04 SPRING WASHER

FOR WHEEL BRAKE

4 € 2,40 € 2,90
IN STOCK
33 BOLT (Item nr. 33) S21809 BOLT

FOR WHEEL BRAKE

2 € 2,40 € 2,90
IN STOCK
32 517999 BRACKET

FOR WHEEL BRAKE

1 € 9,50 € 11,50
ON REQUEST
31 517954 MOTOR BRACKET

FOR WHEEL BRAKE

1 € 8,18 € 9,90
ON REQUEST
30 BOLT, SOCKET M8X20L (Item nr. 30) S72805 BOLT, SOCKET M8X20L

FOR WHEEL BRAKE

2 € 2,40 € 2,90
IN STOCK
29 SPRING WASHER 10X18X2,5 (Item nr. 29) GA556WS06 SPRING WASHER 10X18X2,5

FOR WHEEL BRAKE

4 € 2,40 € 2,90
IN STOCK
28 BOLT M10X20 (Item nr. 28) S21008 BOLT M10X20

OPTION

4 € 2,40 € 2,90
IN STOCK
36 511369 BRACKET, EPS

FOR W/EPS

1 € 34,79 € 42,10
ON REQUEST
43.1 511371 HEAT INSULATION  1 € 1,98 € 2,40
ON REQUEST
43 511368A PROTECTOR(INCLUDING HEAT INSULATION)  1 € 14,96 € 18,10
ON REQUEST
25 517969 FRONT INTERNAL FENDER  1 € 5,62 € 6,80
ON REQUEST
11 SPRING, STEERING LOCK (Item nr. 11) 511946 SPRING, STEERING LOCK  1 € 2,40 € 2,90
IN STOCK
10 PIN, STEERING LOCK (Item nr. 10) 511953 PIN, STEERING LOCK  1 € 7,93 € 9,60
ON REQUEST
09 SEAT STEADY, FRONT (Item nr. 09) 511950 SEAT STEADY, FRONT  1 € 5,95 € 7,20
IN STOCK
08 BRACKET ASSY., NUMBER-PLATE (Item nr. 08) 511991 BRACKET ASSY., NUMBER-PLATE  1 € 29,01 € 35,10
IN STOCK
06 511986-M1 PROTECTOR, REAR (PLASTIC)

OPTION

1 € 15,21 € 18,40
ON REQUEST
05 511994 FRONT INTERNAL FENDER, RH.  1 € 40,58 € 49,10
IN STOCK
04 FRONT INTERNAL FENDER, LH (Item nr. 04) 511301 FRONT INTERNAL FENDER, LH  1 € 40,58 € 49,10
ON REQUEST
03 519807 REAR BOTTOM PLATE

OPTION

1 € 30 € 36,30
ON REQUEST
02 PROTECTOR, FRONT (Item nr. 02) 511394 PROTECTOR, FRONT

OPTION

1 € 22,15 € 26,80
ON REQUEST
12 BOLT, FLANGE (Item nr. 12) S20004 BOLT, FLANGE  1 € 2,40 € 2,90
IN STOCK
13 NUT (Item nr. 13) GA501NT01 NUT  1 € 2,40 € 2,90
IN STOCK
24 REAR DIFFERENTIAL BRACKET(UPPER) (Item nr. 24) 517972 REAR DIFFERENTIAL BRACKET(UPPER)

FOR WHEEL BRAKE

1 € 17,93 € 21,70
IN STOCK
38 SPRING WASHER (Item nr. 38) GA556WS04 SPRING WASHER

FOR W/EPS

4 € 2,40 € 2,90
IN STOCK
27 SPRING WASHER (Item nr. 27) GA556WS04 SPRING WASHER

OPTION

3 € 2,40 € 2,90
IN STOCK
23 REAR DIFFERENTIAL BRACKET, RH. (Item nr. 23) 517953 REAR DIFFERENTIAL BRACKET, RH.

FOR WHEEL BRAKE

1 € 7,69 € 9,30
ON THE WAY
21 REAR DIFFERENTIAL BRACKET, LH. (Item nr. 21) 517948 REAR DIFFERENTIAL BRACKET, LH.

FOR WHEEL BRAKE

1 € 18,93 € 22,90
ON THE WAY
18 511318 BRACKET  1 € 3,97 € 4,80
ON REQUEST
17 BOLT, FLANGE (Item nr. 17) S07601 BOLT, FLANGE  10 € 2,40 € 2,90
IN STOCK
16 SPACER (Item nr. 16) GA554BS02 SPACER

OPTION

2 € 2,40 € 2,90
IN STOCK
15 BOLT M6X16L (Item nr. 15) S25602 BOLT M6X16L  16 € 2,40 € 2,90
IN STOCK
01 519836 MAIN FRAME

FOR W/EPS

1 € 1 241,32 € 1 502
ON THE WAY
49 BOLT (Item nr. 49) S21809 BOLT

FOR EPS

1 € 2,40 € 2,90
IN STOCK
26 BOLT (Item nr. 26) S21809 BOLT

FOR WHEEL BRAKE

3 € 2,40 € 2,90
IN STOCK
22 BOLT (Item nr. 22) S21809 BOLT  2 € 2,40 € 2,90
IN STOCK
