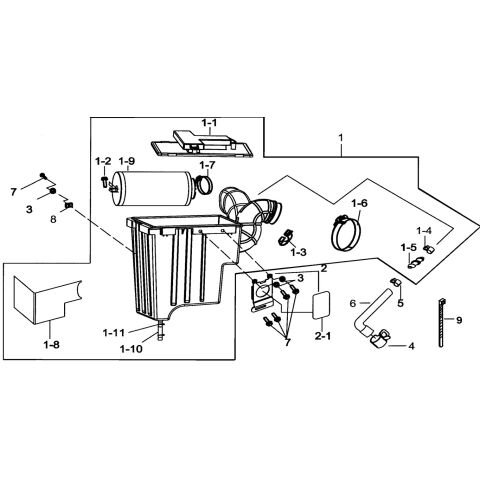

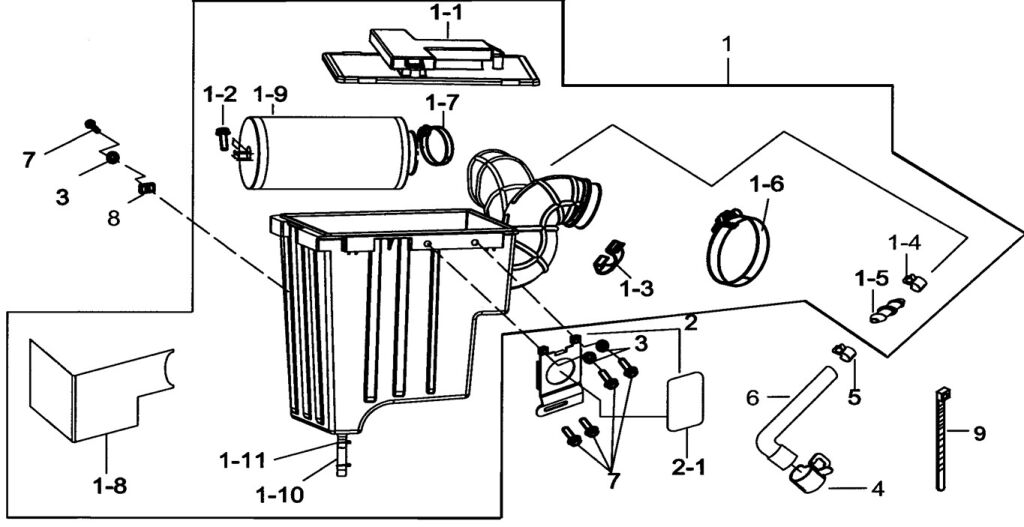

AIR CLEANER ASSY.

TGB
Manufacturer: TGB
Product Code: TGB_3_117_FBH-JJDLE
Select MODEL:
BLADE 600LTX MAX E5
Item nr. Pic. Part nr. Description Count in the table Price for 1 pc Availability
01 926053A AIR CLEANER ASSY.  1 € 150,91 € 182,60
ON REQUEST
02 BRACKET, AIR CLEANER (Item nr. 02) 924691A BRACKET, AIR CLEANER  1 € 12,98 € 15,70
IN STOCK
02.1 924743 HEAT INSULATION  1 € 4,30 € 5,20
ON REQUEST
03 WASHER (Item nr. 03) W99605 WASHER  3 € 2,40 € 2,90
IN STOCK
04 CLIP (Item nr. 04) R40501 CLIP  1 € 2,15 € 2,60
IN STOCK
05 CLIP  (Item nr. 05) R40201 CLIP   1 € 2,40 € 2,90
IN STOCK
06 TWO INTAKE DUCTS LH. (Item nr. 06) 924692 TWO INTAKE DUCTS LH.  1 € 4,79 € 5,80
IN STOCK
07 SCREW, FLANGE, HEX HEAD (Item nr. 07) S20603 SCREW, FLANGE, HEX HEAD  5 € 2,40 € 2,90
IN STOCK
08 NUT, SPECIAL (Item nr. 08) 924684 NUT, SPECIAL  1 € 3,97 € 4,80
IN STOCK
01.9 FILTER (Item nr. 01-9) 925041 FILTER  1 € 47,36 € 57,30
IN STOCK
01.8 925281 HEAT INSULATION  1 € 47,85 € 57,90
ON REQUEST
01.7 R66802 CLIP  1 € 7,19 € 8,70
ON REQUEST
01.1 COVER SET, AIR CLEANER (Item nr. 01-1) 925003A COVER SET, AIR CLEANER  1 € 17,60 € 21,30
ON REQUEST
01.10 925121 TUBE  1 € 8,76 € 10,60
ON REQUEST
01.11 CLAMP (Item nr. 01-11) R36401 CLAMP  1 € 2,40 € 2,90
IN STOCK
01.2 GA557SC12 SCREW,PAN HEAD M5X10  1 € 2,40 € 2,90
ON REQUEST
01.3 "S" CLIP (Item nr. 01-3) 923278 "S" CLIP  4 € 3,22 € 3,90
IN STOCK
01.4 R40101 HOSE CLAMP BATTEN  1 € 13,72 € 16,60
ON REQUEST
01.5 924733 TWO THIROUGH -HOLE  1 € 2,89 € 3,50
ON REQUEST
01.6 CLIP (Item nr. 01-6) 926120 CLIP  1 € 10,25 € 12,40
IN STOCK
09 CLAMP L200 (Item nr. 09) 518739 CLAMP L200  1 € 3,06 € 3,70
IN STOCK
